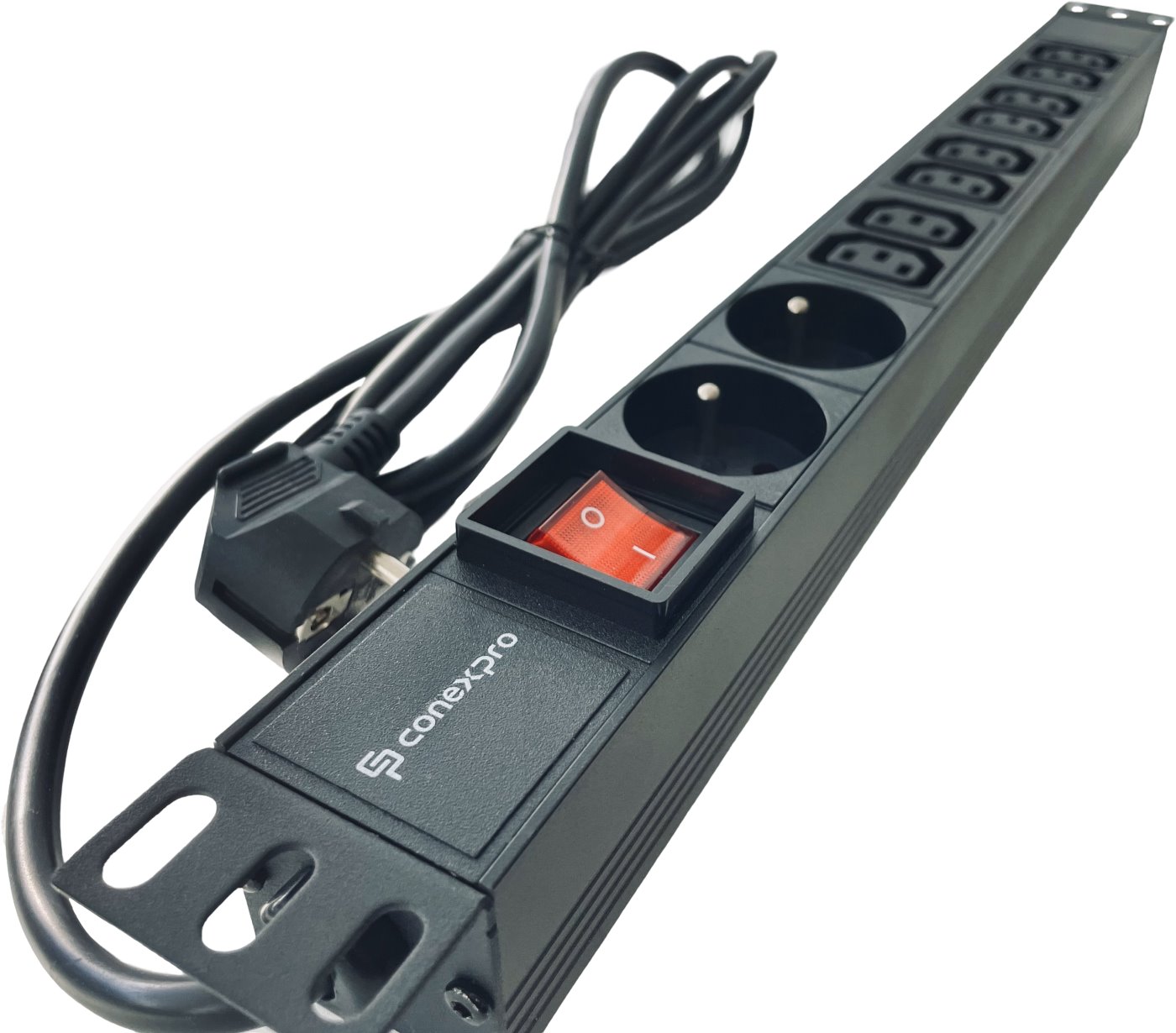

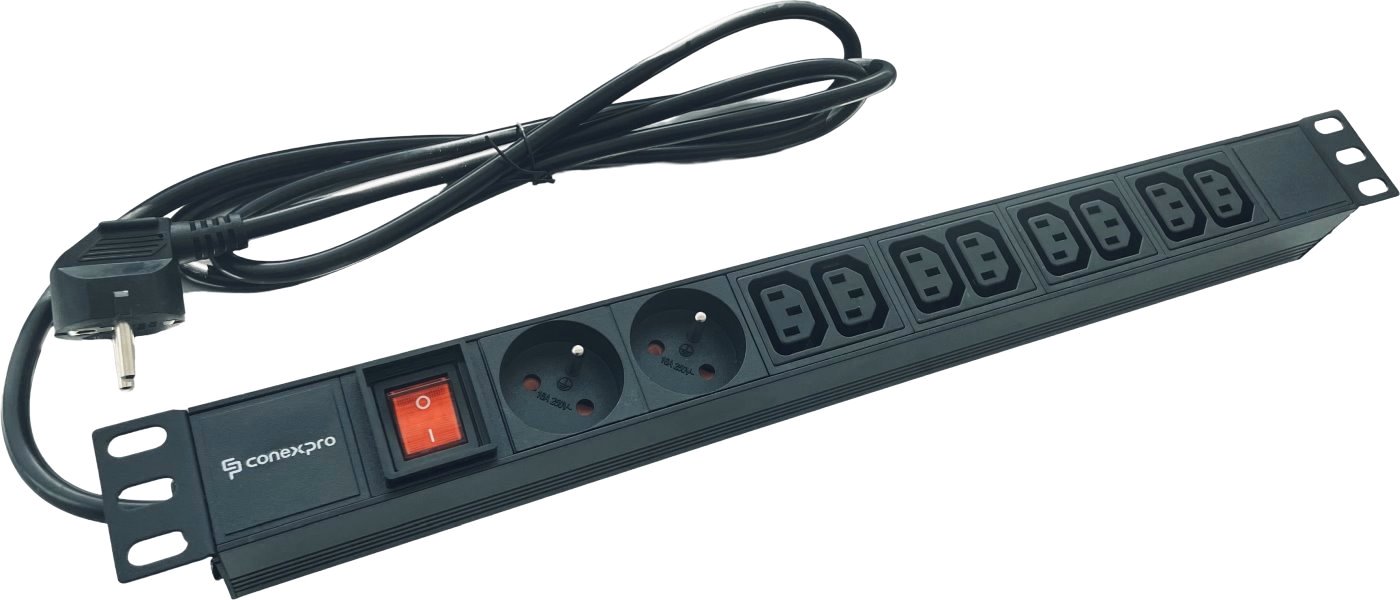

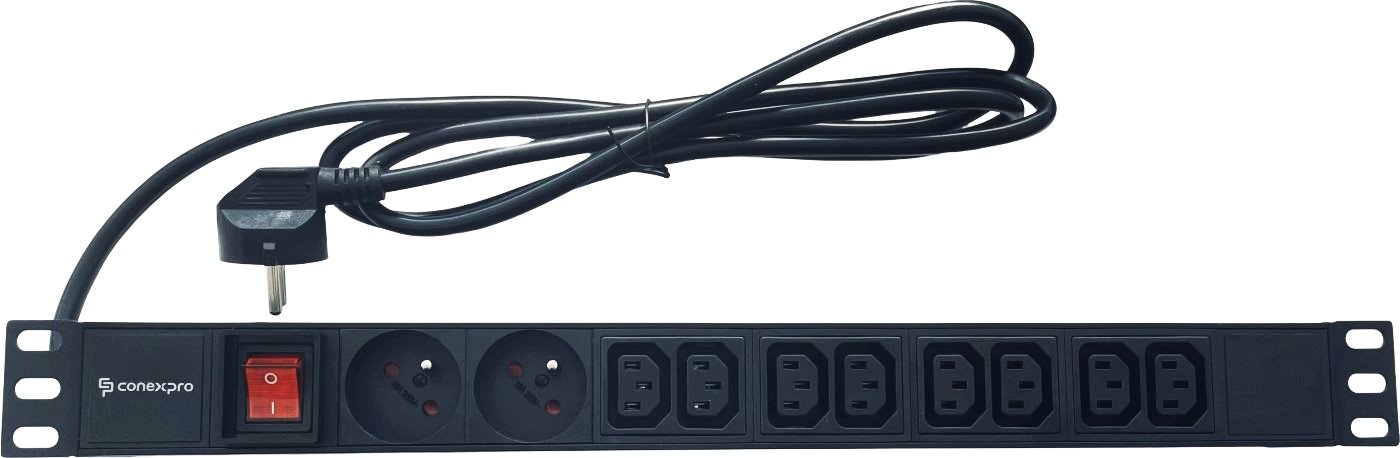

Conexpro 19" combined distribution panel 2x FR + 8x IEC C13, 16A, 1.4m, black

Conexpro 19" combined distribution panel 2x FR + 8x IEC C13, 16A, 1.4m, black
Combined distribution power panel intended for installation in standard 19" data cabinets with a height of 1U. It is equipped with 2x 230V sockets type FR and 8x 230V IEC C13 sockets, which allows the connection of various devices such as servers, switches, routers or other IT equipment.The panel has an aluminum body for better drainage heat and i ... More information
ManufacturerConexpro
PNPDU-2FR+8C13
EAN0710497560955

Product description

Combined distribution power panel intended for installation in standard 19" data cabinets with a height of 1U. It is equipped with 2x 230V sockets type FR and 8x 230V IEC C13 sockets, which allows the connection of various devices such as servers, switches, routers or other IT equipment.The panel has an aluminum body for better drainage heat and is equipped with a switch-off button for easy operation. A 1.4m long power cable with a common termination is brought out from the side of the panel, making it easy to connect to the mains.Maximum load of the panel is 16A, which provides sufficient capacity for powering devices in data centers, server rooms, or office spaces.

Do you have a question or comment about this product?

Technical parameters

Connectors and interfaces

End of cableE/F (standard)
Quantity of sockets2
Quantity of sockets (IEC C13)8

Power

Maximum current [A]16,4

Physical characteristics

Size19"
Cable length [m]1,4
Height [mm]44
Depth [mm]50
Width [mm]483
ColorBlack
