Conexpro 3D fusion splice machine AI-30

Conexpro 3D fusion splice machine AI-30

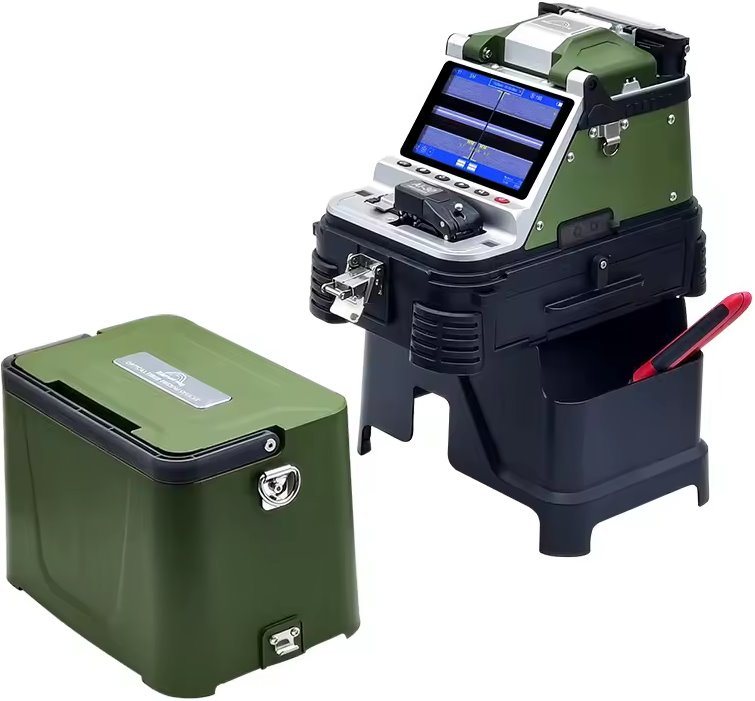

Highly precise 3D optical fiber fusion splicer with an integrated fiber cleaver, OPM and VFL, and a stand that can also be used as a stool. The splicer features Bluetooth (settings, firmware upgrade, statistics), a storage compartment for fiber stripping pliers, and a 7800mAh battery that allows up to 240 fiber splices on a single charge. It suppo ... More information
ManufacturerConexpro
PNAI-30
EAN0710497563611

Product description

Highly precise 3D optical fiber fusion splicer with an integrated fiber cleaver, OPM and VFL, and a stand that can also be used as a stool. The splicer features Bluetooth (settings, firmware upgrade, statistics), a storage compartment for fiber stripping pliers, and a 7800mAh battery that allows up to 240 fiber splices on a single charge. It supports splicing of Single Mode and Multi Mode fibers. Thanks to its metal body, it is highly durable. The high-quality electric cleaver requires no maintenance. The built-in optical power meter (OPM) and visual fault locator (VFL) are great features for verifying the correct functionality of the spliced fiber route.

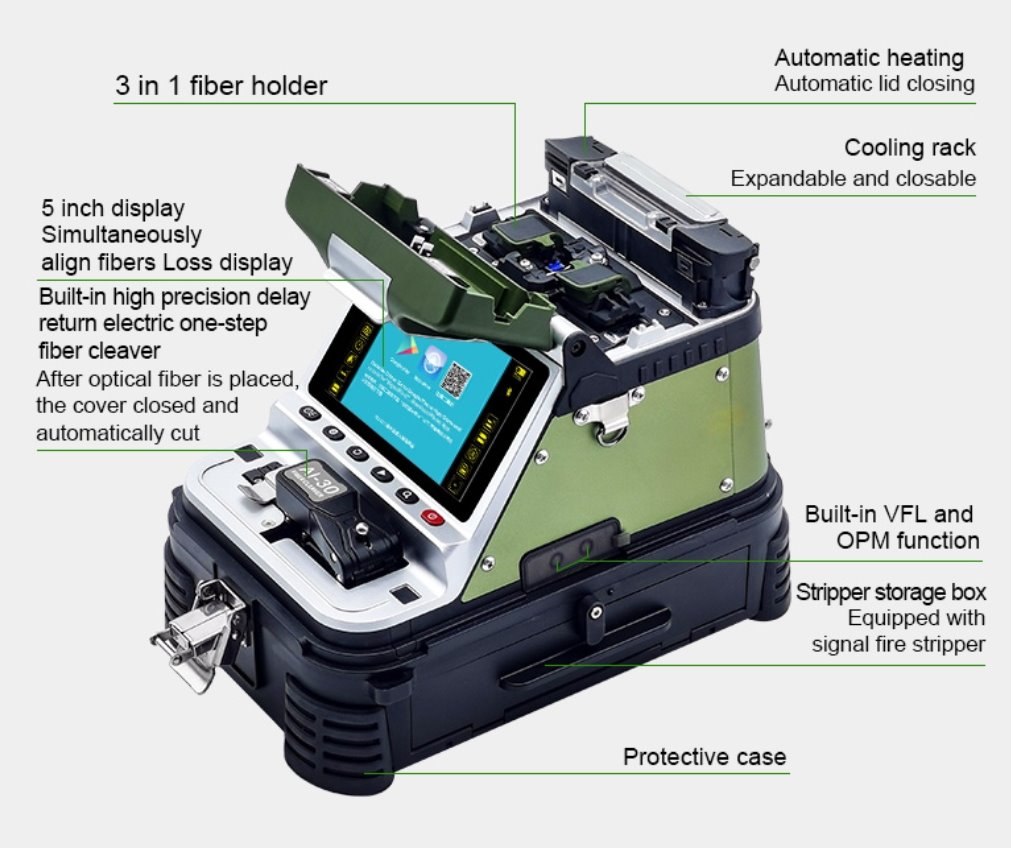

AI-30 splicer

Key Features

  • Compact design with an integrated fiber cleaver, OPM, and VFL
  • Metal body for high durability

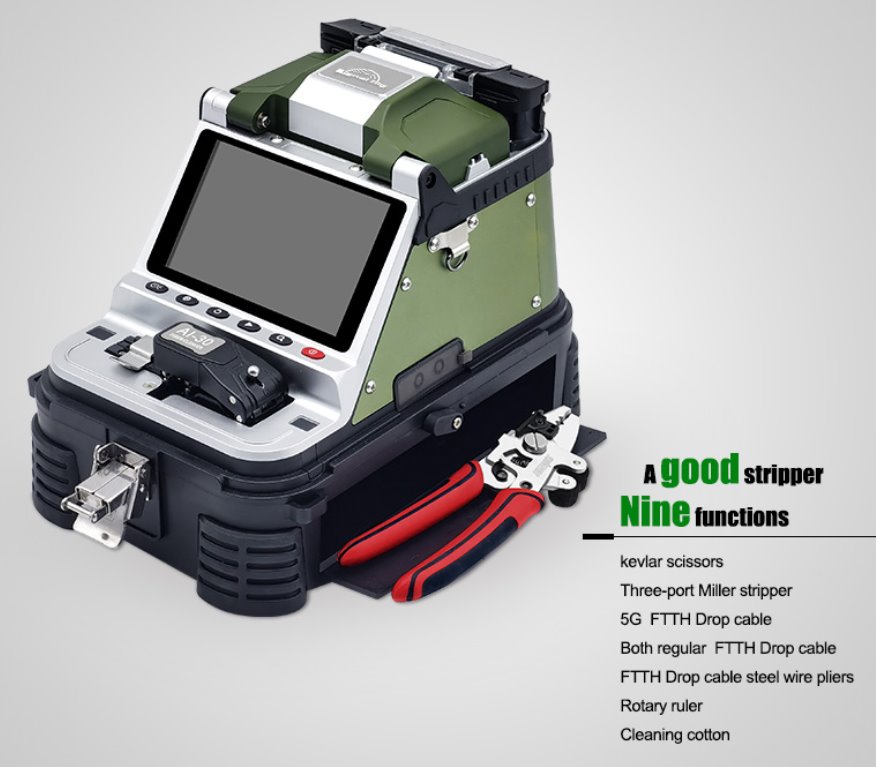

  • Storage compartment for fiber stripping pliers on the right side
  • Pairing with a mobile phone via Bluetooth

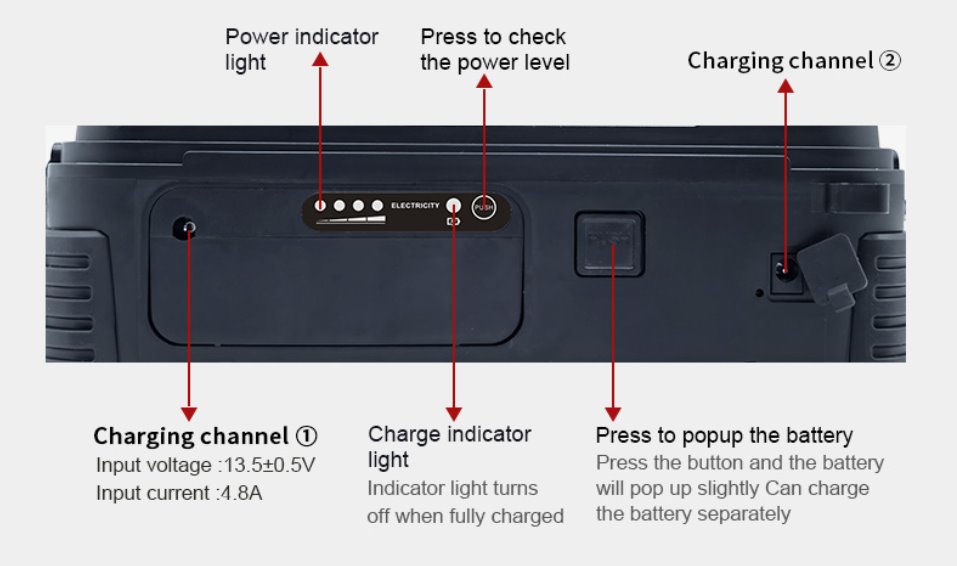

  • 7800 mAh battery allows up to 240 fiber splices (full charge in 3.5 hours)
  • Multi-language support
  • Capability to splice both Single Mode and Multi Mode optical fibers
  • Fiber alignment using 6 motors across all 3 axes
  • High-precision fiber alignment – 0.05µm

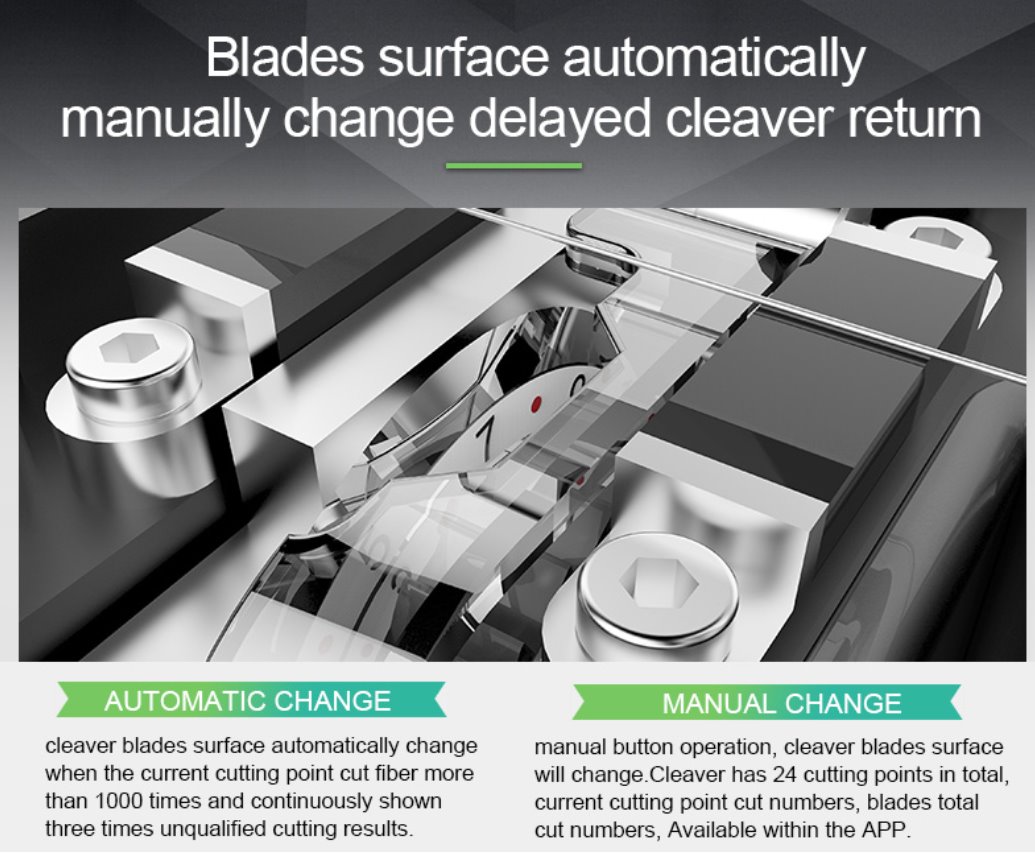

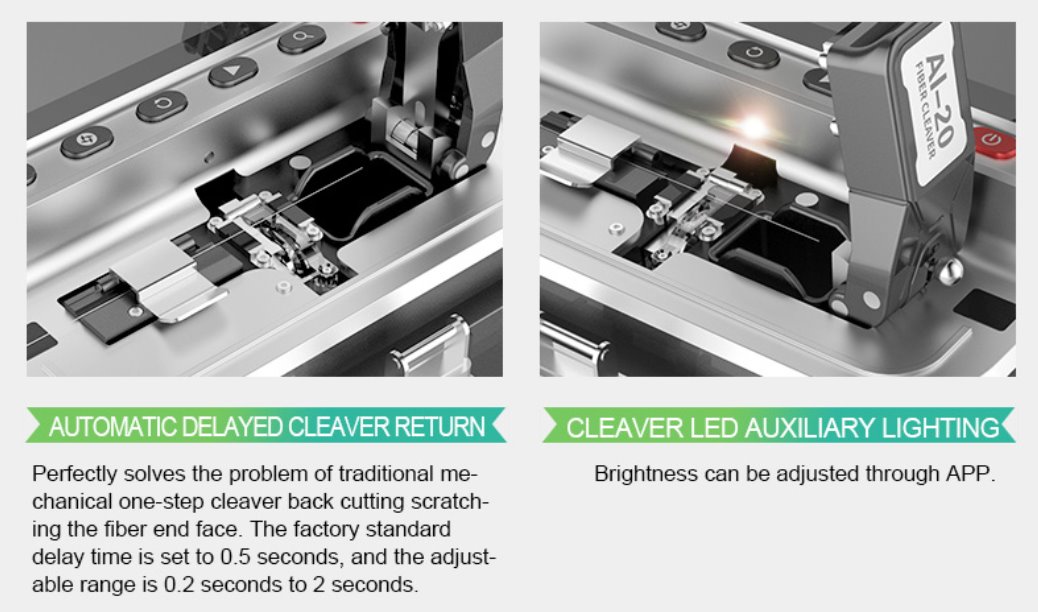

  • High-quality electric cleaver with no maintenance required

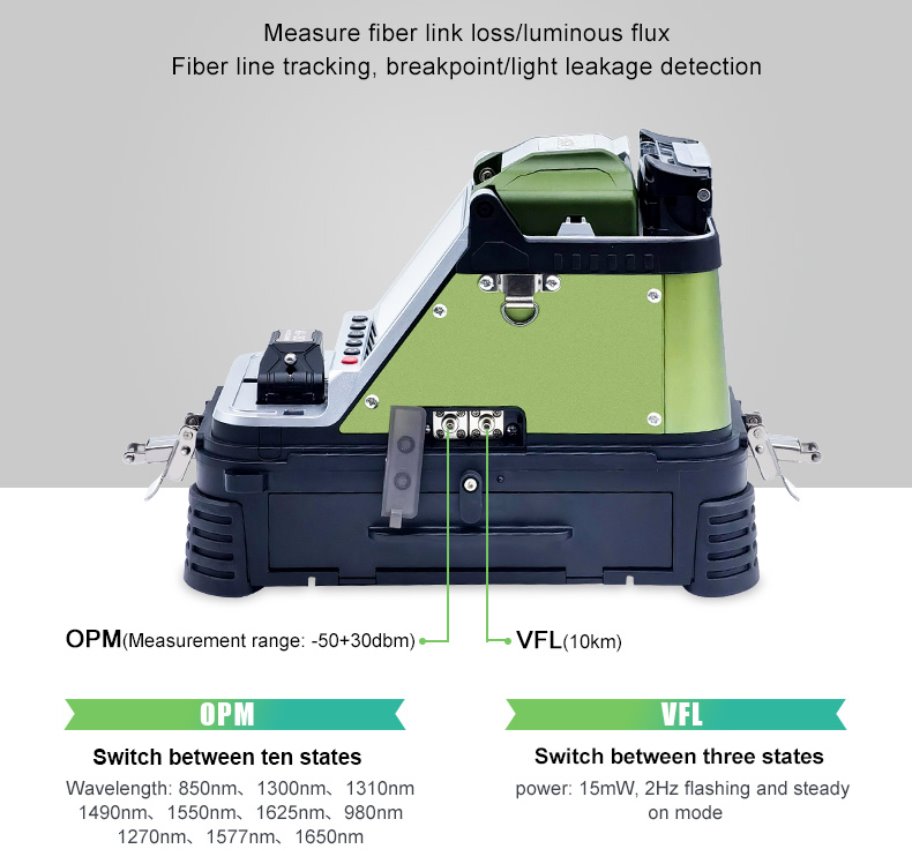

  • Built-in OPM and VFL for measurement and fault localization
  • 5" color TFT display

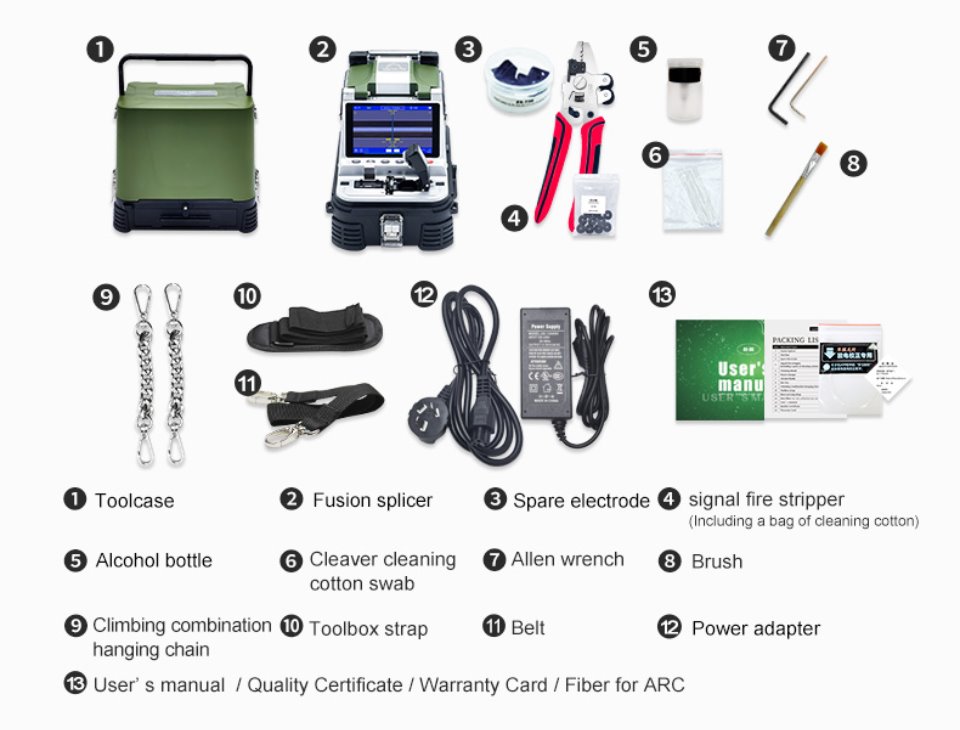

Package Contents

  • AI-30 Optical Fiber Fusion Splicer
  • Power cable
  • Power adapter 13.5 V / 4.8 A
  • Orange cover / stool
  • Spare electrodes
  • Stripping pliers
  • Alcohol bottle
  • Hex keys
  • Brush
  • Shoulder strap
Do you have a question or comment about this product?

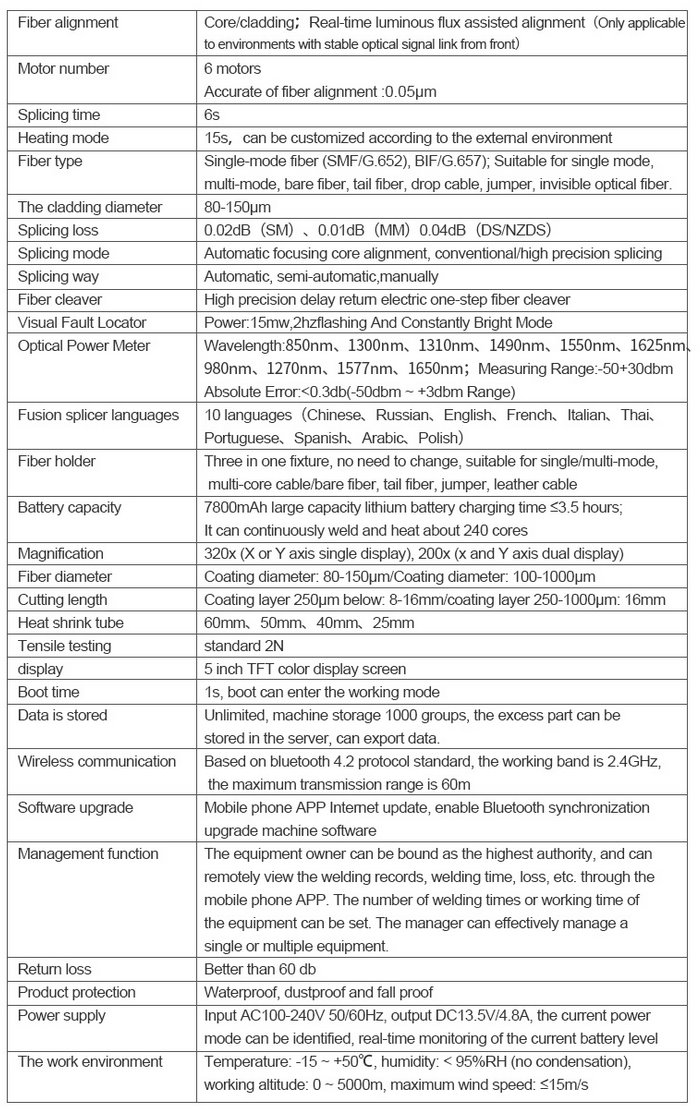

Technical parameters

Optics

Accurate of fiber alignment [µm]0,05


Display size ["]5

Connectors and interfaces

Other featuresBluetooth

Power

Battery capacity [mAh]7800
Power typeDC connector, Battery
Power via connector/terminal13.5V / 4.8A

Physical characteristics

Operating temperature [°C]-15 up to 50
Weight [g]3090
Width [mm]165
Height [mm]185
Depth [mm]255

Hardware

Motor quantity6
