Úvodní stranaBatteryLead-acid batteriesConexpro batery AGM 12V, 75Ah, lifetime 10 years, M6

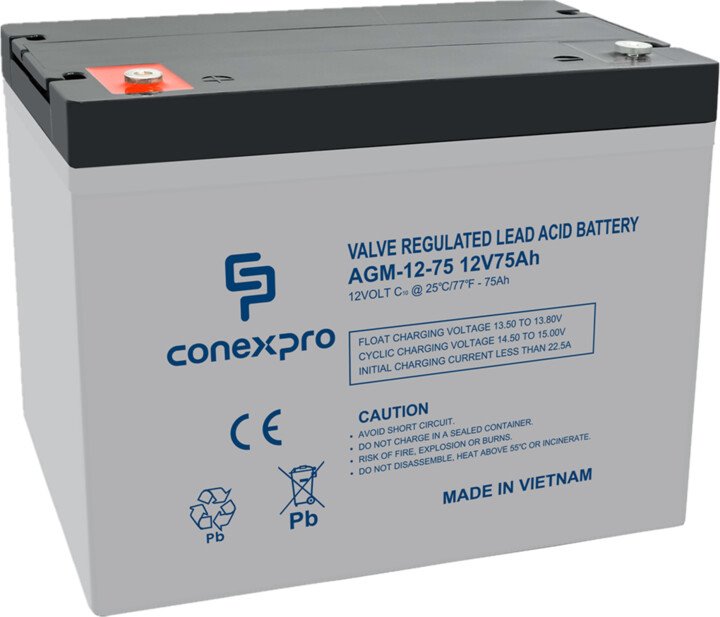

Conexpro batery AGM 12V, 75Ah, lifetime 10 years, M6

Conexpro lead-acid AGM battery with output voltage 12 V, capacity 75 Ah, 10-12year lifetime is equipped with two M6 connectors for connection to the device. The battery of this series is suitable for a whole range of applications, from deployment in compatible backup energy units to security technologies, IT systems or selected medical equipment. ... More information

ManufacturerConexpro

PNAGM-12-75

EAN8719845603773

Where to buy Ask a question

Product description Download2 Technical parameters

Product description

Conexpro lead-acid AGM battery with output voltage 12 V, capacity 75 Ah, 10-12year lifetime is equipped with two M6 connectors for connection to the device. The battery of this series is suitable for a whole range of applications, from deployment in compatible backup energy units to security technologies, IT systems or selected medical equipment. When placing the battery inside the UPS, we always recommend that you check the type and size of the battery in your existing UPS before ordering.

The modern General Purpose series battery works with advanced AGM technology (absorbent glass mat) using an electrolyte soaked in a non-woven glass fiber fabric. Such a battery offers high performance and is considerably resistant to cyclic loading (charging and discharging).

Key Features

Maintenance free article
Resistant to electrolyte leakage
Offers high performance
Low self-discharge
For a wide range of applications

Do you have a question or comment about this product?

Ask a question

Download

Datasheet Installation Guide

Technical parameters

Connectors and interfaces

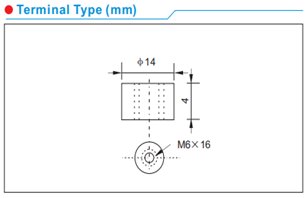

ConnectorsM6

Power

Battery capacity [Ah]75

Output Voltage [V]12

Physical characteristics

Battery typeLead-acid

Weight [kg]23,5

Depth [mm]169

Height [mm]215

Width [mm]260

General

Service life [years]10 up to 12
