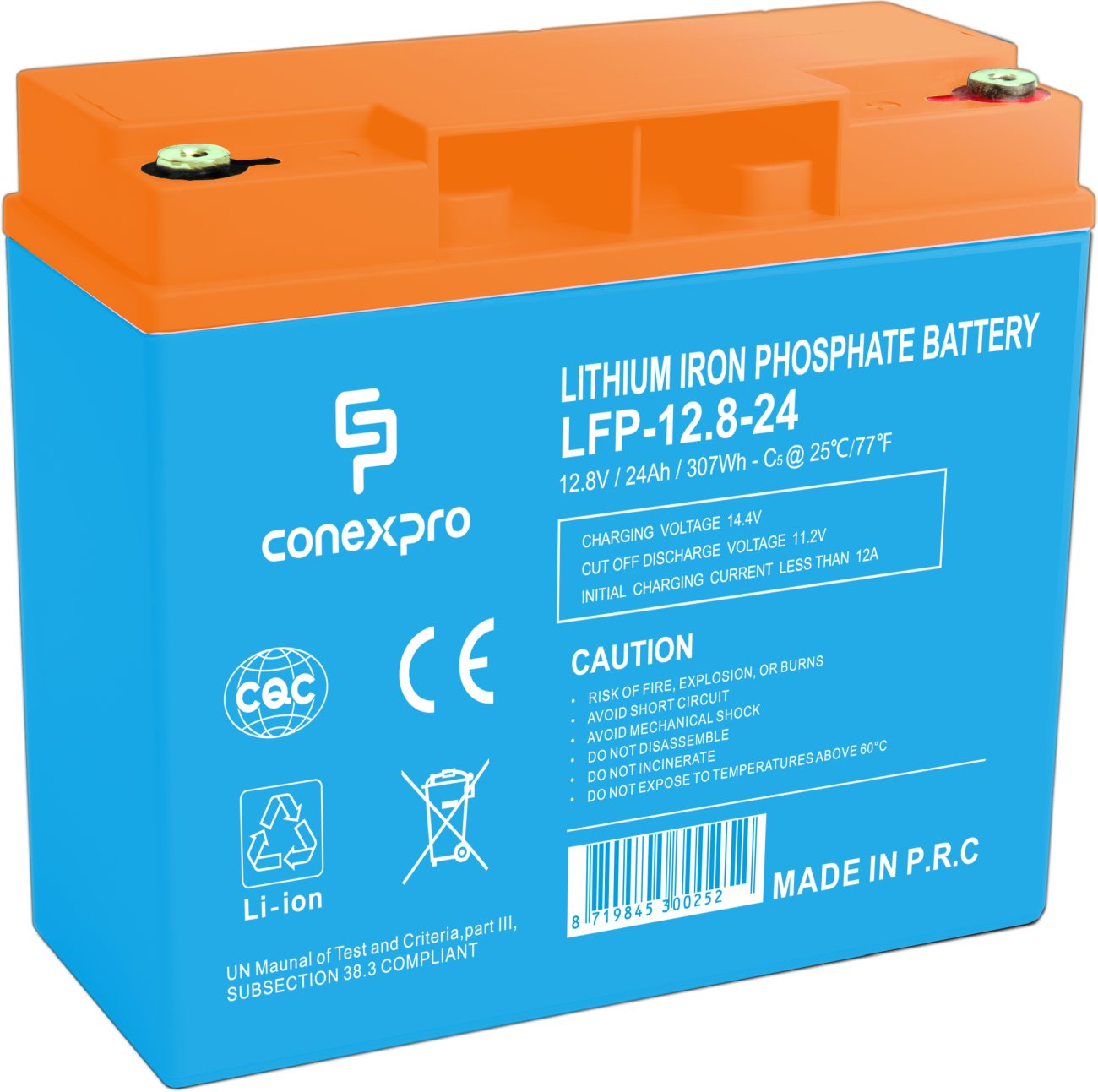

Conexpro battery LiFePO4, 12.8V, 24Ah, Smart BMS, Bluetooth

Conexpro battery LiFePO4, 12.8V, 24Ah, Smart BMS, Bluetooth
Conexpro brand LiFePO4 battery with output voltage 12.8 V, capacity 24 Ah (307 Wh) , up to 5x longer life than a lead-acid battery, two M5 connectors for connection to the device and an intelligent Battery Management System (BMS) for charge management and providing information using Bluetooth. The battery of this series is suitable for a wide rang ... More information
ManufacturerConexpro
PNLFP-12.8-24
EAN8719845300252

Product description

Conexpro brand LiFePO4 battery with output voltage 12.8 V, capacity 24 Ah (307 Wh) , up to 5x longer life than a lead-acid battery, two M5 connectors for connection to the device and an intelligent Battery Management System (BMS) for charge management and providing information using Bluetooth. The battery of this series is suitable for a wide range of applications, from deployment to drive ships and boats, a durable power source in caravans, yachts, island photovoltaic systems, electromobility or in low temperature environments.

Key Features

  • Up to 15x longer cycle life and 5x longer calendar life than lead battery
  • Greater capacity - provides up to 100% usable energy
  • 60% lighter than lead batteries
  • Ability to fully discharge at high speed
  • Low self-discharge, which is less than 2% of total capacity per month
  • Long cycle life - more than 3000 cycles to 100% deep discharge
  • Intelligent BMS with Bluetooth - charge management and provide key information
  • Environmentally friendly - does not contain any toxic substances or heavy metals

LiFePO4 technology

Lithium Iron Phosphate batteries offer excellent performance improvements compared to lead batteries. Due to extreme cycle endurance and lifetime, LiFePO4 batteries are an excellent long-term investment for your applications. Powerful, lightweight, safe and smart, lithium-iron-phosphate batteries are the future of energy storage that you can have now.

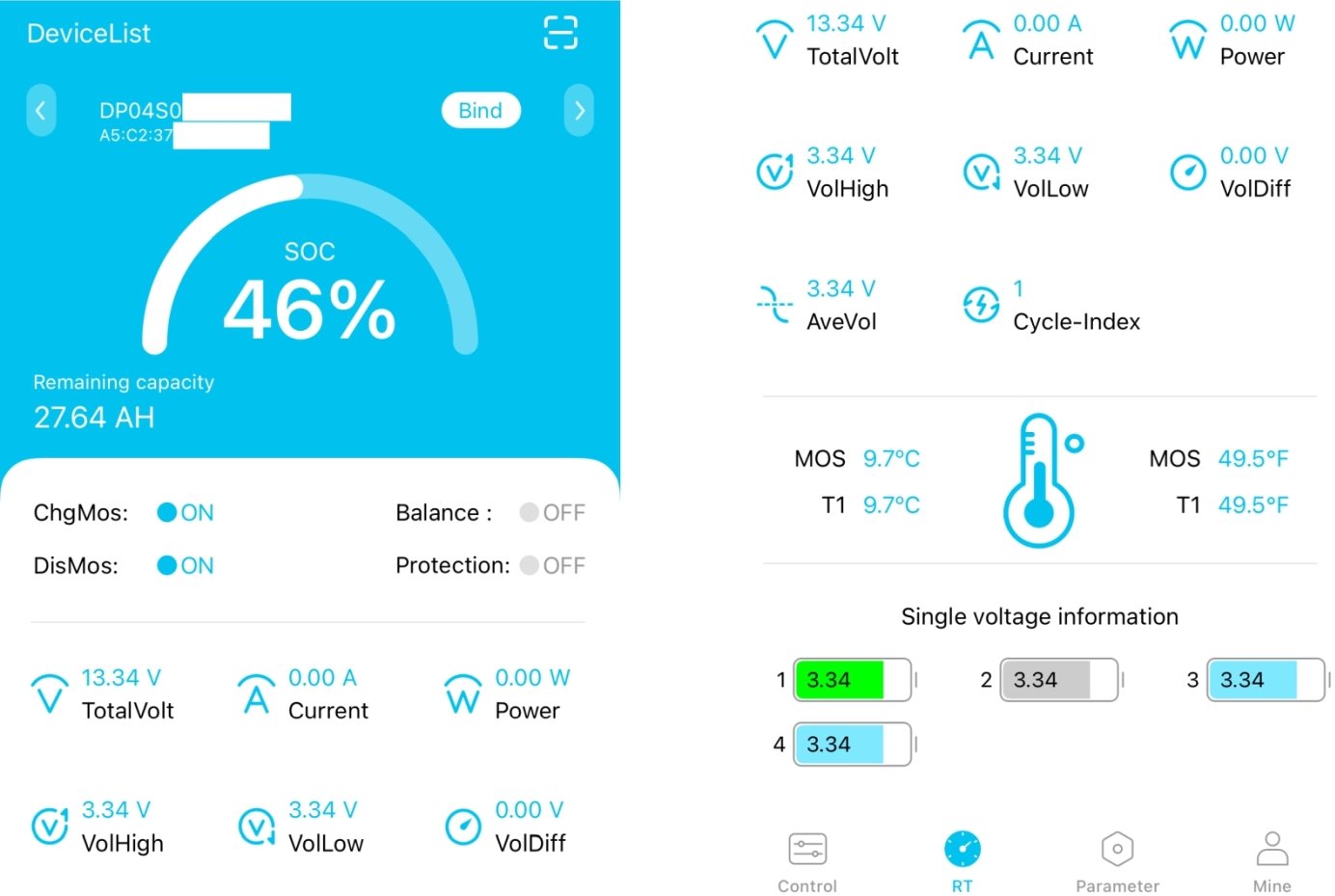

Integrated monitoring via Bluetooth 4.0

All important battery data is always available on your smartphone or tablet. The app displays real-time data when your smartphone is connected with the battery via Bluetooth. The battery can be balanced, calibrated, firmware updated, statistics, temperature, voltage, load and much more can be checked via management.

Conexpro LiFePO4 battery, Bluetooth
Do you have a question or comment about this product?

Download

Technical parameters

Connectors and interfaces

ConnectorsM5
Communication InterfaceBluetooth

Power

Battery capacity [Ah]24
Output Voltage [V]12,8
Max. charging current [A]12
Max. discharging current [A]30

Physical characteristics

Battery typeLiFePO4
Protection classIP65
Operating temperature [°C]-20 up to 60
Weight [kg]2,9
Depth [mm]77
Height [mm]167
Width [mm]181
