Conexpro FBOX2, FTTH terminal box for 2x SC simplex

Conexpro FBOX2, FTTH terminal box for 2x SC simplex
The optical FTTH socket from Conexpro is designed for terminating optical cables and supports the installation of 2x SC simplex / LC duplex adapters. The socket is made of plastic and includes an integrated optical splice tray with a comb for holding two splice protections. It is suitable for indoor use, wall mounting, and features compact dimensi ... More information
ManufacturerConexpro
PNFBOX2
EAN0710497561556

Product description

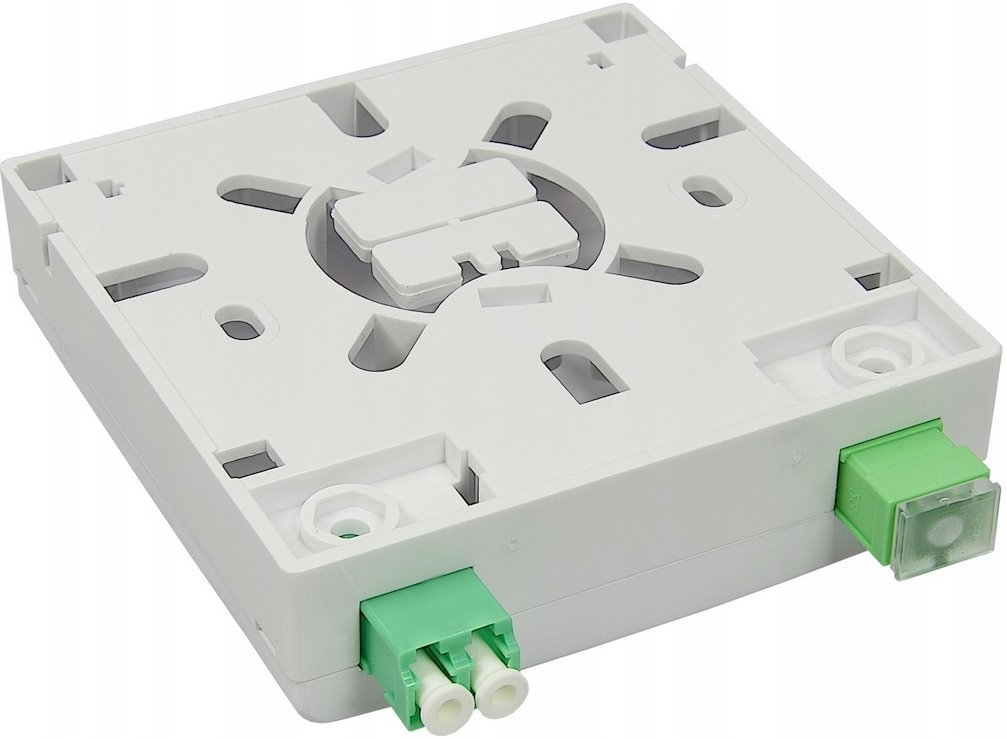

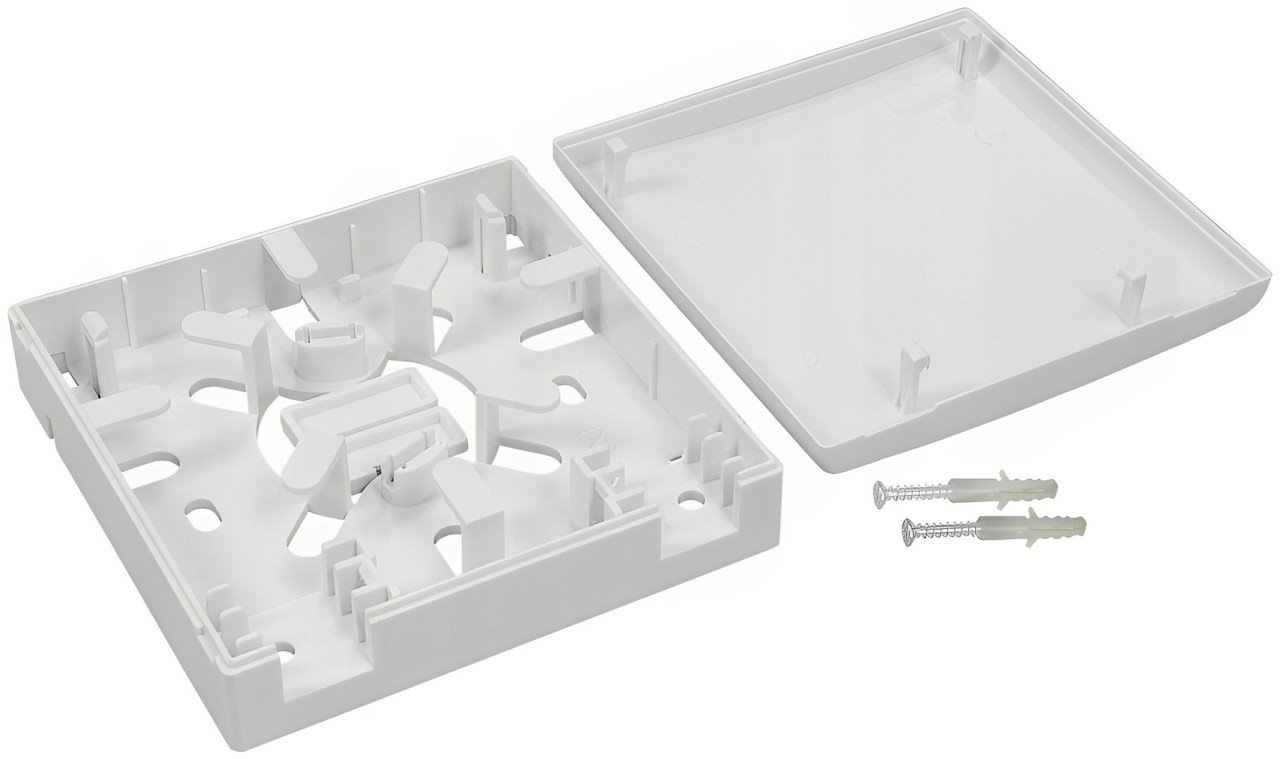

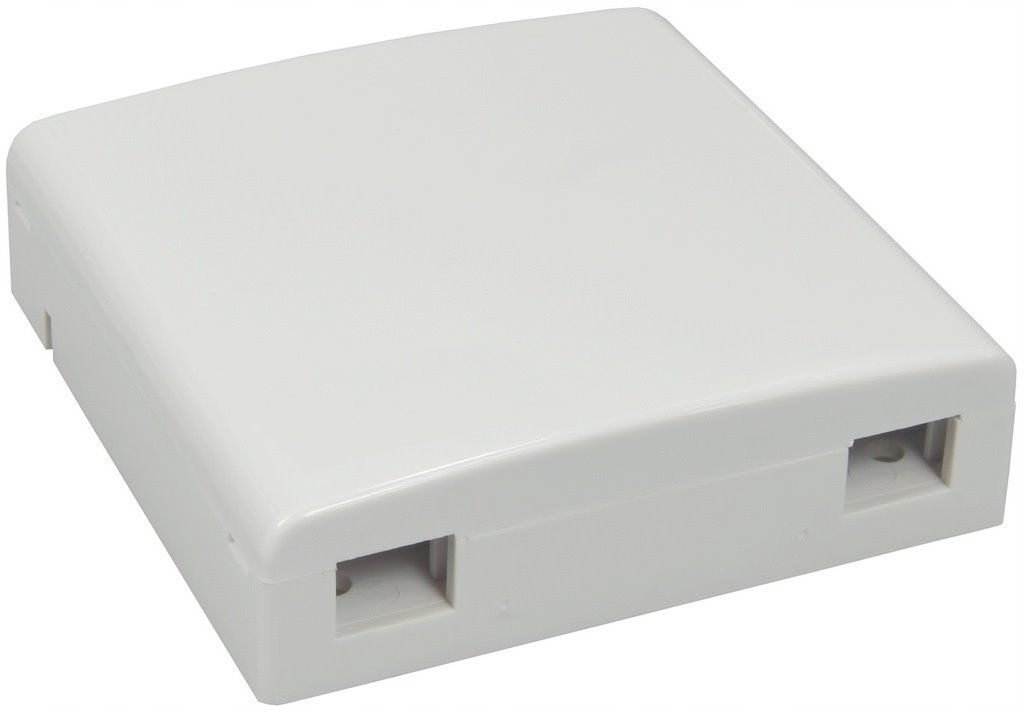

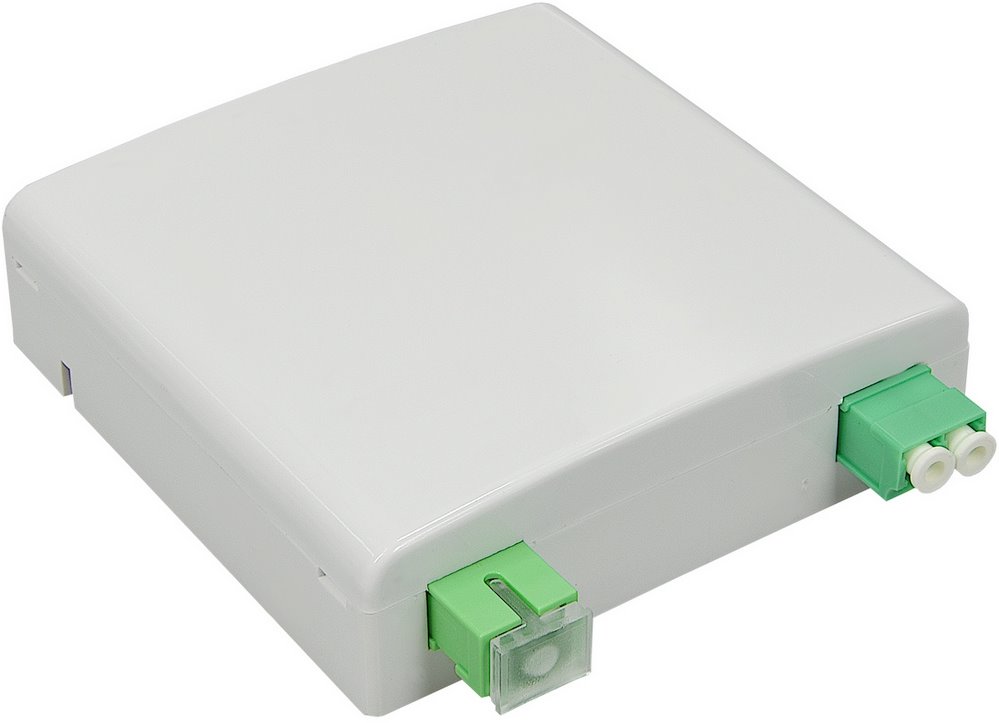

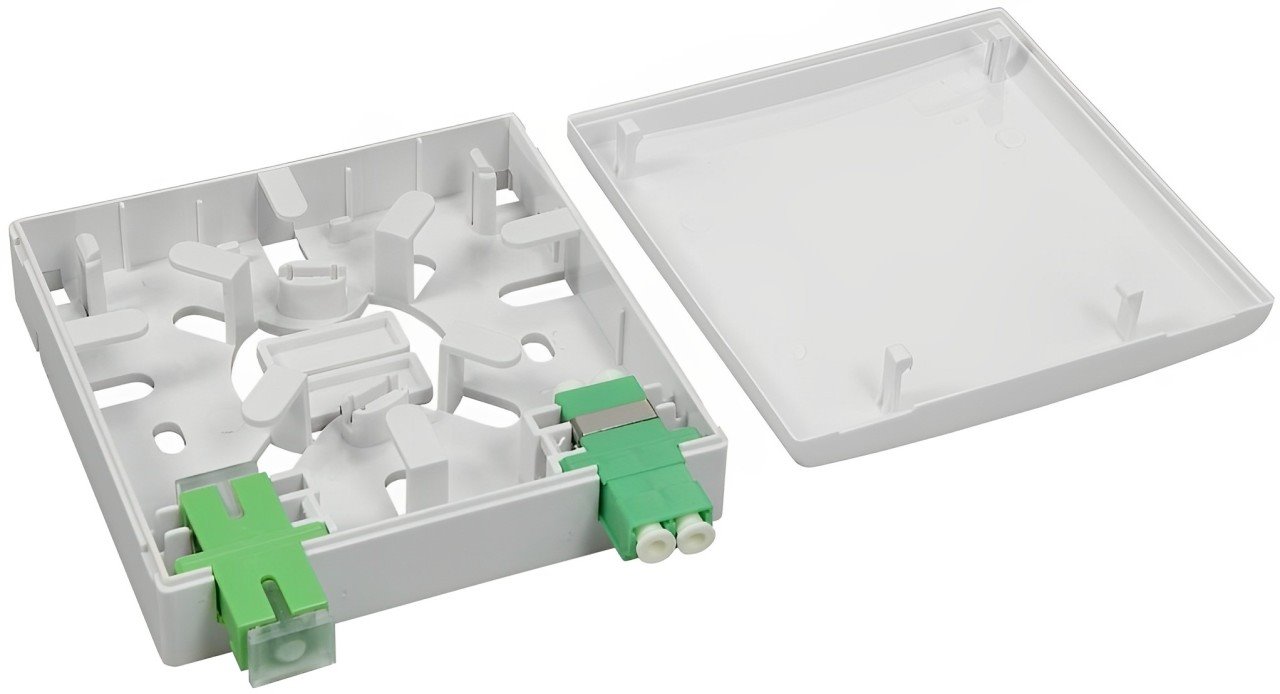

The optical FTTH socket from Conexpro is designed for terminating optical cables and supports the installation of 2x SC simplex / LC duplex adapters. The socket is made of plastic and includes an integrated optical splice tray with a comb for holding two splice protections. It is suitable for indoor use, wall mounting, and features compact dimensions of 86 x 86 x 23 mm. The package includes wall plugs and screws for easy installation. The socket comes in an elegant white color, with the option to place a custom logo on the cover.

Do you have a question or comment about this product?

Technical parameters

Physical characteristics

DesignOn the wall
Holes for connectors(2) SC Simplex
PurposeIndoor
MaterialPlastic
Depth [mm]23
Width [mm]86
Height [mm]86
ColorWhite
