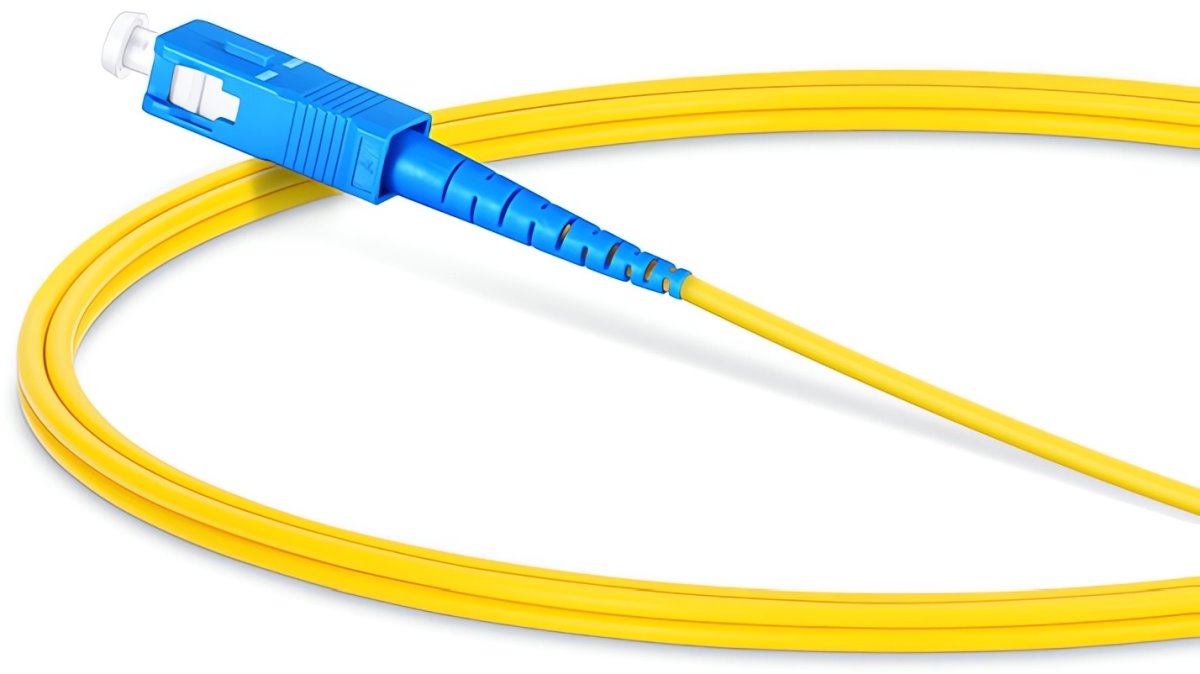

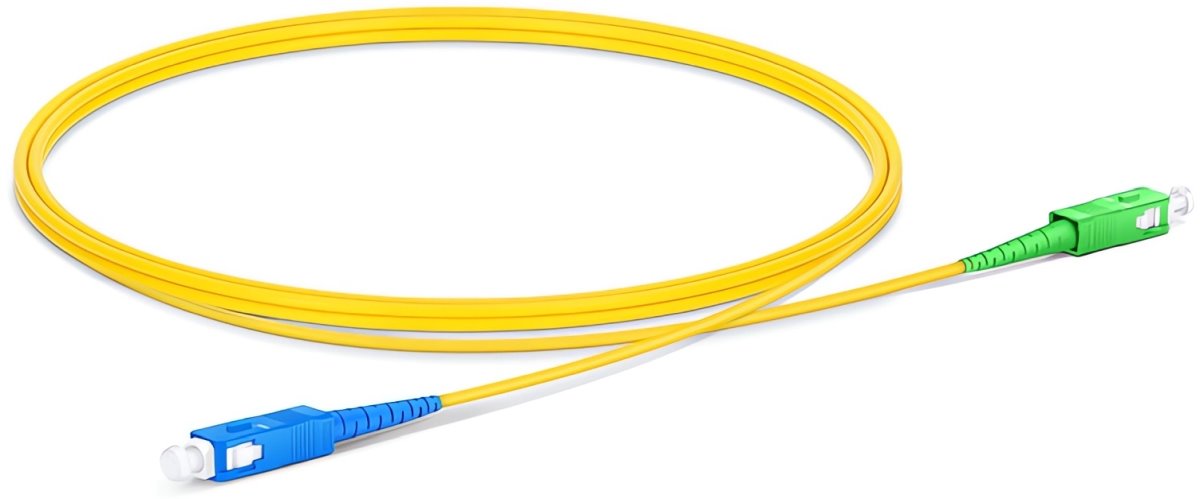

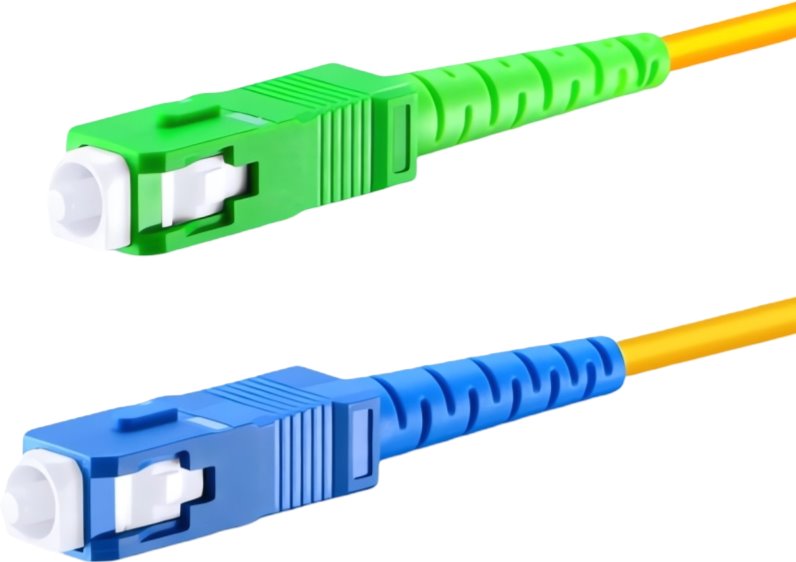

Conexpro fiber optic patch cord, SCupc/SCapc, Simplex, Singlemode 9/125, 1m

Reliable and high-quality solution for connecting active and passive optical elements. The Conexpro optical patch cord offers a fixed SC connector with UPC grinding and SC connector with APC grinding, durable Single mode simplex fiber 9/125um type G.657.A2 and a jacket of LSZH material for maximum safety. With a compact diameter of 2 mm and a leng ... More information

ManufacturerConexpro

PNSCupc/SCapc-SSM-1

EAN0710497562560

Where to buy Ask a question

Product description Technical parameters

Product description

Reliable and high-quality solution for connecting active and passive optical elements. The Conexpro optical patch cord offers a fixed SC connector with UPC grinding and SC connector with APC grinding, durable Single mode simplex fiber 9/125um type G.657.A2 and a jacket of LSZH material for maximum safety. With a compact diameter of 2 mm and a length of 1 meter, it is ideal for flexible installation in various environments, trouble-free data transmission and long-term reliability.

Do you have a question or comment about this product?

Ask a question

Technical parameters

Optics

Number of fibers1

Fiber typeSingle Mode

Core diameter [µm]9/125

Polishing typeUPC / APC

Connectors and interfaces

Optical ConnectorsSC - SC

Physical characteristics

PurposeIndoor

Length [m]1

Operating temperature [°C]-20 up to 70

LSZH (LSOH) sheathYes
