Conexpro GNT-5303, Waterproof optical coupler, SC-SC

Conexpro GNT-5303, Waterproof optical coupler, SC-SC
Conexpro GNT-5303, Waterproof optical coupler, SC-SCConexpro GNT-5303, Waterproof optical coupler, SC-SCConexpro GNT-5303, Waterproof optical coupler, SC-SCConexpro GNT-5303, Waterproof optical coupler, SC-SC
The SC simplex outdoor optical coupler is designed for reliable connection of a single optical fiber in an outdoor environment. This SC simplex coupler with UPC grinding is ideal for connecting a single optical fiber. Certified IP67, it offers excellent resistance to water and dust, making it ideal for outdoor applications. The coupling is easy an ... More information
ManufacturerConexpro
PNGNT-5303
EAN0710497560153
Where to buyAsk a question

Product description

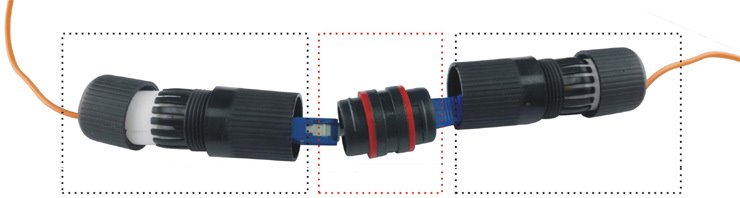

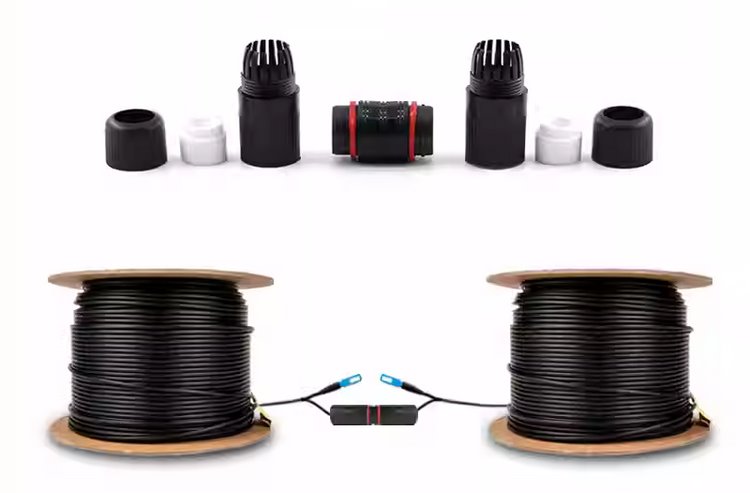

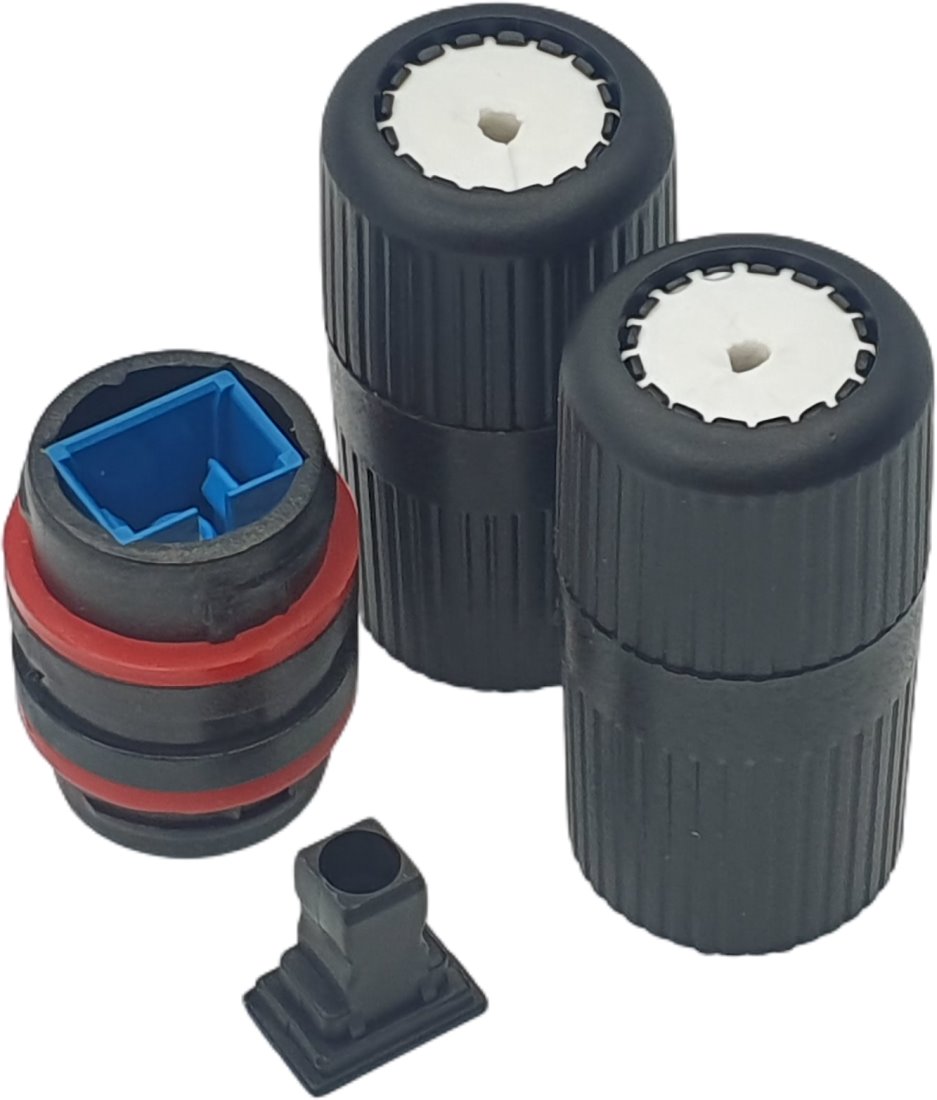

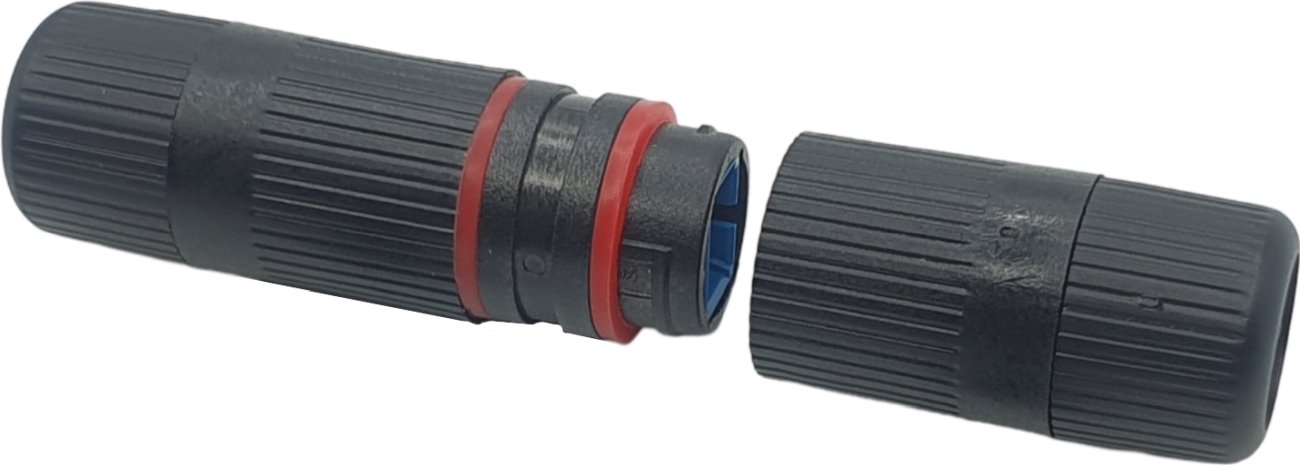

The SC simplex outdoor optical coupler is designed for reliable connection of a single optical fiber in an outdoor environment. This SC simplex coupler with UPC grinding is ideal for connecting a single optical fiber. Certified IP67, it offers excellent resistance to water and dust, making it ideal for outdoor applications. The coupling is easy and quick to assemble, which facilitates the installation of outdoor optical networks.

Do you have a question or comment about this product?
Ask a question

Technical parameters

Optics

Core diameter [µm]9/125
For cable typeSingle Mode
Polishing typeUPC

Connectors and interfaces

Optical ConnectorsSC - SC

Physical characteristics

Protection classIP67
DesignSimplex
PurposeOutdoor
Width [mm]22
Height [mm]22
Depth [mm]98
ColorBlack
