Conexpro GNT-IG1210GF-DC, Industrial switch for DIN rail, 8x LAN, 2x SFP

Conexpro GNT-IG1210GF-DC, Industrial switch for DIN rail, 8x LAN, 2x SFP
Conexpro GNT-IG1210GF-DC, Industrial switch for DIN rail, 8x LAN, 2x SFPConexpro GNT-IG1210GF-DC, Industrial switch for DIN rail, 8x LAN, 2x SFPConexpro GNT-IG1210GF-DC, Industrial switch for DIN rail, 8x LAN, 2x SFPConexpro GNT-IG1210GF-DC, Industrial switch for DIN rail, 8x LAN, 2x SFP
Gigabit switch in metal industrial design with installation on a DIN rail, without management with 8x Gigabit LAN ports and two optical SFP ports, the device is intended for the harshest conditions such as production halls, attics and outdoor switchboards. The switch offers silent fanless operation, 8x 10/100/1000 Mbps LAN + 2x Gigabit SFP uplink ... More information
ManufacturerConexpro
PNGNT-IG1210GF-DC
EAN0710497560375
Where to buyAsk a question

Product description

Gigabit switch in metal industrial design with installation on a DIN rail, without management with 8x Gigabit LAN ports and two optical SFP ports, the device is intended for the harshest conditions such as production halls, attics and outdoor switchboards. The switch offers silent fanless operation, 8x 10/100/1000 Mbps LAN + 2x Gigabit SFP uplink and power via DC terminal block (15 to 52V).

Key Features

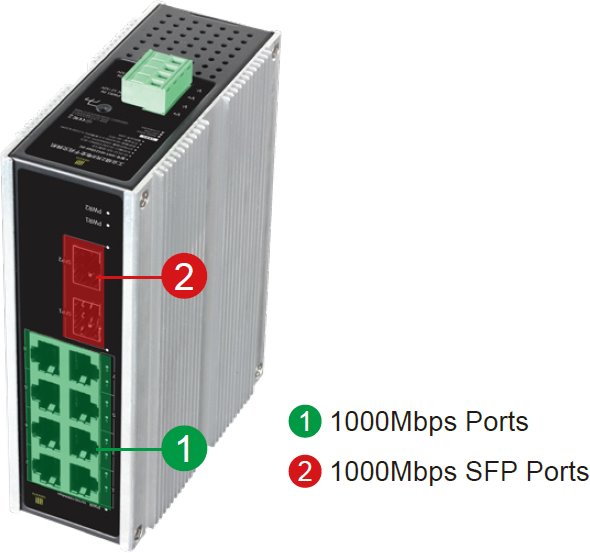

  • (8) 10/100/1000 Mbps LAN + (2) Gigabit SFP
  • Power supply via DC terminal block 15 to 52V DC
  • Maximum consumption 15W
  • Robust industrial metal chassis

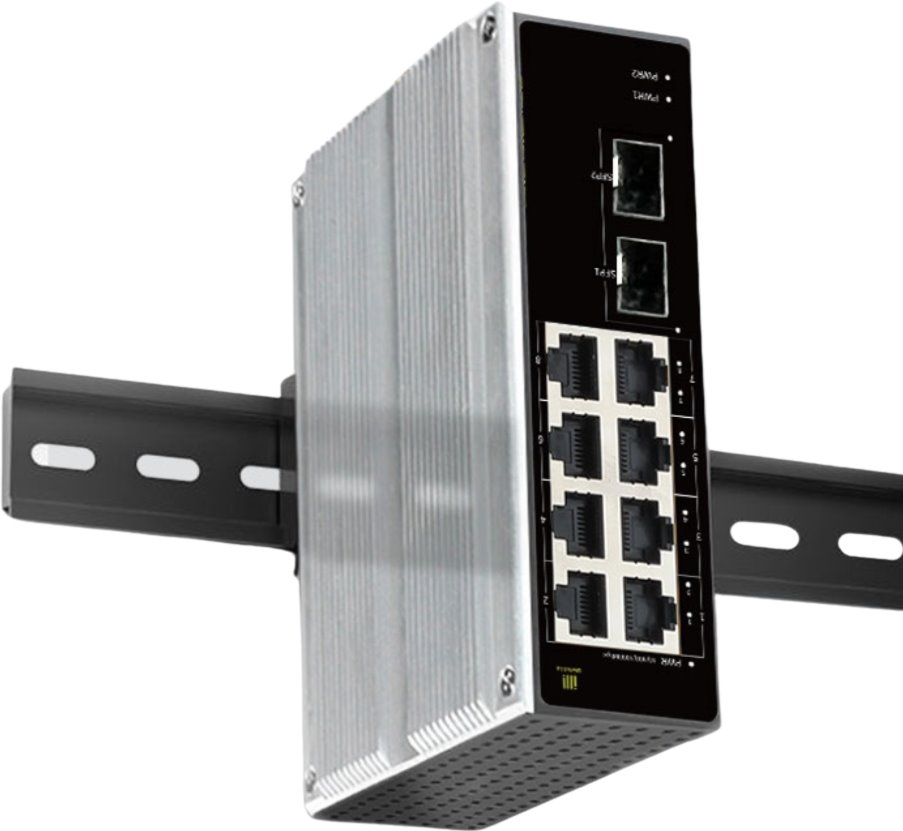

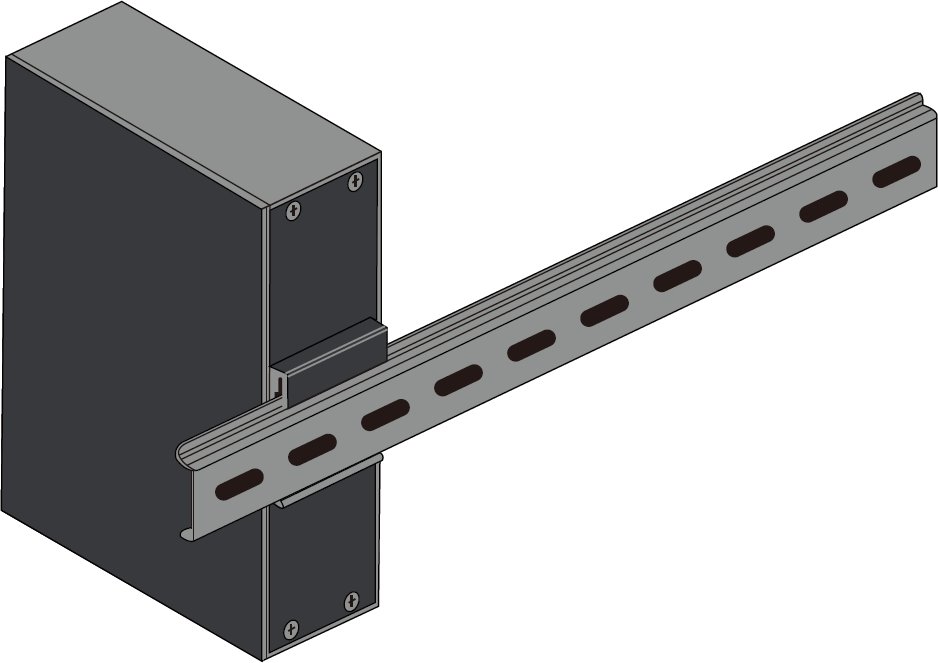

  • DIN rail mounting
  • Silent operation without fans
  • Operating temperature -40 to 70°C
  • Dimensions 43 x 145 x 110mm

Package contents

  • Device
Do you have a question or comment about this product?
Ask a question

Download

Technical parameters

Connectors and interfaces

LAN speed(8) 10/100/1000Mbps
Optical interfaces(2) 1000Mbps

Power

Power typeDC terminal
Max. power consumption [W]15
Power via connector/terminal15 .. 52V DC

Physical characteristics

Protection classIP40
DesignDIN rail, Industry
PurposeIndoor
FansWithout fan
Chassis designMetal
Operating temperature [°C]-40 up to 70
Width [mm]43
Depth [mm]110
Height [mm]145

General

Packet forwarding rate [Mpps]14,9
Switchning capacity [Gbps]20
MAC address table8000
