Conexpro outdoor STP connector, IP68, CAT6A, RJ45

Conexpro outdoor STP connector, IP68, CAT6A, RJ45
Conexpro outdoor STP connector, IP68, CAT6A, RJ45Conexpro outdoor STP connector, IP68, CAT6A, RJ45Conexpro outdoor STP connector, IP68, CAT6A, RJ45Conexpro outdoor STP connector, IP68, CAT6A, RJ45
The outdoor coupler with STP type shielding is designed for connecting two network cables of the UTP/STP/FTP type, belonging to the categories CAT5E, 6, 6A and with a diameter from 4.5 to 7.5 mm. This coupling is IP68 certified and very easy to install. When tightening the connector caps on both sides of the coupler, it is important to ensure that ... More information
ManufacturerConexpro
PNCP-6A-STP-OUT
Where to buyAsk a question

Product description

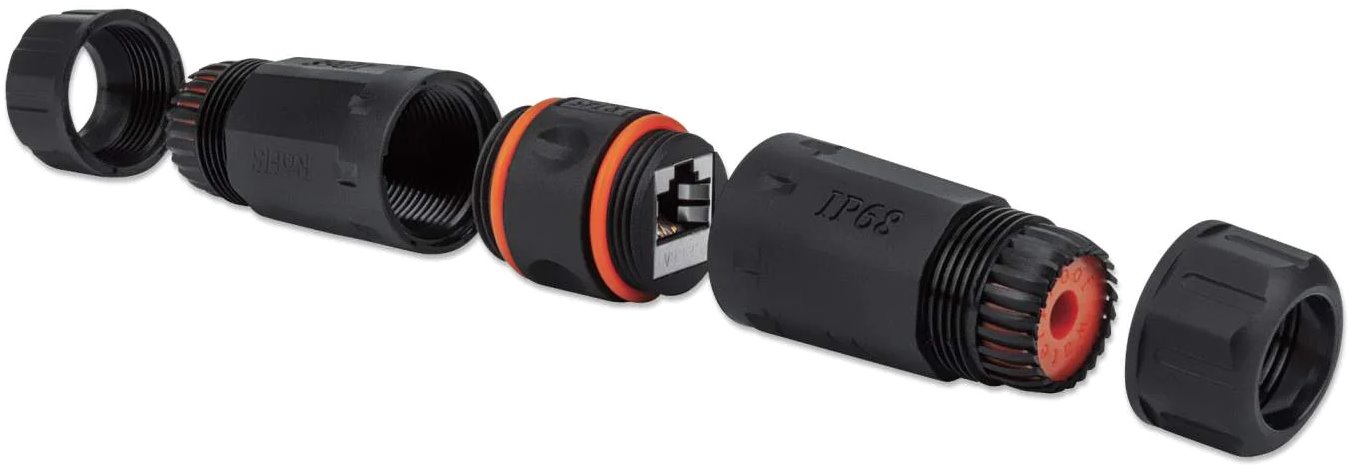

The outdoor coupler with STP type shielding is designed for connecting two network cables of the UTP/STP/FTP type, belonging to the categories CAT5E, 6, 6A and with a diameter from 4.5 to 7.5 mm. This coupling is IP68 certified and very easy to install. When tightening the connector caps on both sides of the coupler, it is important to ensure that there are no gaps between the cable, the rubber seal and the coupler itself, which could cause a leak.

This connector features 3 micron gold-plated contacts that guarantee the highest signal throughput. It is also suitable for all PoE (IEEE 802.3af/at/bt) applications.

Do you have a question or comment about this product?
Ask a question

Download

Technical parameters

Physical characteristics

Type of couplerClassical RJ45
ShieldingYes
Protection classIP68
PurposeOutdoor
Outer diameter [mm)4,5 up to 7,5
Operating temperature [°C]-20 up to 70
Width [mm]28
Height [mm]28
Depth [mm]122
ColorBlack

General

CategoryCAT6A
