Conexpro Revers Gigabit PoE Switch, 8 ports

Conexpro Revers Gigabit PoE Switch, 8 ports
Conexpro Revers Gigabit PoE Switch, 8 portsConexpro Revers Gigabit PoE Switch, 8 portsConexpro Revers Gigabit PoE Switch, 8 portsConexpro Revers Gigabit PoE Switch, 8 portsConexpro Revers Gigabit PoE Switch, 8 ports

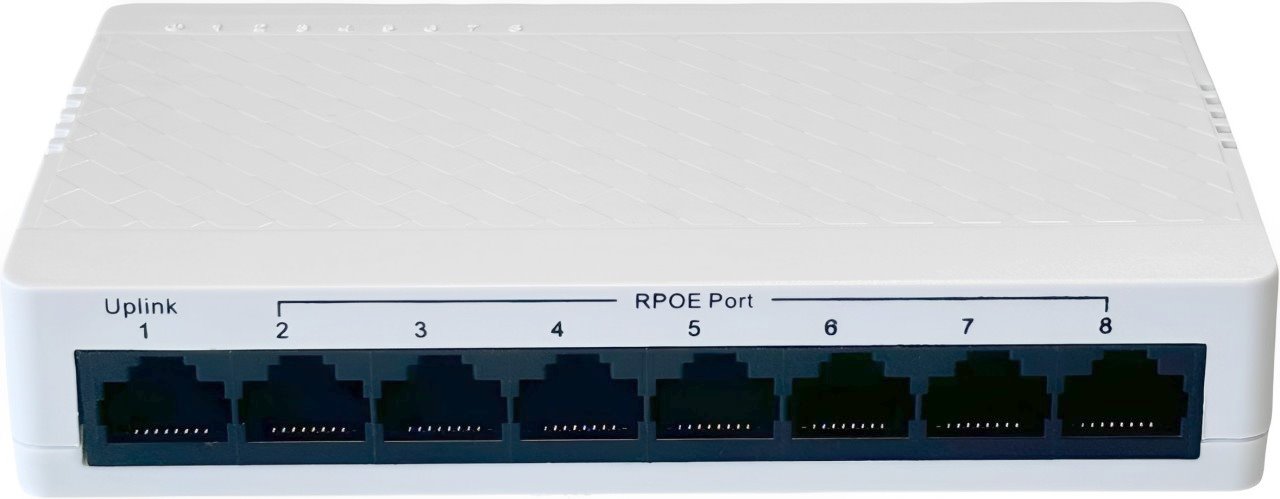

Reverse Gigabit PoE switch without management from Conexpro with 8 Gigabit LAN ports enables power from up to 7 clients simultaneously connected on ports 2 to 8 using passive PoE (16-57 V DC, 4/5+ and 7/8-). Port 1 serves as an uplink (max. 1A) for the Wi-Fi feed unit, which is often located on the roof and is powered by the same voltage as the cl ... More information
ManufacturerConexpro
PNGPOE-REVS-8
EAN0710497563055
Where to buyAsk a question

Product description

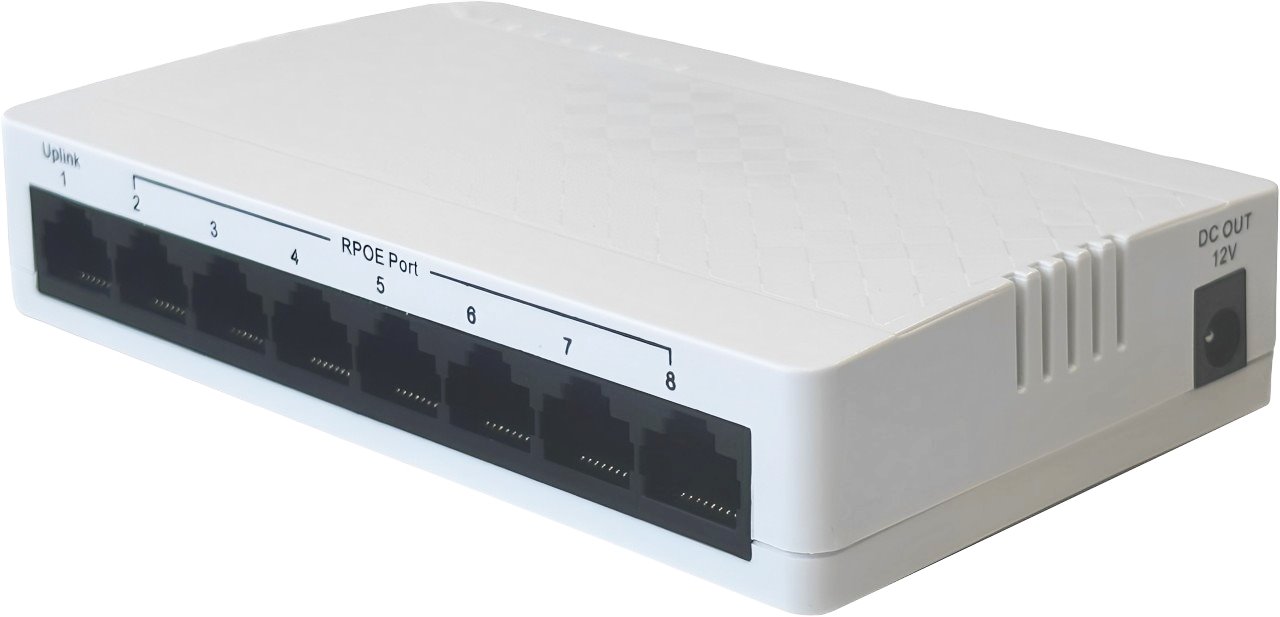

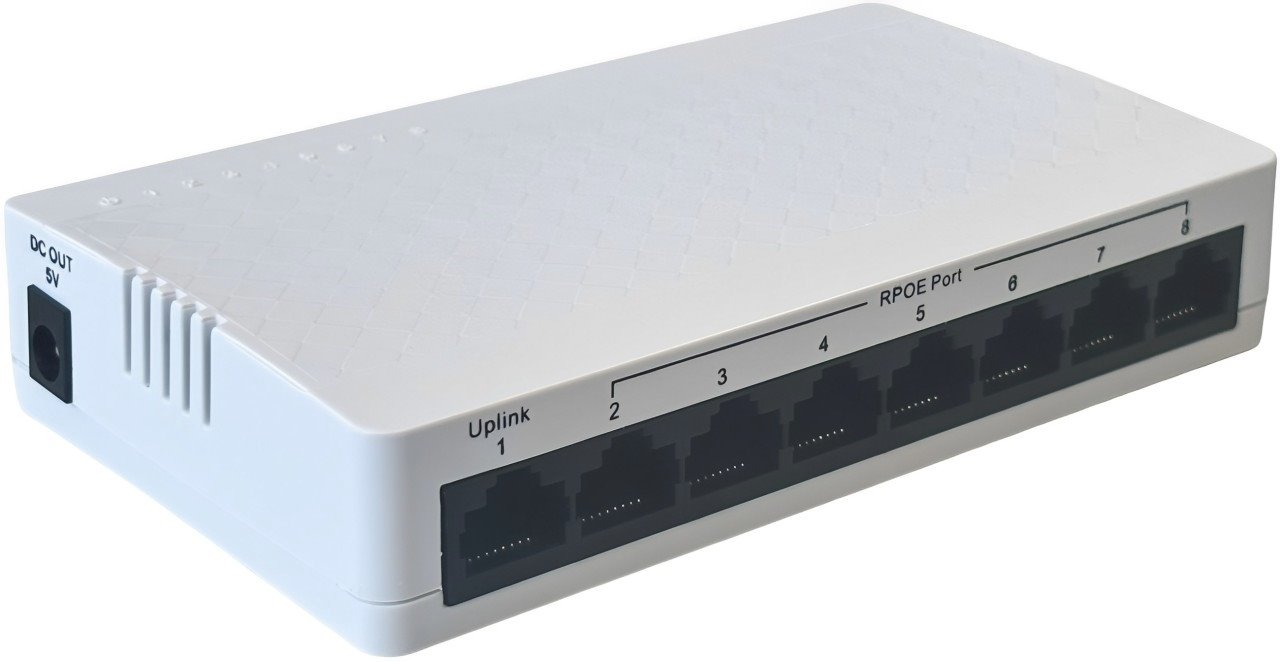

Reverse Gigabit PoE switch without management from Conexpro with 8 Gigabit LAN ports enables power from up to 7 clients simultaneously connected on ports 2 to 8 using passive PoE (16-57 V DC, 4/5+ and 7/8-). Port 1 serves as an uplink (max. 1A) for the Wi-Fi feed unit, which is often located on the roof and is powered by the same voltage as the client ports. The switch in white design has two DC jack connectors including cable jumpers (5 V and 12 V) on the sides, which can be used to power other devices, such as a MikroTik or an IP camera.

Package contents

  • Device
  • (2) DC power cable (male - male), 50 cm
Do you have a question or comment about this product?
Ask a question

Technical parameters

Connectors and interfaces

LAN speed(8) 10/100/1000Mbps

Power

Power typePoE
PoE Input ports7
PoE typePoE-Out + PoE-In
PoE-Out standardsPassive 24V, Passive 48V, Passive 54V
PoE Out ports1
Max. power consumption [W]2
Power over Ethernet16 .. 57V DC

Physical characteristics

DesignDesktop
PurposeIndoor
FansWithout fan
Chassis designPlastic

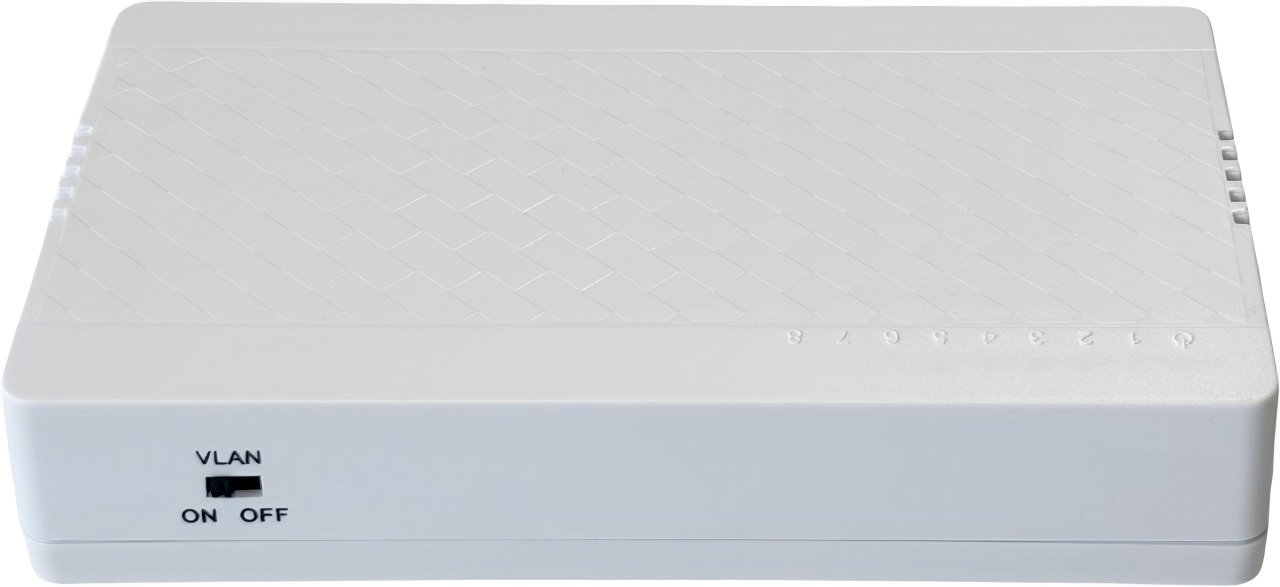

ButtonsNormal / VLAN
Operating temperature [°C]-10 up to 55
Height [mm]24
Depth [mm]77
Width [mm]130

General

Switchning capacity [Gbps]16
MAC address table1000
