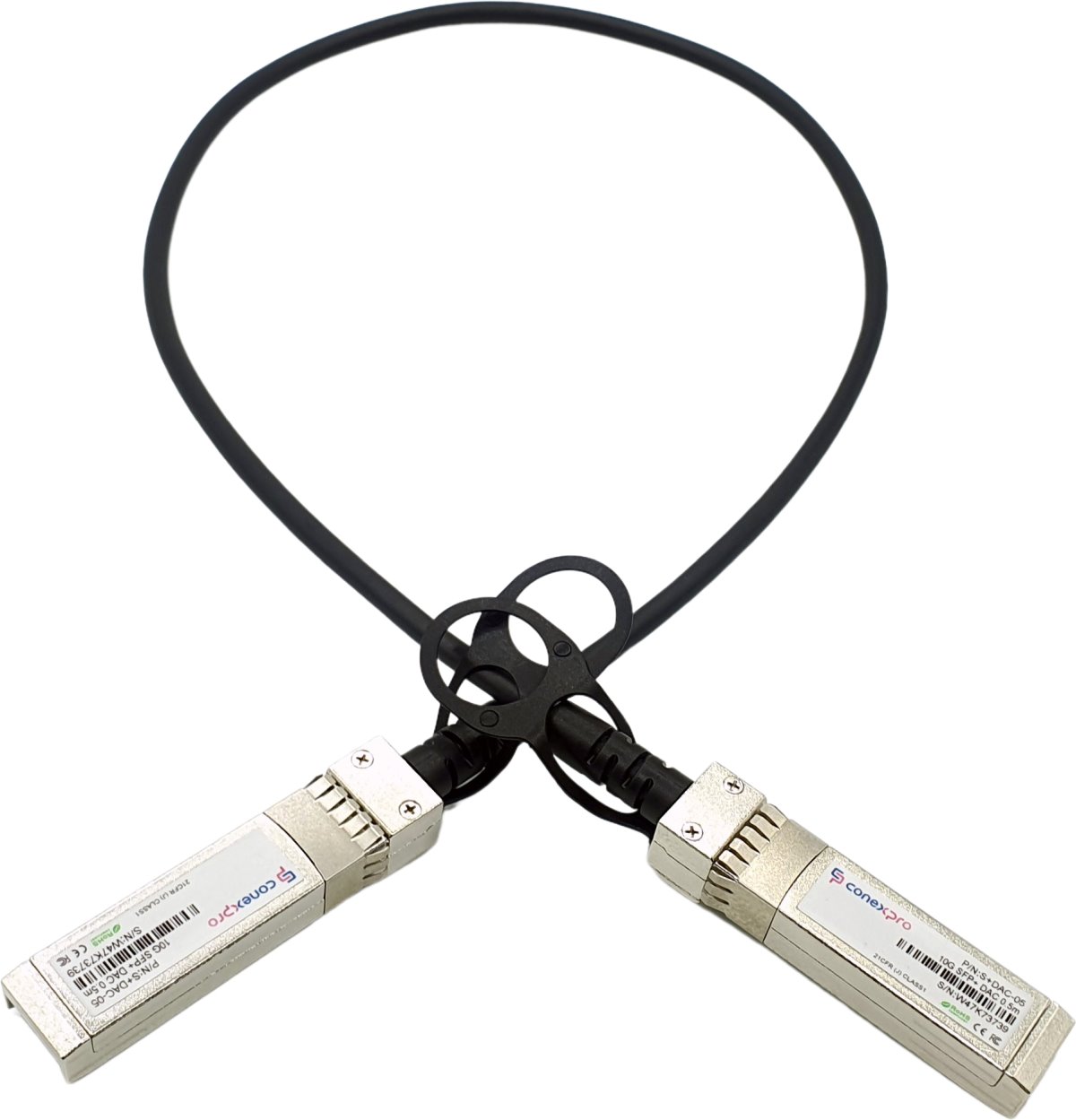

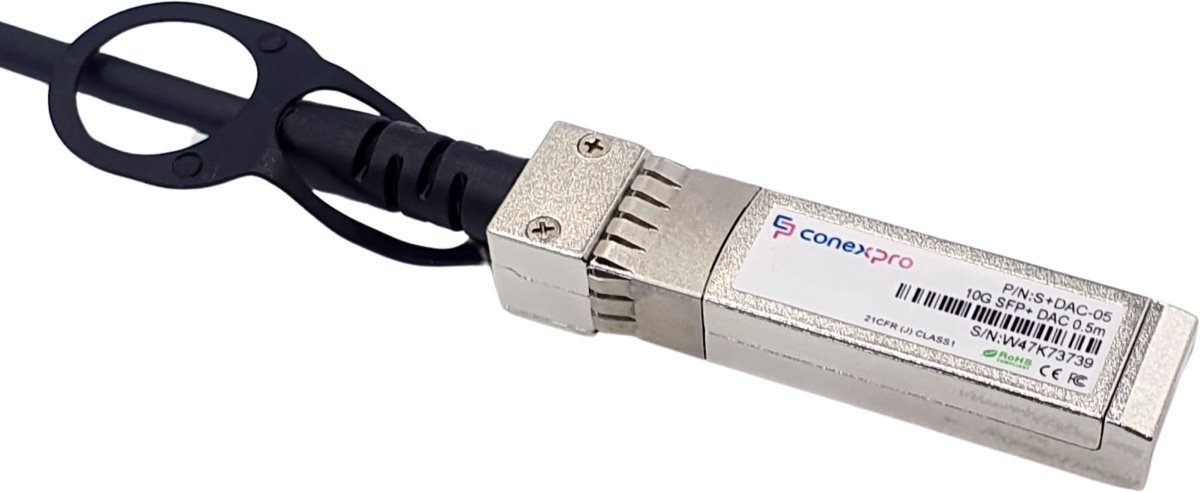

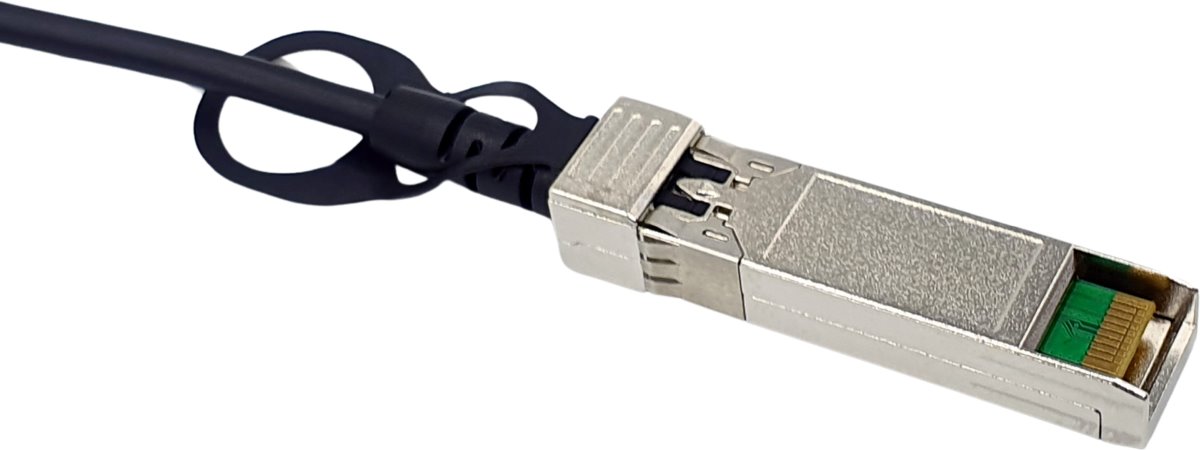

Conexpro 10G SFP+ DAC cable, passive, DDM, 0,5m

Conexpro 10G SFP+ DAC cable, passive, DDM, 0,5m
Conexpro 10G SFP+ DAC cable, passive, DDM, 0,5mConexpro 10G SFP+ DAC cable, passive, DDM, 0,5mConexpro 10G SFP+ DAC cable, passive, DDM, 0,5m
DAC passive cable with SFP+ connectors, provides a fast and cost-effective connection of two network active elements, such as a switch or router, with 1G speed or 10Gbps. A quality twinax DAC cable with universal compatibility enables easy connection without the need for SFP/SFP+ modules. Just connect the cable directly to the SFP/SFP+ slot and im ... More information
ManufacturerConexpro
PNS+DAC-05
EAN0710497560740
Where to buyAsk a question

Product description

DAC passive cable with SFP+ connectors, provides a fast and cost-effective connection of two network active elements, such as a switch or router, with 1G speed or 10Gbps. A quality twinax DAC cable with universal compatibility enables easy connection without the need for SFP/SFP+ modules. Just connect the cable directly to the SFP/SFP+ slot and immediately create a connection at a speed of up to 10Gbps. The total cable length is 0.5m.

Do you have a question or comment about this product?
Ask a question

Download

Technical parameters

Optics

FormatSFP, SFP+
Transmission speed1 Gbps, 10 Gbps
Cable typePassive

Physical characteristics

Conductor wire gauge30 AWG
Length [m]0,5
Outer diameter [mm)6
Operating temperature [°C]0 up to 70
ColorBlack

Software

DDMI - diagnosticsYes
