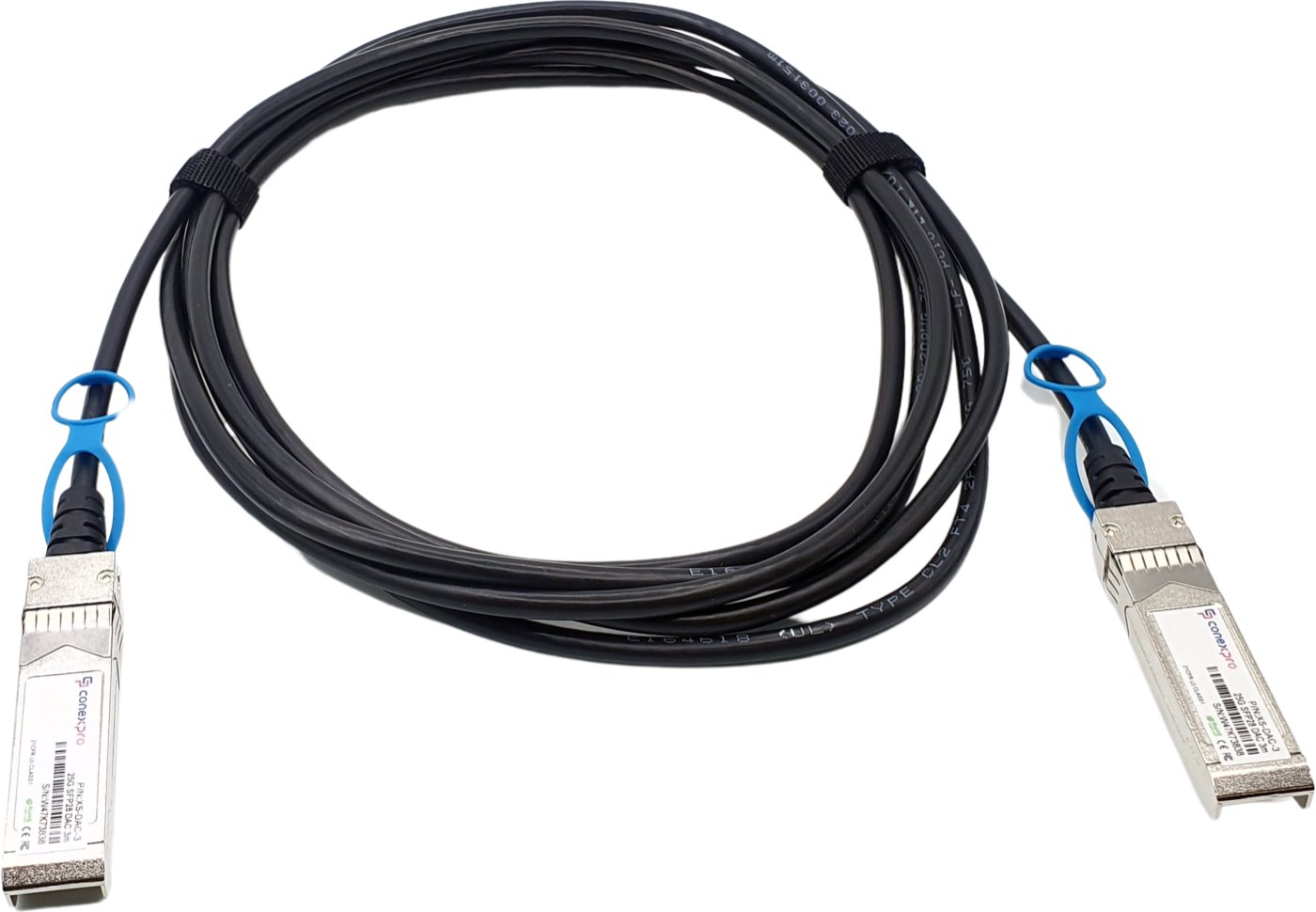

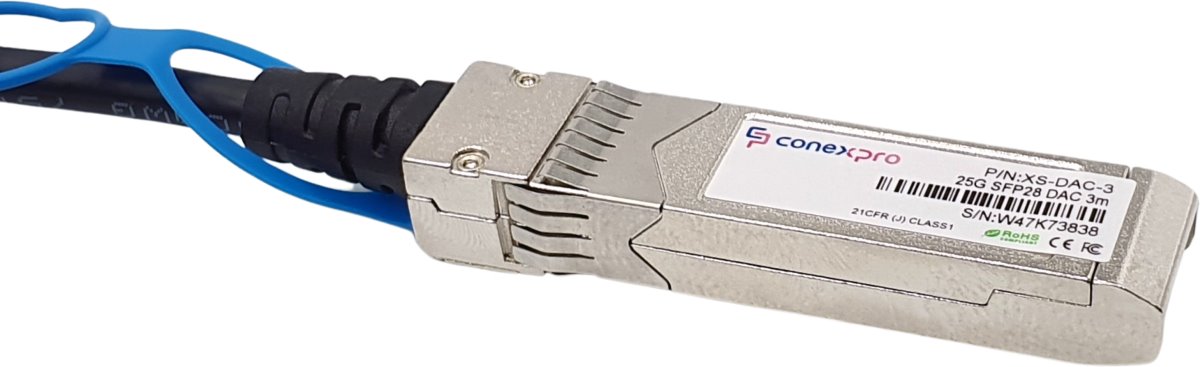

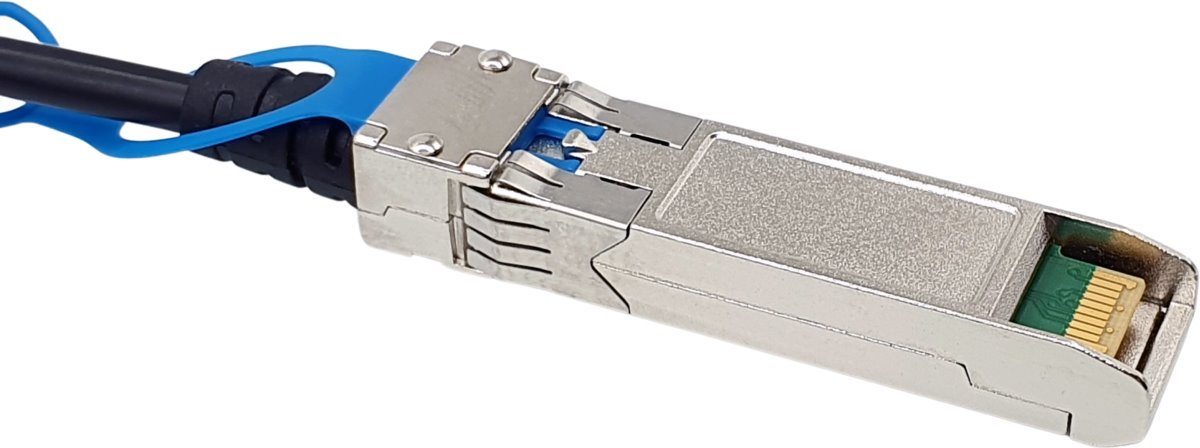

Conexpro 25G SFP28 DAC cable, passive, DDM, 3m

Conexpro 25G SFP28 DAC cable, passive, DDM, 3m
The Conexpro SFP28 passive DAC cable is an efficient and affordable solution for simple connection of network active elements such as switches or routers at speeds 1/10/25 Gbps, without the need for separate modules or other accessories. Cable with multirate support allows use with SFP, SFP+ and SFP28. A high-quality twinax DAC cable with universa ... More information
ManufacturerConexpro
PNXS-DAC-3
EAN0710497560801

Product description

The Conexpro SFP28 passive DAC cable is an efficient and affordable solution for simple connection of network active elements such as switches or routers at speeds 1/10/25 Gbps, without the need for separate modules or other accessories. Cable with multirate support allows use with SFP, SFP+ and SFP28. A high-quality twinax DAC cable with universal compatibility ensures trouble-free use with most active components. Connecting the DAC to the active element's SFP28 slot instantly creates a connection with a speed of up to 25 Gbps. Cable length is 3m.

Do you have a question or comment about this product?

Technical parameters

Optics

FormatSFP, SFP+, SFP28
Transmission speed1 Gbps, 10 Gbps, 25 Gbps
Cable typePassive

Physical characteristics

Conductor wire gauge30 AWG
Length [m]3
Outer diameter [mm)6
Operating temperature [°C]0 up to 70
ColorBlack

Software

DDMI - diagnosticsYes
