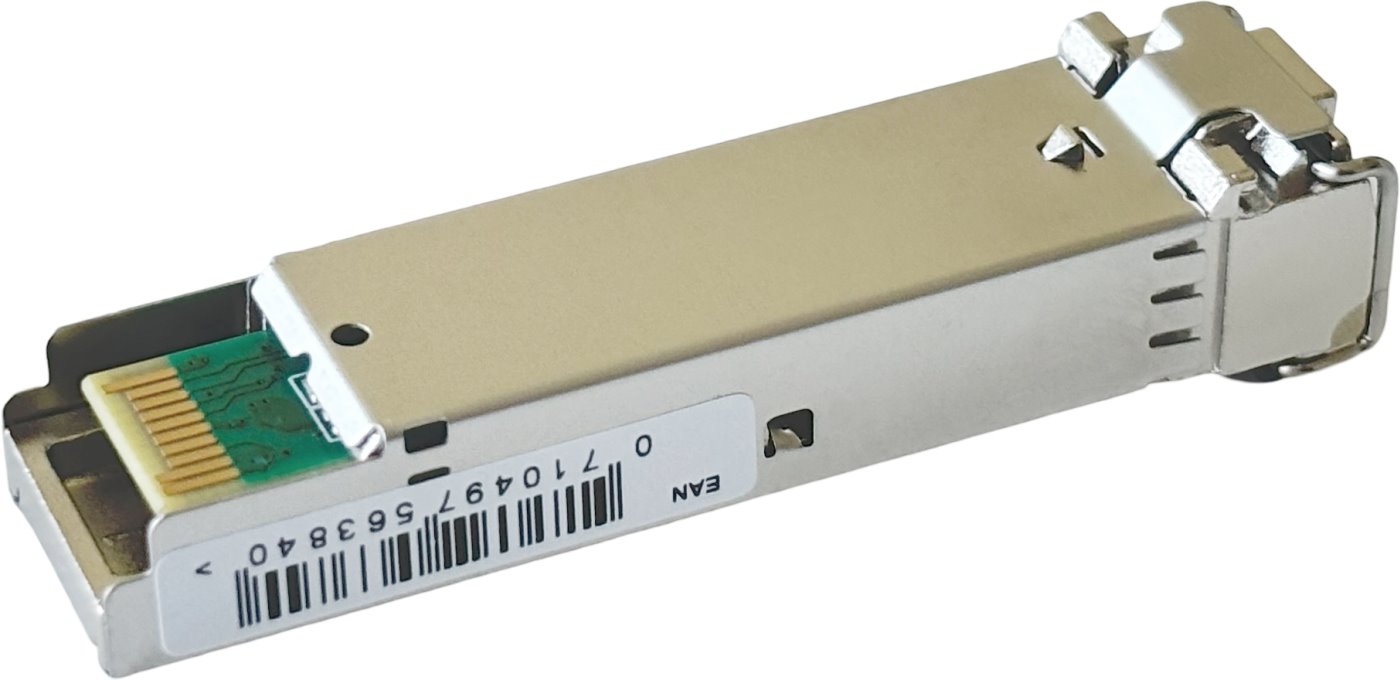

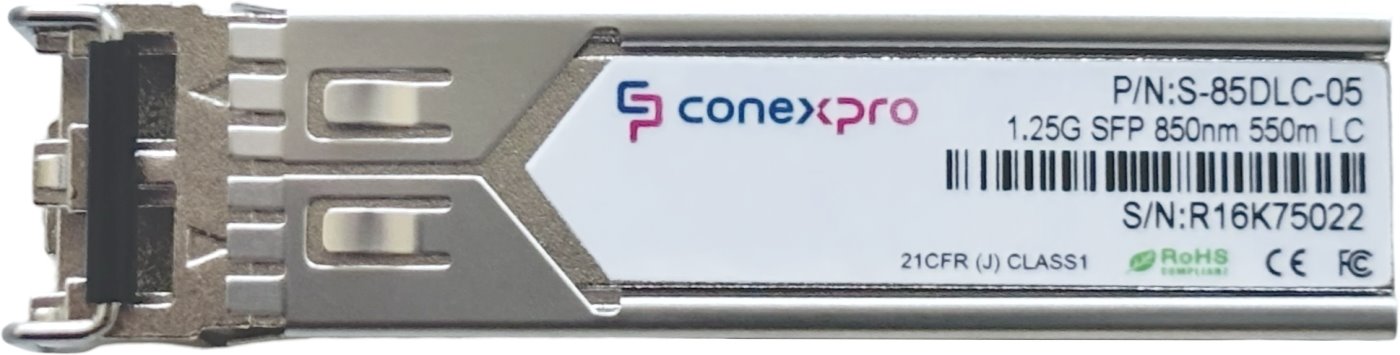

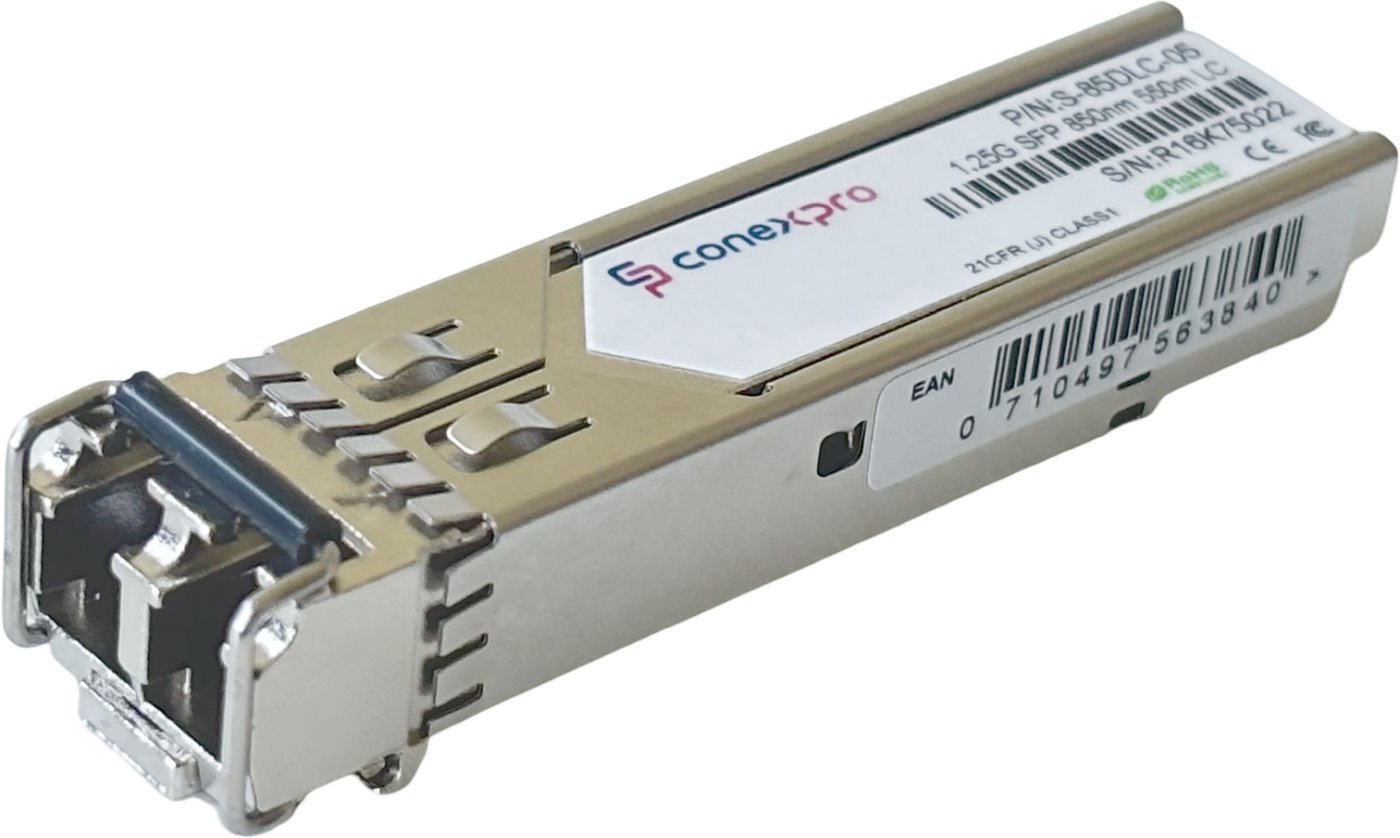

Conexpro 1.25G SFP optical module, MM, 850nm, 550m, 2x LC, DDM

The Gigabit Multimode SFP module from OEM manufacturer Conexpro operates at a wavelength of 850 nm for both transmission and reception (Tx/Rx), offers a data rate of 1 Gbps, and is equipped with two LC connectors with UPC polishing. It is designed for optical links over distances of up to 550 meters. This module ensures broad compatibility, meanin ... More information

ManufacturerConexpro

PNS-85DLC-05

EAN0710497563840

Where to buy Ask a question

Product description Technical parameters

Product description

The Gigabit Multimode SFP module from OEM manufacturer Conexpro operates at a wavelength of 850 nm for both transmission and reception (Tx/Rx), offers a data rate of 1 Gbps, and is equipped with two LC connectors with UPC polishing. It is designed for optical links over distances of up to 550 meters. This module ensures broad compatibility, meaning it can operate seamlessly with almost all commonly available networking devices. It also supports DDM (Digital Diagnostic Monitoring) for real-time monitoring of optical link parameters.

Do you have a question or comment about this product?

Ask a question

Technical parameters

Optics

FormatSFP

For cable typeMulti Mode

Transmission speed1 Gbps

Wavelength - Tx/Rx [nm]850

Distance [km]0,55

Transfer type2-fiber

Polishing typeUPC

Connectors and interfaces

Optical Connectors(2) LC

Physical characteristics

Operating temperature [°C]0 up to 70

General

SFP CompatibilityUniversal

Software

DDMI - diagnosticsYes
