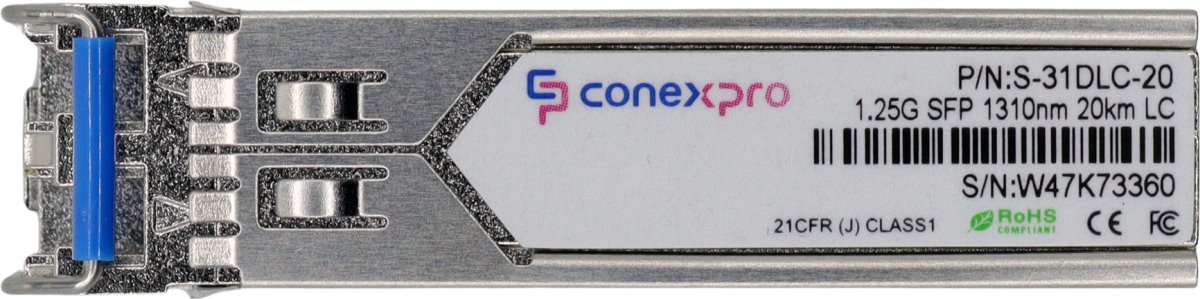

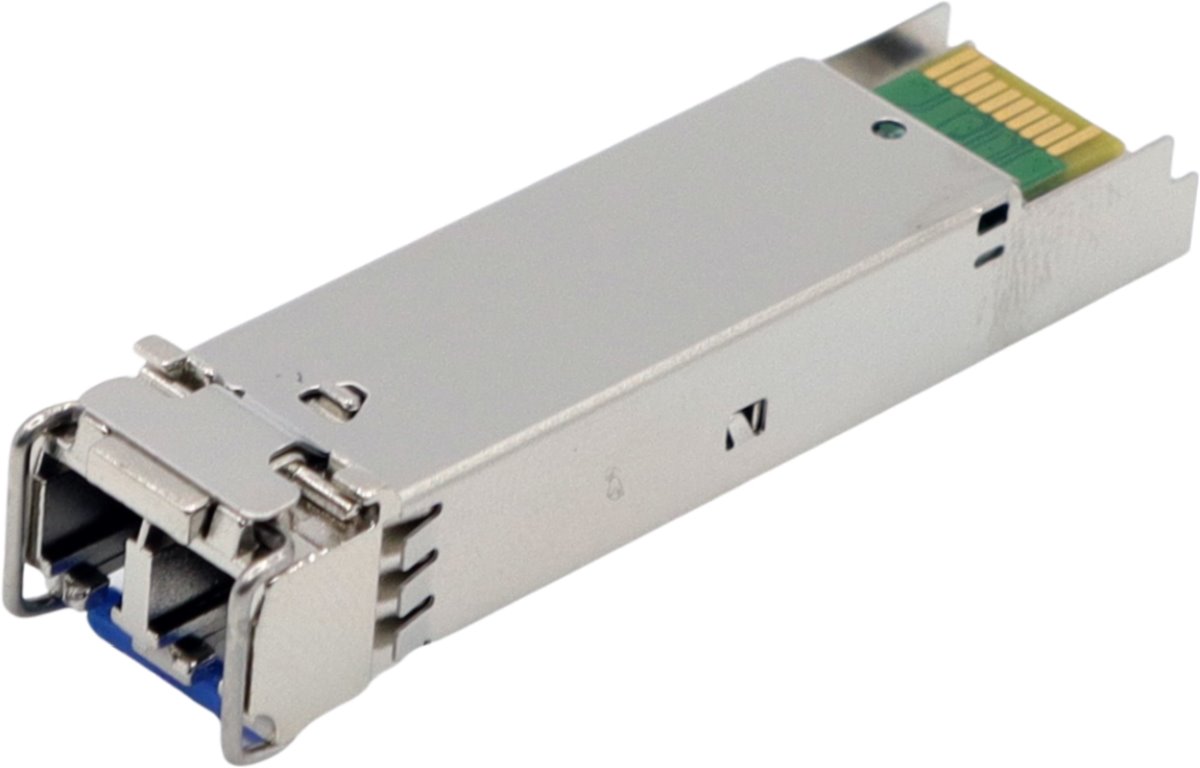

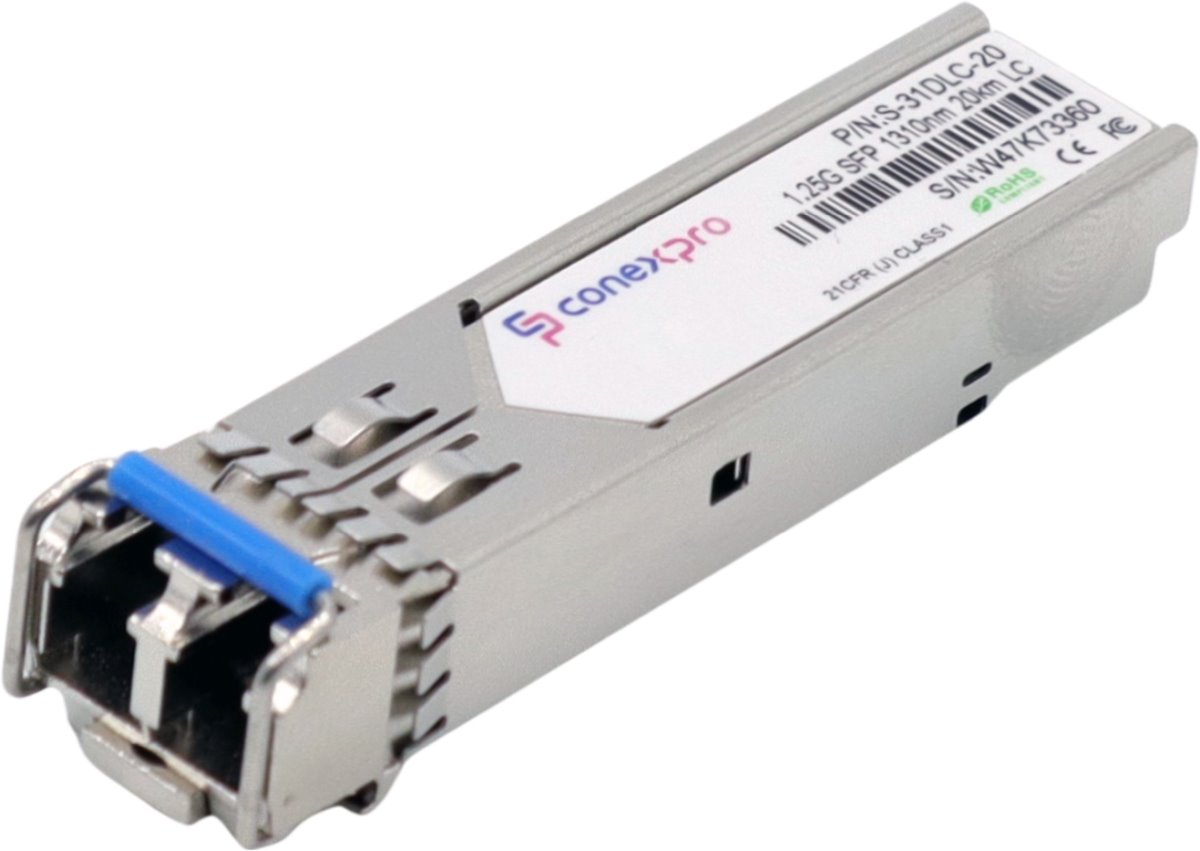

Conexpro 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC, DDM

Gigabit Singlemode SFP module from Conexpro with wavelength (Tx and Rx) 1310nm, speed 1 Gbps is equipped with two LC connectors with UPC grinding and is intended for connection at a distance of up to 20 km. This module provides universal compatibility, which means that it is able to work with almost all active elements available. It goes without s ... More information

ManufacturerConexpro

PNS-31DLC-20

EAN0710497560641

Where to buy Ask a question

Product description Download1 Technical parameters

Product description

Gigabit Singlemode SFP module from Conexpro with wavelength (Tx and Rx) 1310nm, speed 1 Gbps is equipped with two LC connectors with UPC grinding and is intended for connection at a distance of up to 20 km. This module provides universal compatibility, which means that it is able to work with almost all active elements available. It goes without saying that optical connection diagnostics are supported using the DDM (Digital Diagnostic Monitoring) function.

Do you have a question or comment about this product?

Ask a question

Download

Datasheet

Technical parameters

Optics

FormatSFP

For cable typeSingle Mode

Transmission speed1 Gbps

Wavelength - Tx/Rx [nm]1310

Distance [km]20

Transfer type2-fiber

Polishing typeUPC

Connectors and interfaces

Optical Connectors(2) LC

Physical characteristics

Operating temperature [°C]0 up to 70

General

SFP CompatibilityUniversal

Software

DDMI - diagnosticsYes
