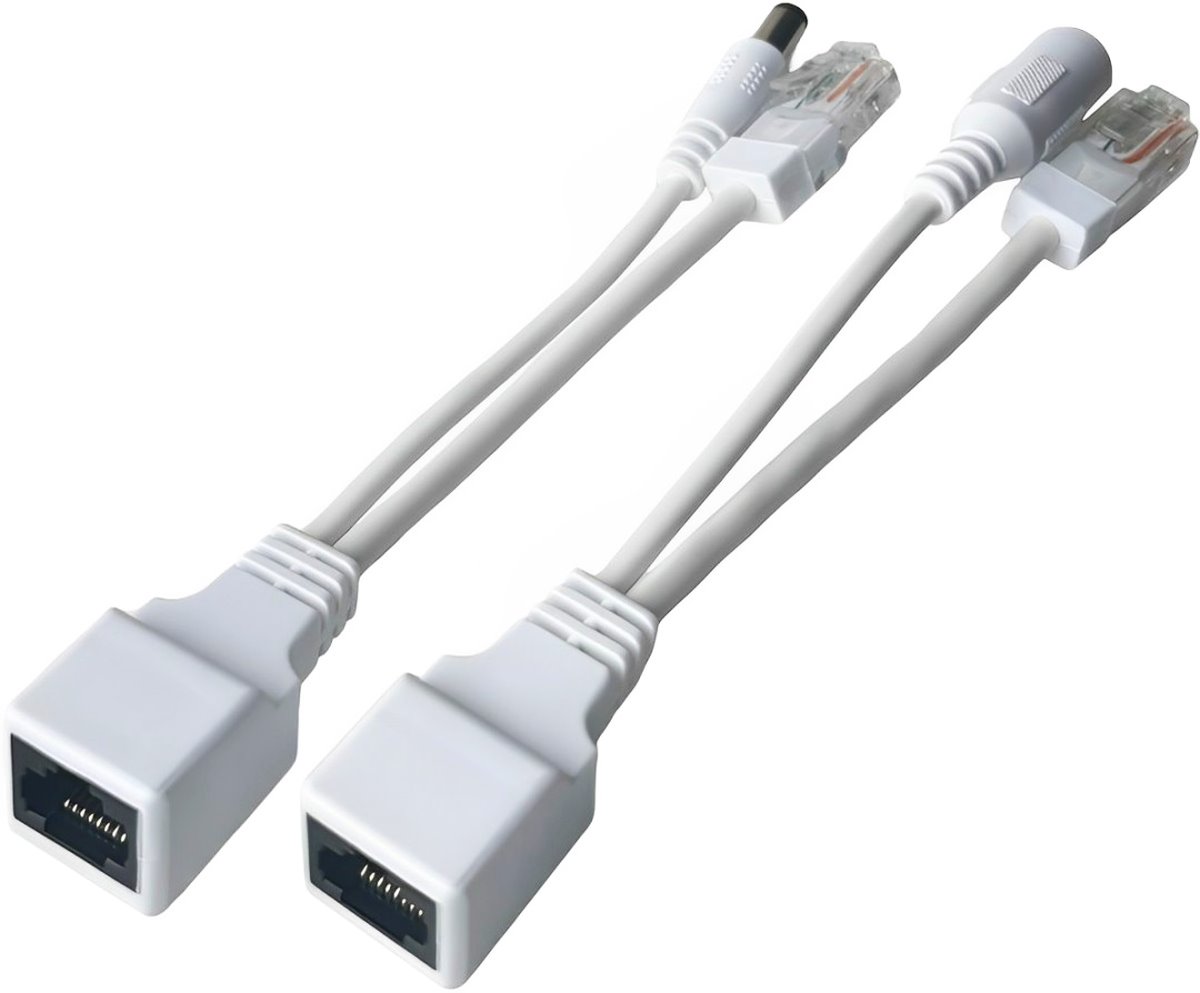

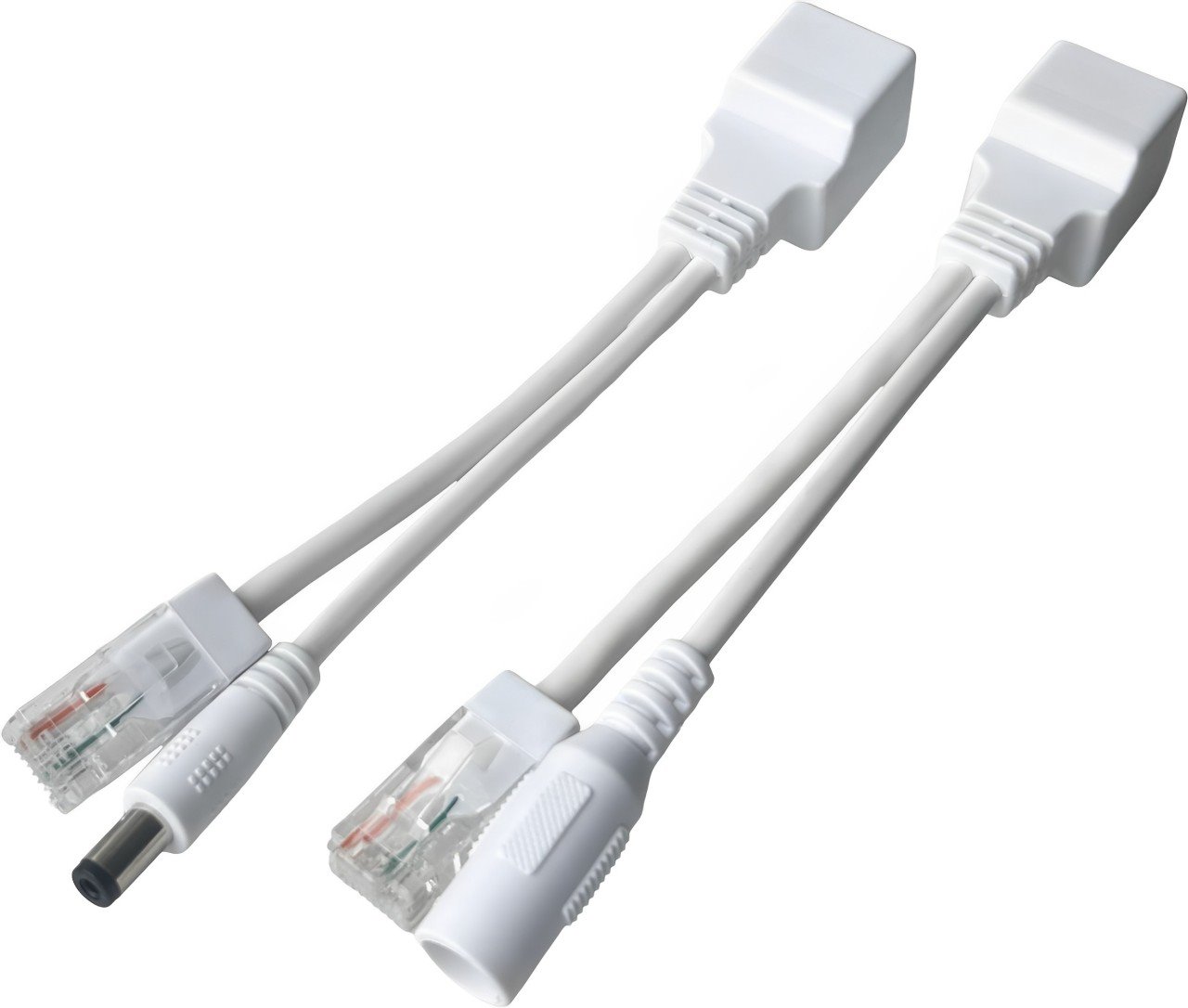

Conexpro AFA-1 passive PoE set, injector and splitter

Conexpro AFA-1 passive PoE set, injector and splitter
Conexpro AFA-1 passive PoE set, injector and splitterConexpro AFA-1 passive PoE set, injector and splitterConexpro AFA-1 passive PoE set, injector and splitter

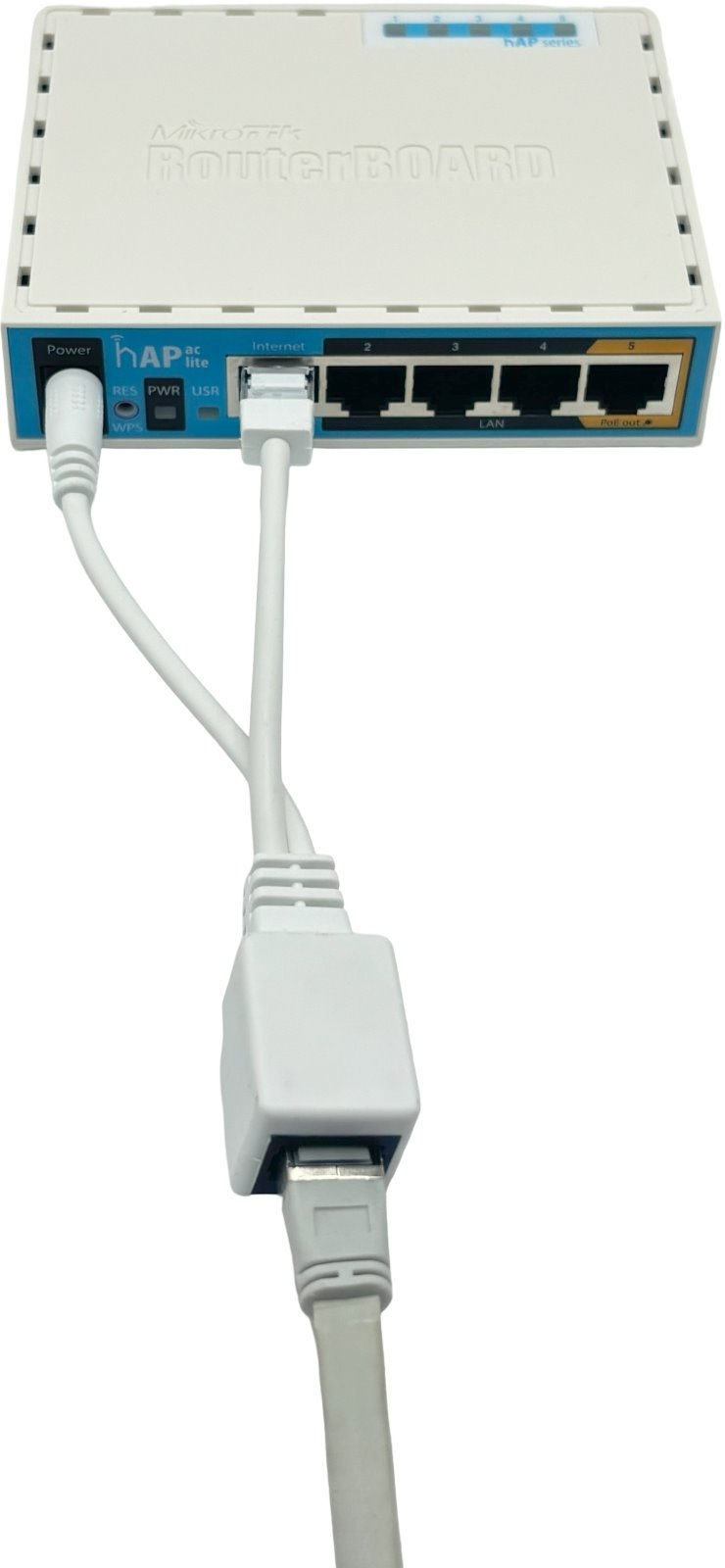

The splitter and injector set for passive PoE is designed to power devices such as MikroTiks, Ubiquiti, cameras and other devices without PoE support. This elegant cable set in white color with speed 100 Mbps enables powering any device with a compatible 2.1/5.5 mm power connector. Accordingly, the power supply is realized through free pins 4.5 (+ ... More information
ManufacturerConexpro
PNAFA-1
EAN0710497563086
Where to buyAsk a question

Product description

The splitter and injector set for passive PoE is designed to power devices such as MikroTiks, Ubiquiti, cameras and other devices without PoE support. This elegant cable set in white color with speed 100 Mbps enables powering any device with a compatible 2.1/5.5 mm power connector. Accordingly, the power supply is realized through free pins 4.5 (+) and 7.8 (-). It is important to mention that this PoE set does not meet the 802.3af/at specifications. The power limit is set at 1A at a voltage between 5 to 48 V DC.

Do you have a question or comment about this product?
Ask a question

Technical parameters

Connectors and interfaces

Ethernet speed [Mb/s]10/100

Power

Pin powering4,5 (+), 7,8 (-)
The input voltage [V]5 .. 48V DC
Output Power [W]48
PoE-Out standardsPassive - according to voltage
PoE Out ports1
Output Voltage [V]5 .. 48V DC
Output Current [A]1

Physical characteristics

Output connector [mm]5.5 / 2.1
Operating temperature [°C]0 up to 40
