Conexpro AFA-2 Passive PoE splitter

Conexpro AFA-2 Passive PoE splitter
Conexpro AFA-2 Passive PoE splitterConexpro AFA-2 Passive PoE splitterConexpro AFA-2 Passive PoE splitter

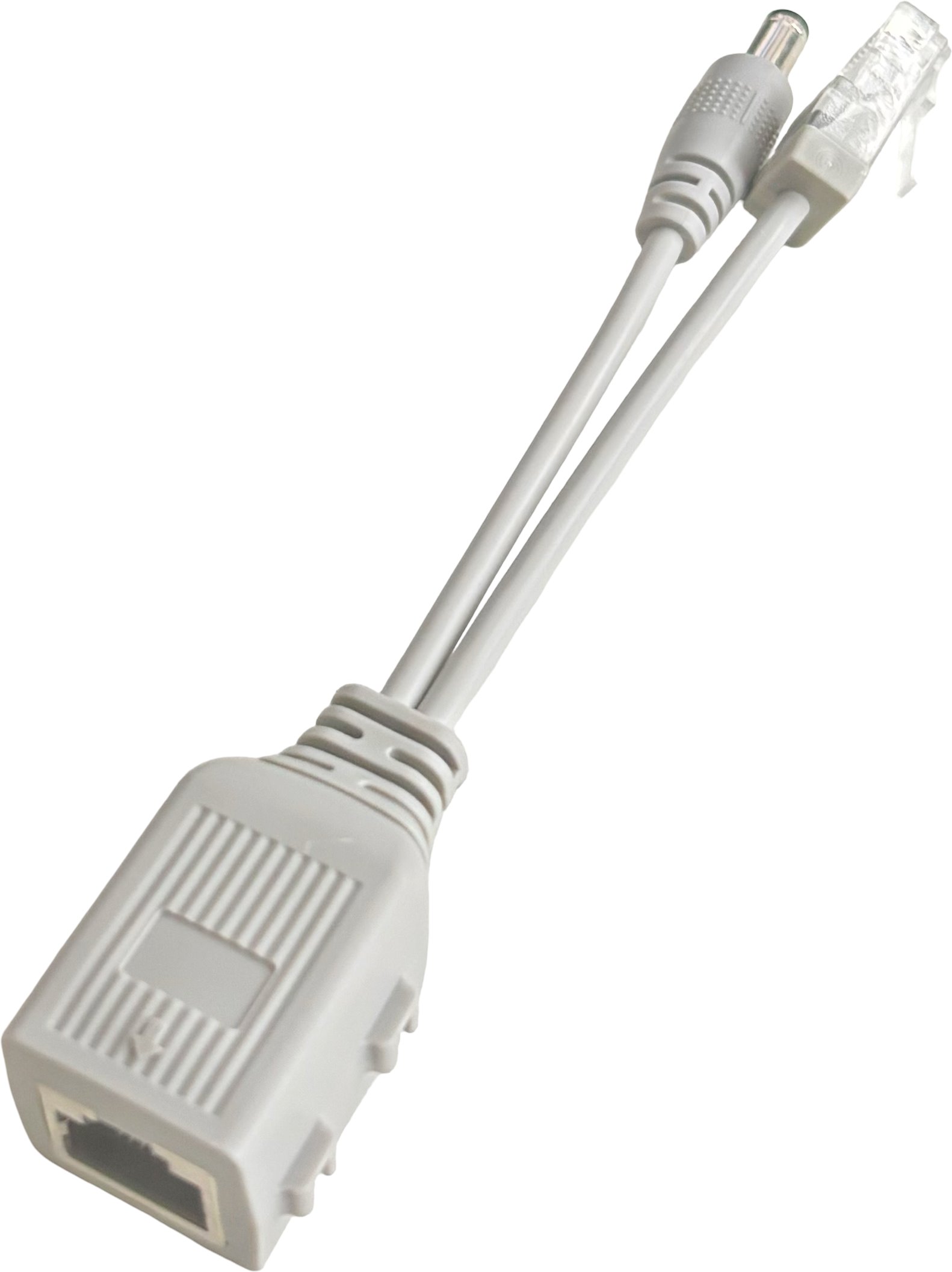

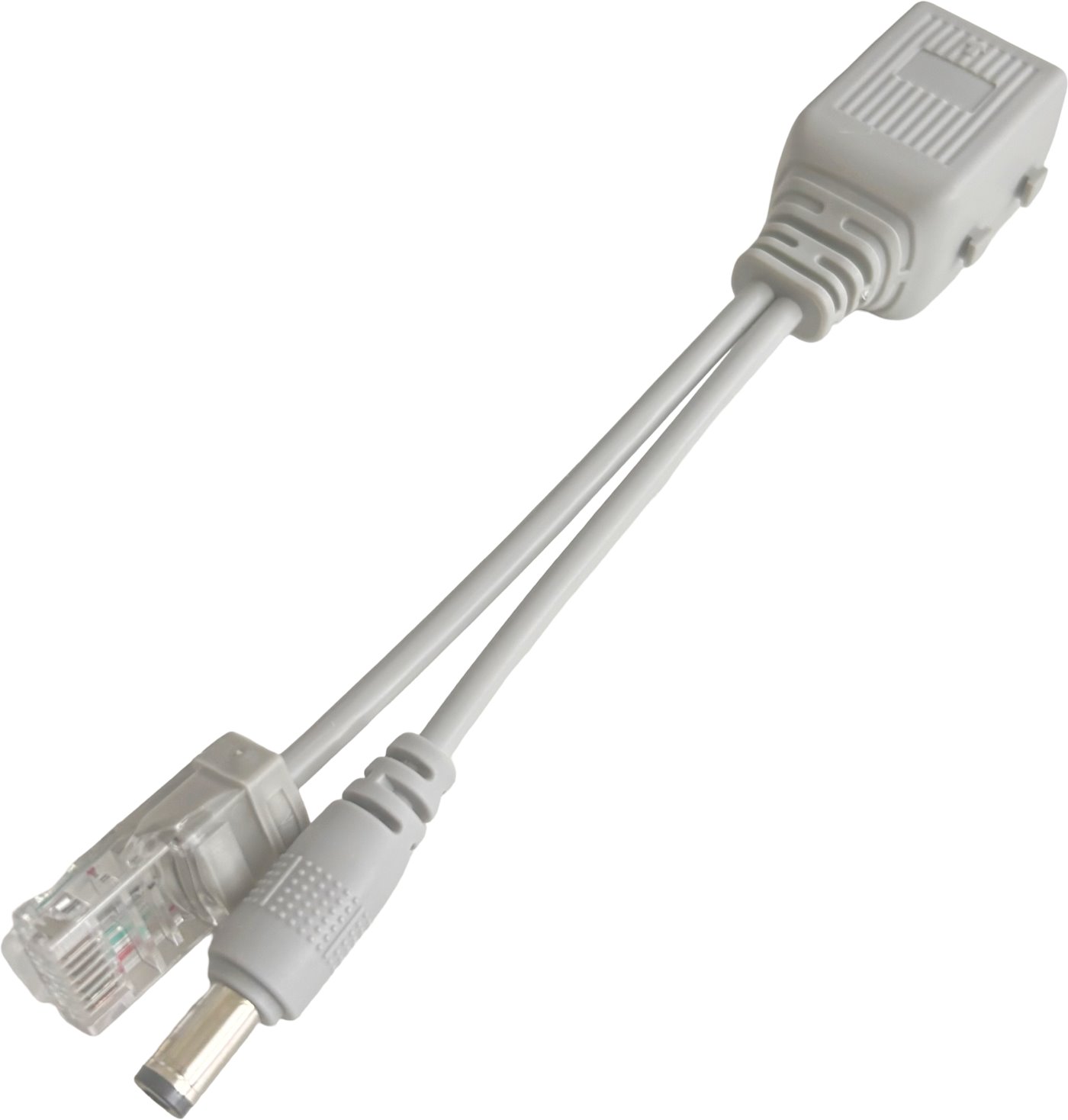

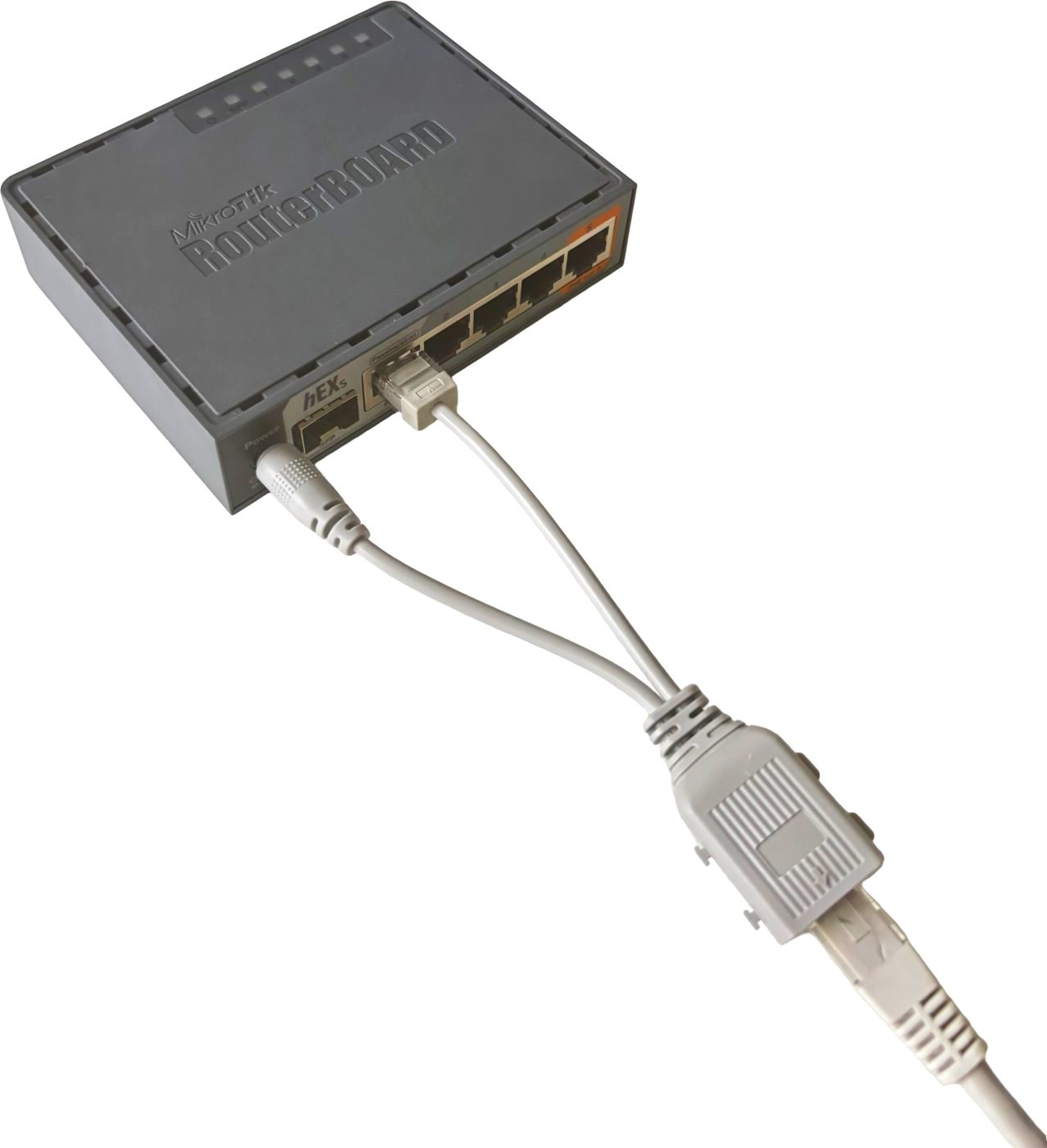

The passive PoE splitter for passive PoE is designed to power devices such as MikroTik, Ubiquiti, cameras, and other non-PoE-supported equipment. This white splitter (extractor) with a 100 Mbps speed enables power delivery to any device with a compatible 2.1/5.5 mm power connector. Accordingly, power is transmitted via spare pins 4,5 (+) and 7,8 ( ... More information
ManufacturerConexpro
PNAFA-2
EAN0710497563987
Where to buyAsk a question

Product description

The passive PoE splitter for passive PoE is designed to power devices such as MikroTik, Ubiquiti, cameras, and other non-PoE-supported equipment. This white splitter (extractor) with a 100 Mbps speed enables power delivery to any device with a compatible 2.1/5.5 mm power connector. Accordingly, power is transmitted via spare pins 4,5 (+) and 7,8 (-). It is important to note that this PoE splitter does not comply with 802.3af/at specifications. The power limit is set to 1A at a voltage range of 12 to 48 V DC.

Do you have a question or comment about this product?
Ask a question

Technical parameters

Connectors and interfaces

Ethernet speed [Mb/s]10/100

Power

Pin powering4,5 (+), 7,8 (-)
The input voltage [V]12 .. 48V DC
Output Power [W]48
PoE-Out standardsPassive - according to voltage
PoE Out ports1
Output Voltage [V]12 .. 48V DC
Output Current [A]1

Physical characteristics

Length [mm]145
Output connector [mm]5.5 / 2.1
Operating temperature [°C]0 up to 40
