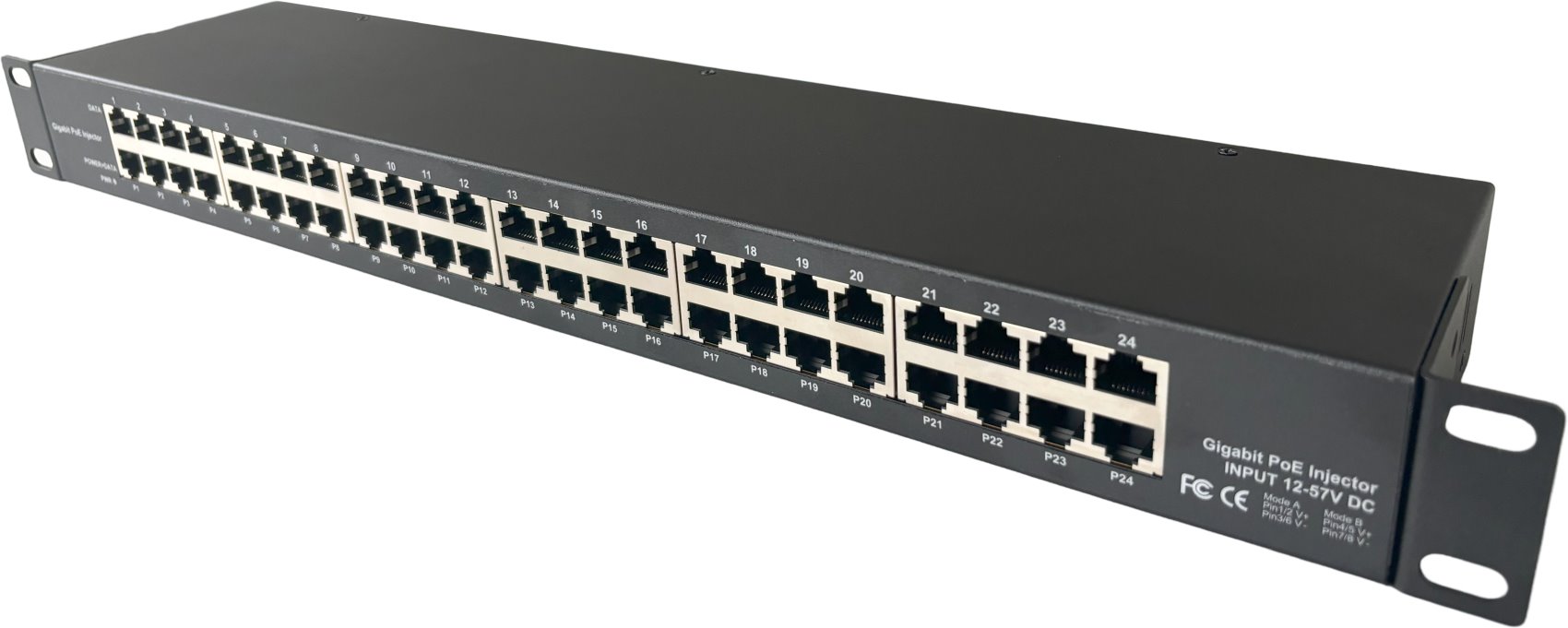

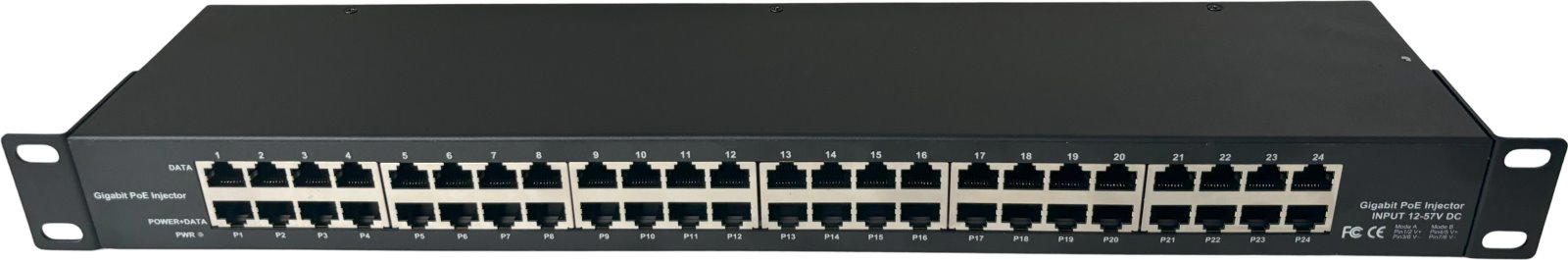

Conexpro's passive Gigabit PoE rack panel enables the power of up to 24 devices with passive PoE support, ideal for active elements such as MikroTik or Ubiquiti Networks Wi-Fi units. The panel is adapted for installation in a 19" data rack (1U height). Each device is served via 1 data port and 1 port with a combination of data and power. On the back side are two power connectors (2.1/5.5 mm) and terminal blocks for modes A and B.Input voltage range 12-57 V DC with a limit of 1A per port and providing a total power of up to 600W with the appropriate power supply.

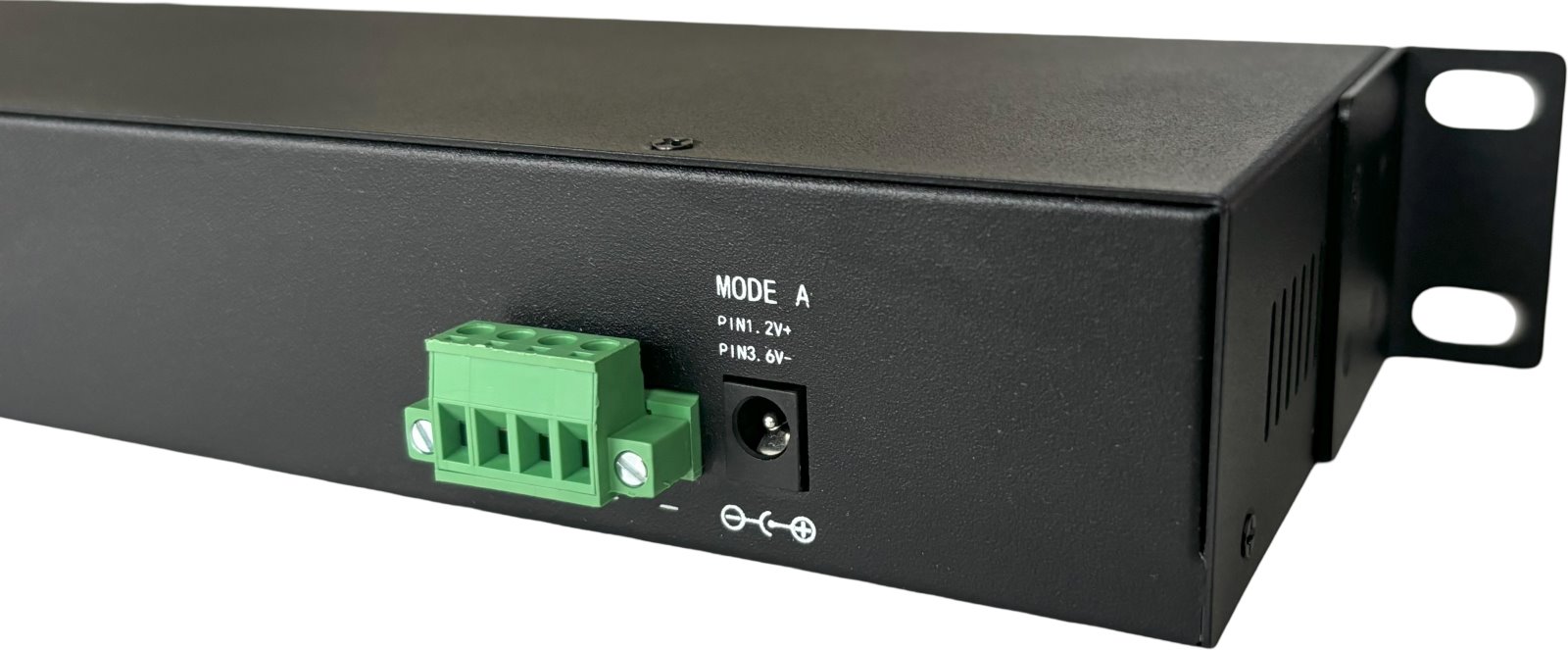

• Mode A: Supports active devices powered via pins 1/2+ and 3/6-, such as IP cameras, IP phones, wireless units and other devices using power 802.3af/at.
standards

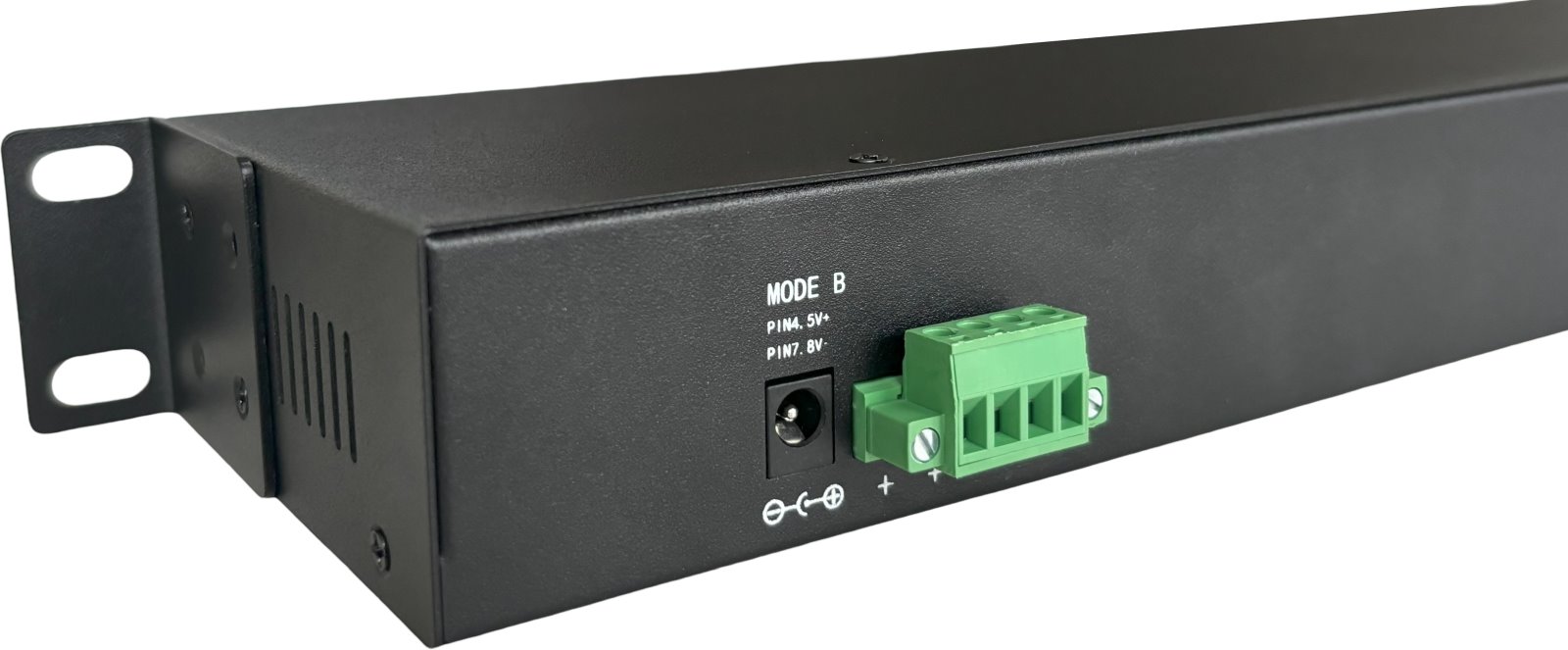

• Mode B: Compatible with active devices that use pins 4/5+ and 7/8- for power, such as Ubiquiti Networks, MikroTik and others.

Before connecting a device, it is a good idea to verify that it supports power on the specific pins for which the power is connected - Mode A or Mode B, as incorrect connection can lead to the destruction of the connected device.

Key Features

• 19" rackmount version
• 24 ports with passive PoE support
• LED light for indicating the power adapter
• 1A current limit on each port
• 2 input power connectors and terminal blocks for mode A and B - standard jack 2.1 / 5.5 mm
• Input voltage 12 - 57 V, maximum power 600 W
