Conexpro STP cable, CAT6A, LSZH B2ca, 305m, white

Conexpro STP cable, CAT6A, LSZH B2ca, 305m, white
Conexpro category 6A halogen-free STP cable is designed for internal distribution of structured cabling and meets international standards without problems including all current amendments. The cable enables data transfer at speeds up to 10 Gbps (10G Base-T). The jacket has an elegant white color, with shielding of individual wires, grounding wire ... More information
ManufacturerConexpro
PN6ASTP-LS
EAN0710497560917

Product description

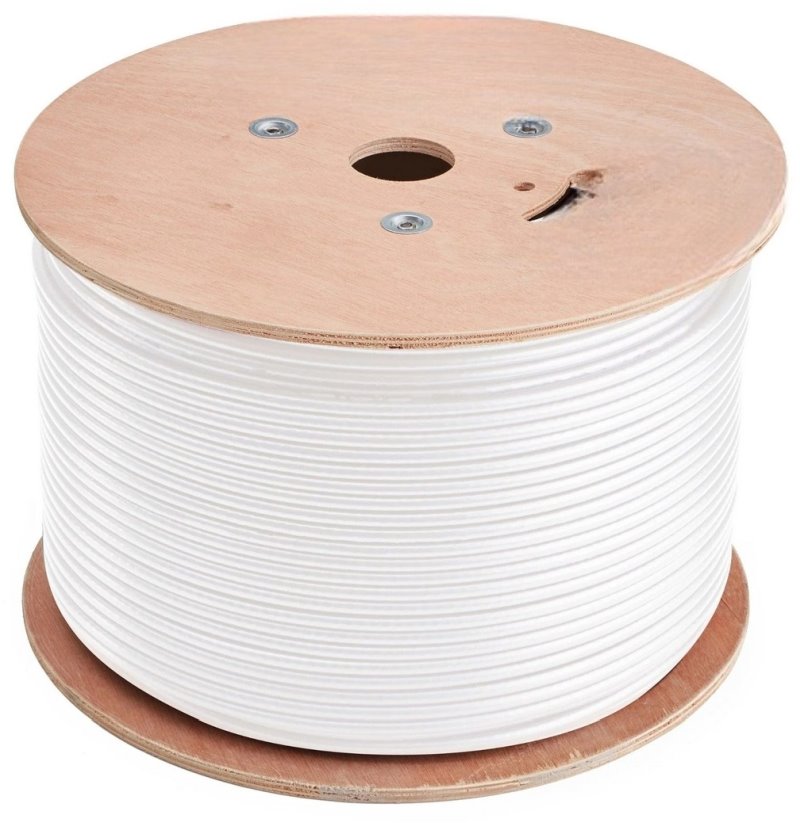

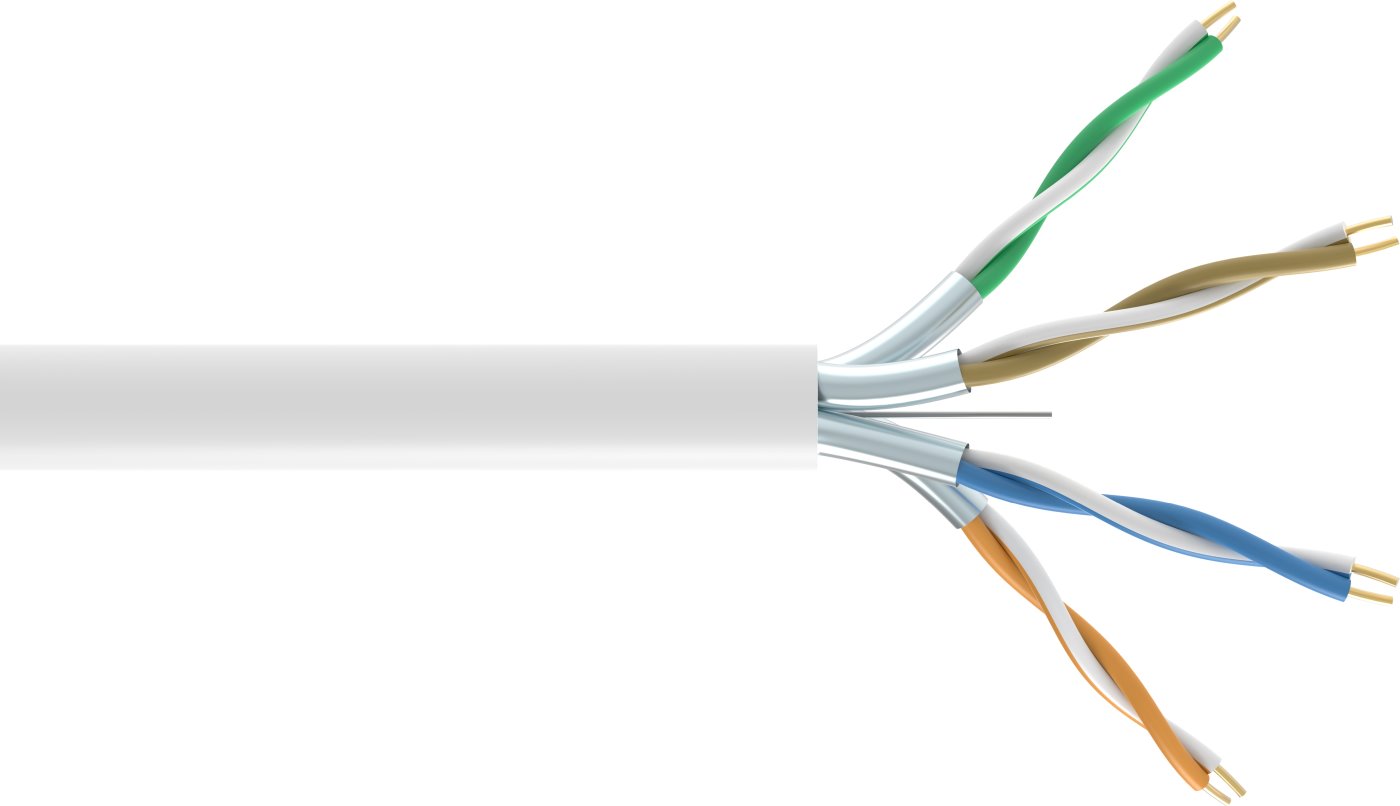

Conexpro category 6A halogen-free STP cable is designed for internal distribution of structured cabling and meets international standards without problems including all current amendments. The cable enables data transfer at speeds up to 10 Gbps (10G Base-T). The jacket has an elegant white color, with shielding of individual wires, grounding wire and is made of LSZH material complying with CPR class B2ca. The wires are made of high-quality copper wire with a cross-section of AWG23. The cable is wound on a quality wooden spool and is marked after every meter from 0 to 305 m.

Do you have a question or comment about this product?

Download

Technical parameters

Physical characteristics

Installation temperature [°C]0 up to 50
Cable typeSolid
Drain wireYes
Shielding typeSTP (U/FTP)
Conductor wire gauge23 AWG
Conductor diameter [mm]0,7
Conductor and insulation diameter [mm]1,33
PurposeIndoor
Conductor materialCopper
Sheath materialLSZH
Length [m]305
Outer diameter [mm)7,6
Storage temperature [°C]-20 up to 60
ColorWhite

General

CPR classB2ca
CategoryCAT6A
Ethernet support10G Base-T
Bandwidth [MHz]500
