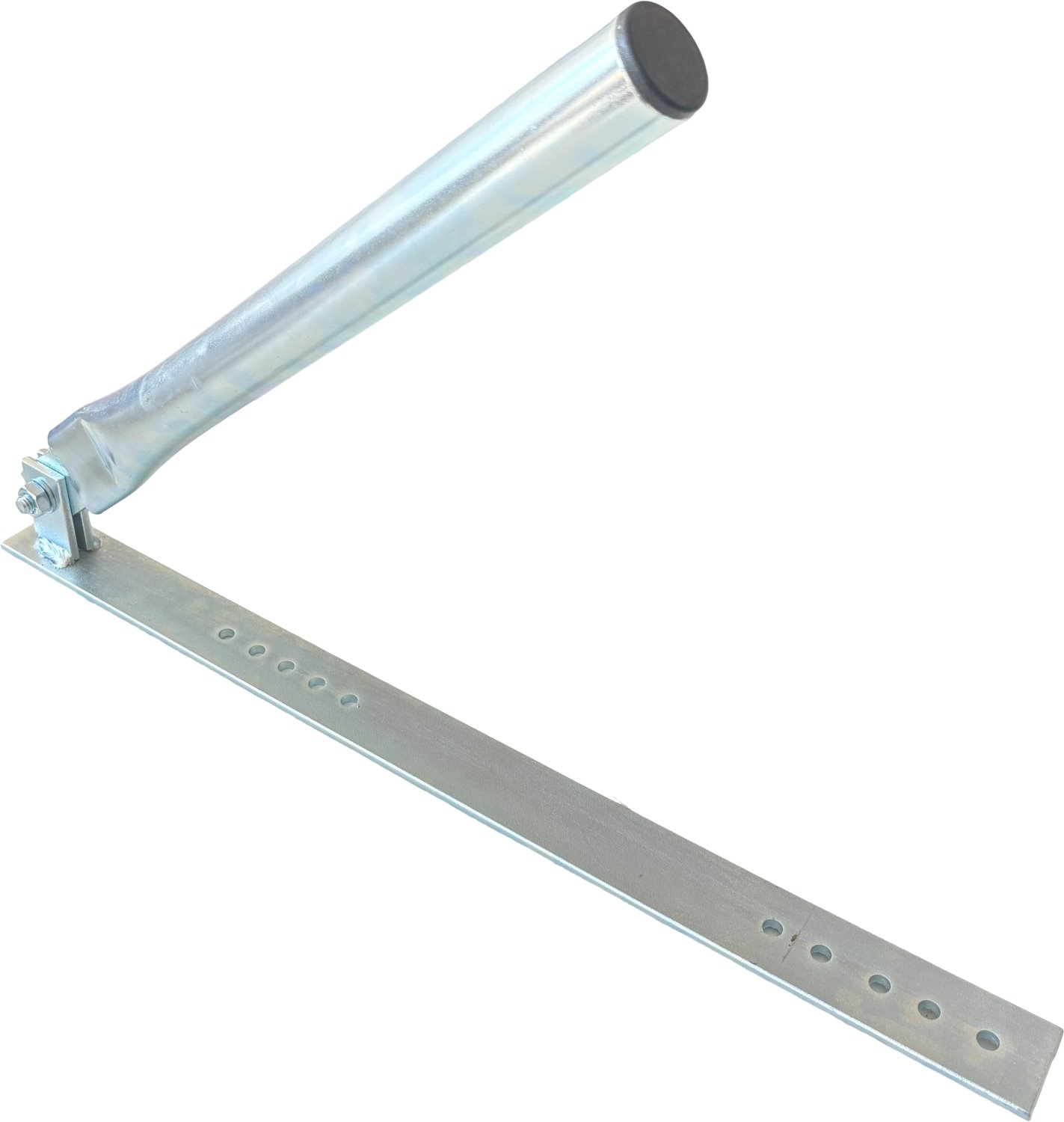

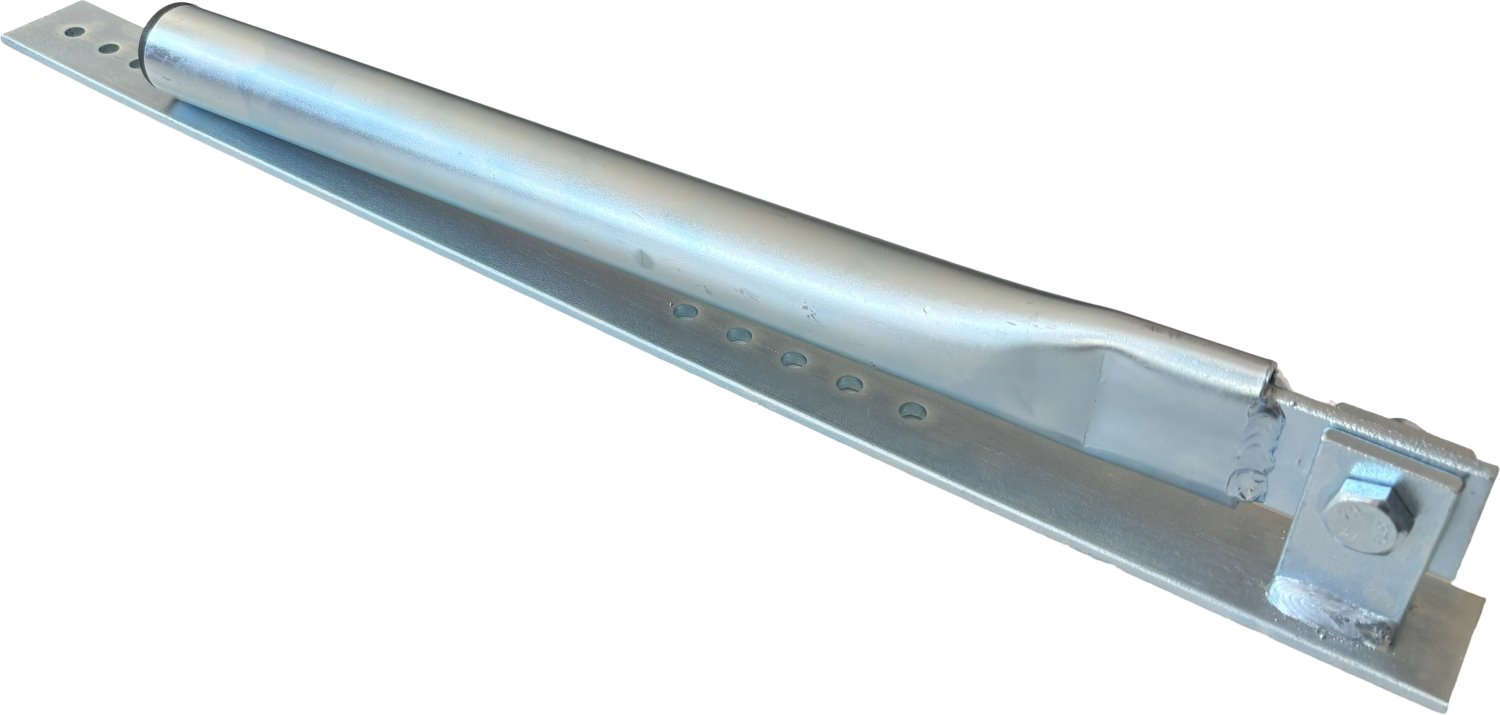

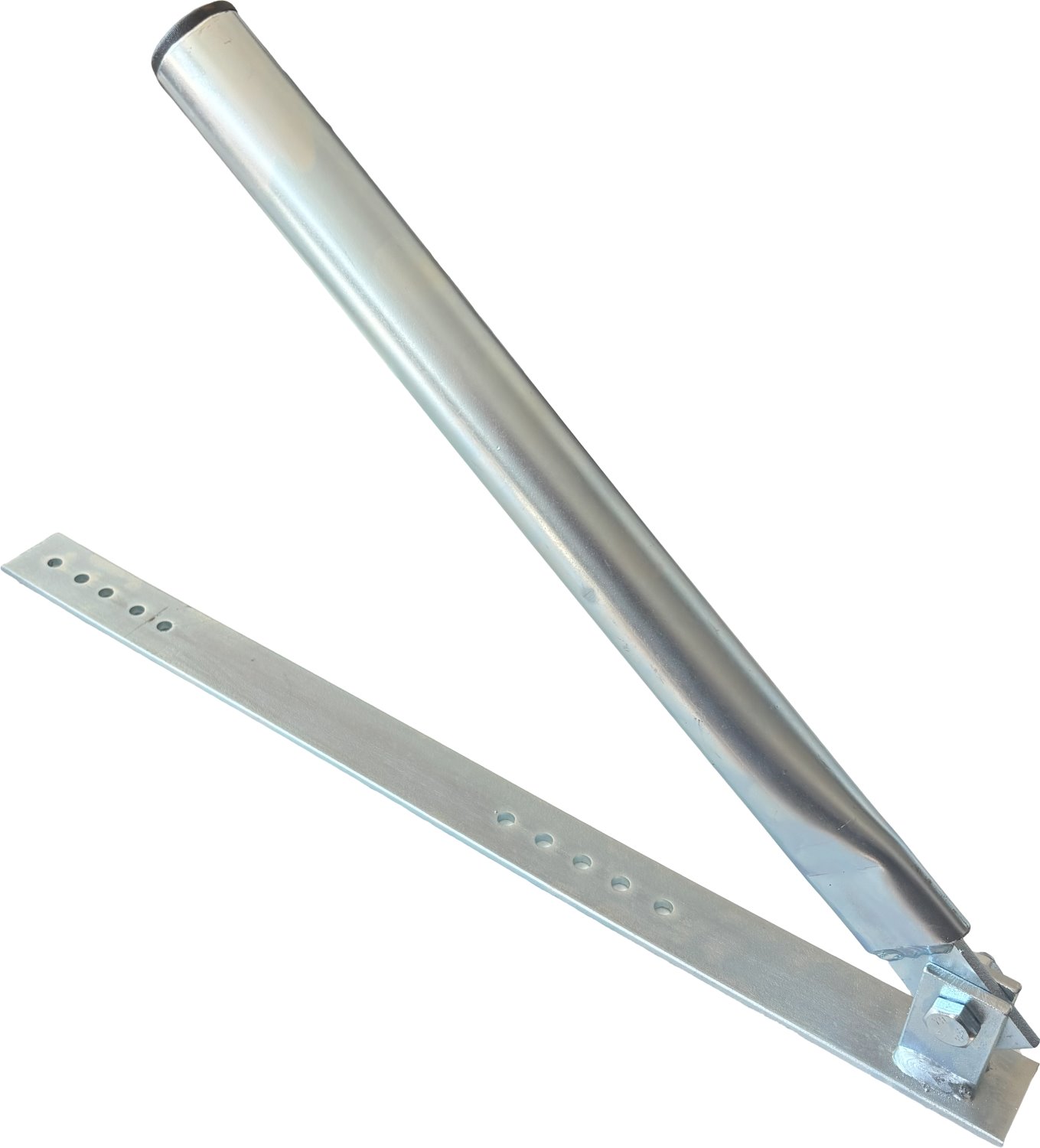

Antenna mount with tilt adjustment for installation under roof tiles onto a rafter, length 40cm, diameter 35mm

Antenna mount with tilt adjustment for installation under roof tiles onto a rafter, length 40cm, diameter 35mm
Antenna mount with tilt adjustment for installation under roof tiles onto a rafter, length 40cm, diameter 35mmAntenna mount with tilt adjustment for installation under roof tiles onto a rafter, length 40cm, diameter 35mmAntenna mount with tilt adjustment for installation under roof tiles onto a rafter, length 40cm, diameter 35mmAntenna mount with tilt adjustment for installation under roof tiles onto a rafter, length 40cm, diameter 35mm

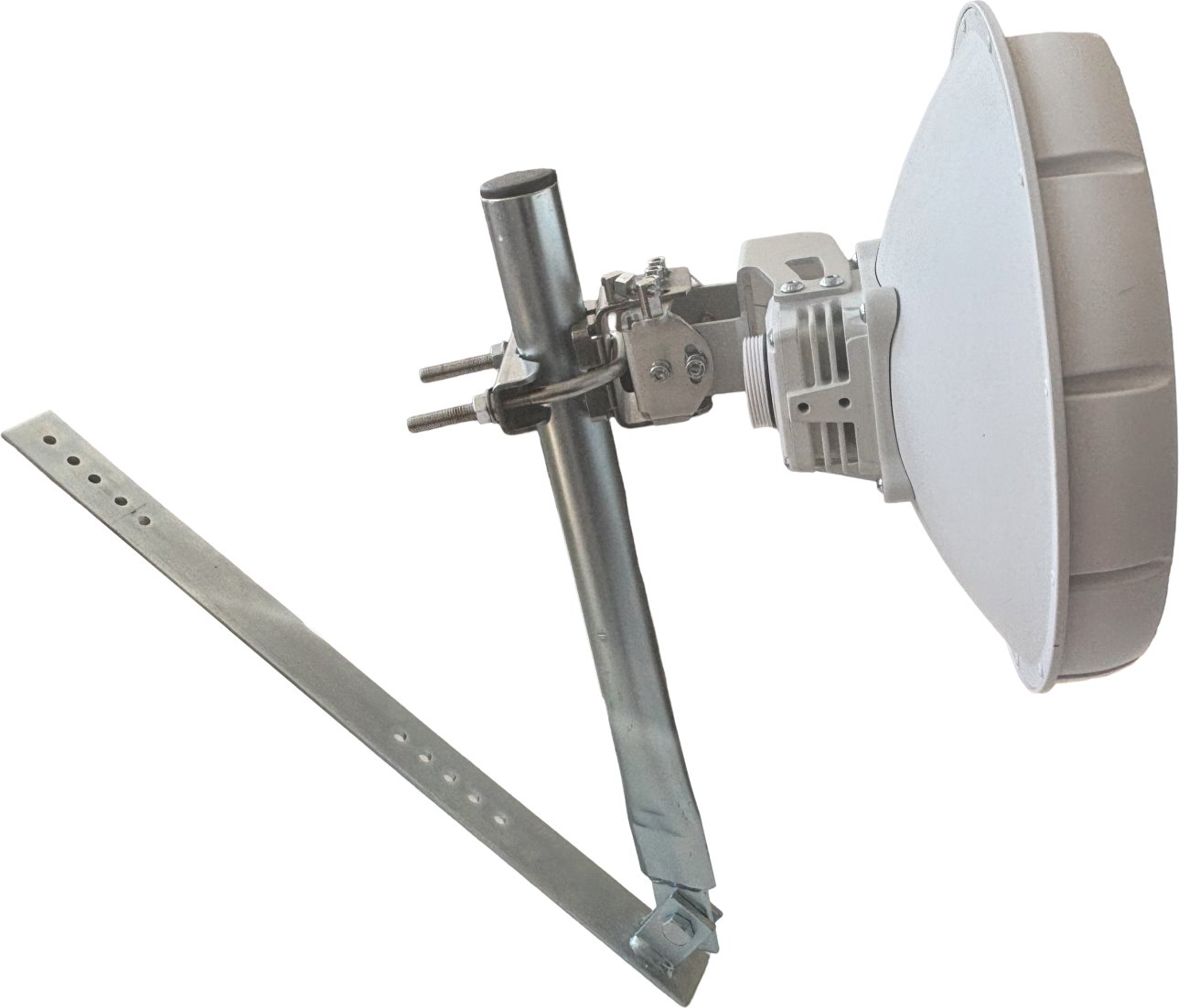

The antenna mount for installation under a roof tile onto a beam/rafter is designed for mounting beneath roof tiles directly onto a beam. With a tube height of 40 cm and a diameter of 35 mm, it is suitable for mounting Wi-Fi and smaller DVB-T antennas. The galvanized zinc coating ensures high corrosion resistance. An ideal solution for under-roof ... More information
ManufacturerConexpro
PNKM30550S
EAN0710497567046
Where to buyAsk a question

Product description

The antenna mount for installation under a roof tile onto a beam/rafter is designed for mounting beneath roof tiles directly onto a beam. With a tube height of 40 cm and a diameter of 35 mm, it is suitable for mounting Wi-Fi and smaller DVB-T antennas. The galvanized zinc coating ensures high corrosion resistance. An ideal solution for under-roof installations requiring strong and durable mounting with adjustable tilt.

Do you have a question or comment about this product?
Ask a question

Technical parameters

Physical characteristics

Surface treatmentGalvanized
Diameter of pipe [mm]35
Length [cm]40
Weight [kg]1,72
