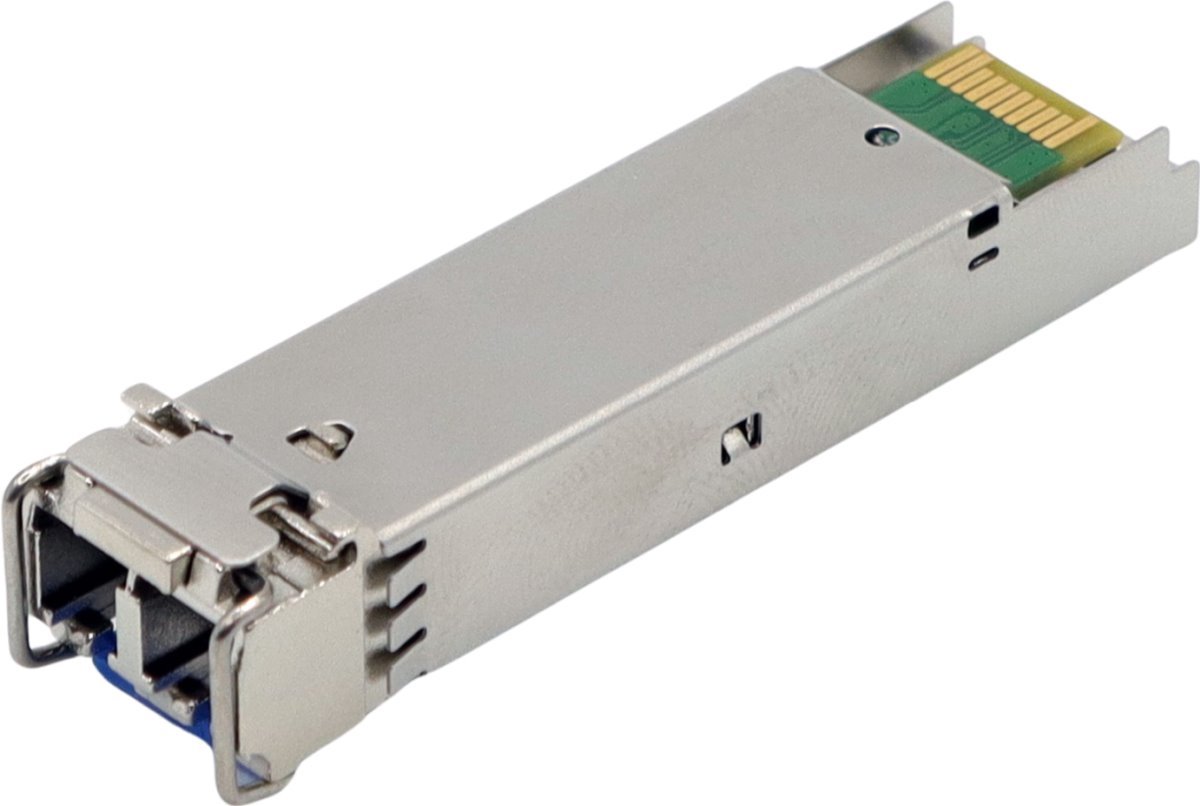

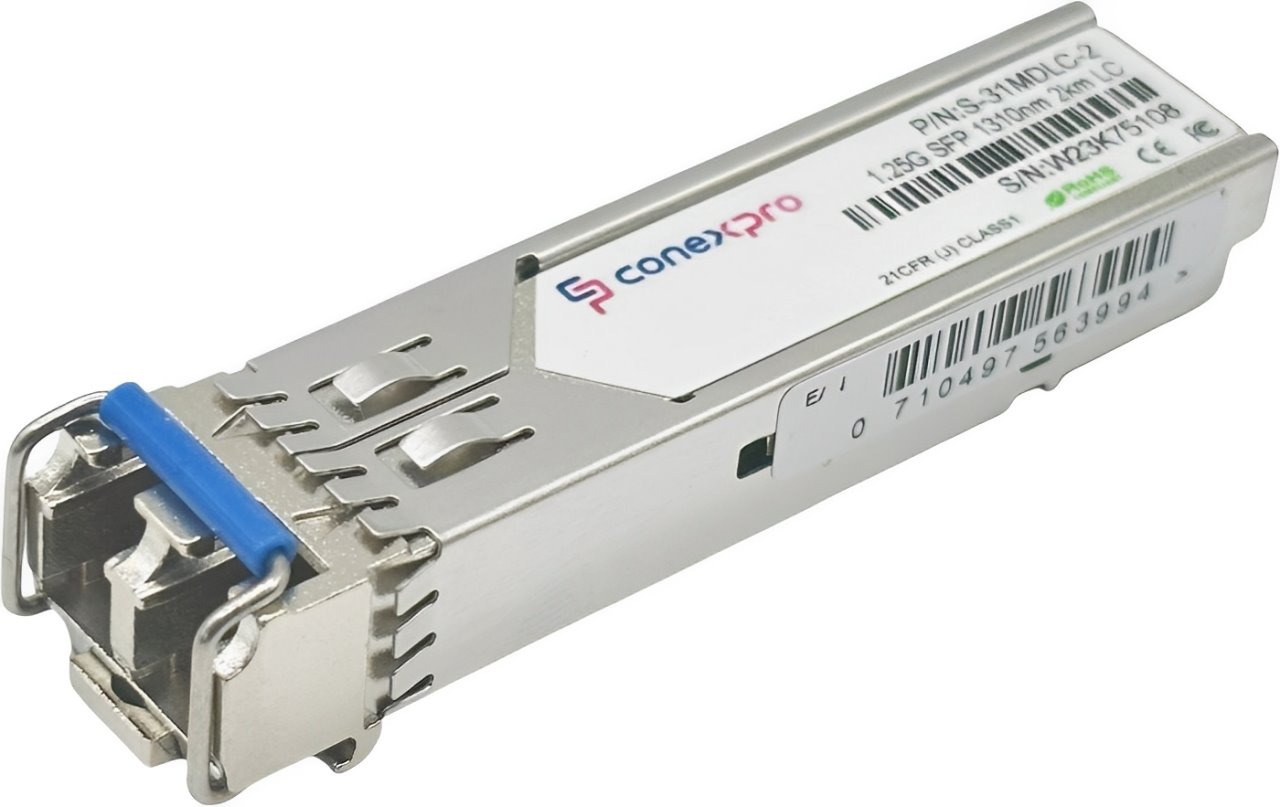

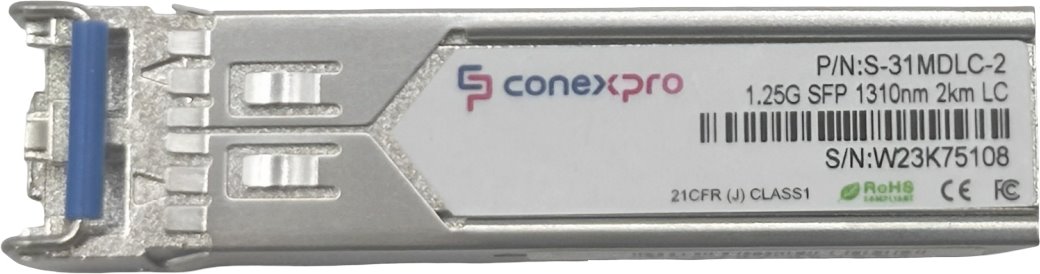

Conexpro 1.25G SFP optical module, MM, 1310nm, 2km, 2x LC, DDM, Long Reach

Conexpro 1.25G SFP optical module, MM, 1310nm, 2km, 2x LC, DDM, Long Reach
Conexpro 1.25G SFP optical module, MM, 1310nm, 2km, 2x LC, DDM, Long ReachConexpro 1.25G SFP optical module, MM, 1310nm, 2km, 2x LC, DDM, Long ReachConexpro 1.25G SFP optical module, MM, 1310nm, 2km, 2x LC, DDM, Long Reach
The Gigabit Multimode SFP Long Reach module from Conexpro features an atypical wavelength (Tx and Rx) of 1310 nm, a data rate of 1 Gbps, and is equipped with two LC connectors with UPC polishing. It is designed for distances of up to 2 km. This module offers universal compatibility, meaning it can operate with almost any available active network d ... More information
ManufacturerConexpro
PNS-31MDLC-2
EAN0710497563994
Where to buyAsk a question

Product description

The Gigabit Multimode SFP Long Reach module from Conexpro features an atypical wavelength (Tx and Rx) of 1310 nm, a data rate of 1 Gbps, and is equipped with two LC connectors with UPC polishing. It is designed for distances of up to 2 km. This module offers universal compatibility, meaning it can operate with almost any available active network device. Naturally, it supports optical link diagnostics via the DDM (Digital Diagnostic Monitoring) function.

Do you have a question or comment about this product?
Ask a question

Technical parameters

Optics

FormatSFP
For cable typeMulti Mode
Transmission speed1 Gbps
Wavelength - Tx/Rx [nm]1310
Distance [km]2
Transfer type2-fiber
Polishing typeUPC

Connectors and interfaces

Optical Connectors(2) LC

Physical characteristics

Operating temperature [°C]0 up to 70

General

SFP CompatibilityUniversal

Software

DDMI - diagnosticsYes
