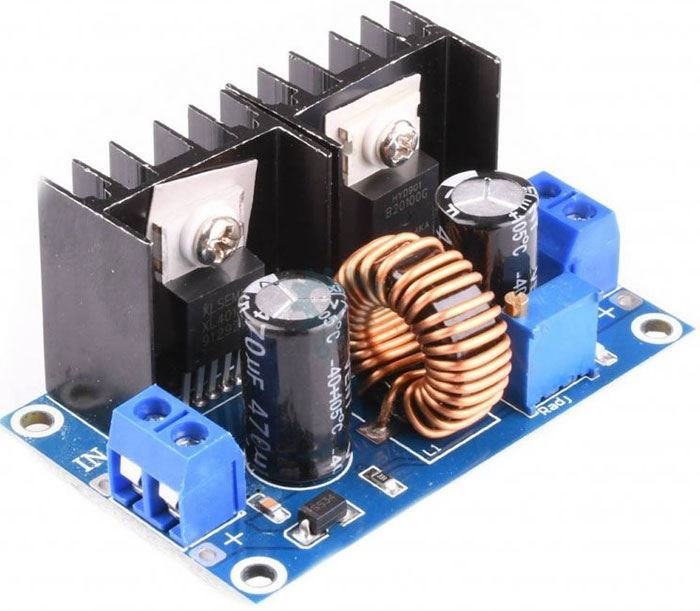

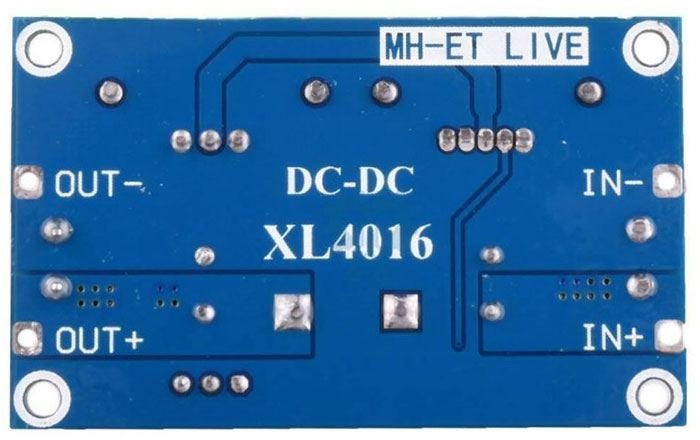

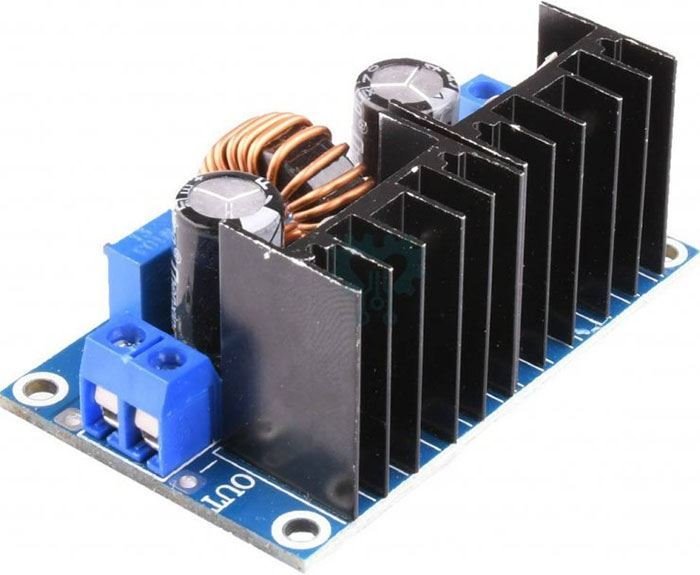

Conexpro step-down voltage converter, input 4-38V, output 1-36V, 8A, 250W

Conexpro step-down voltage converter, input 4-38V, output 1-36V, 8A, 250W
Conexpro step-down voltage converter, input 4-38V, output 1-36V, 8A, 250WConexpro step-down voltage converter, input 4-38V, output 1-36V, 8A, 250WConexpro step-down voltage converter, input 4-38V, output 1-36V, 8A, 250W
A high-performance non-isolated step-down converter allows voltage reduction from 4 to 38V to adjustable 1.25 to 36V (output voltage will be equal to or lower than the input voltage). It provides a continuous output current of 5A and can handle up to 8A with active cooling, making it suitable for demanding applications. With a maximum power of 250 ... More information
ManufacturerConexpro
PNPSUSD-M410K
Where to buyAsk a question

Product description

A high-performance non-isolated step-down converter allows voltage reduction from 4 to 38V to adjustable 1.25 to 36V (output voltage will be equal to or lower than the input voltage). It provides a continuous output current of 5A and can handle up to 8A with active cooling, making it suitable for demanding applications. With a maximum power of 250 W and efficiency up to 92%, it minimizes energy losses. The compact design with dimensions of 60 × 37 × 27 mm facilitates integration into electronic systems. The product requires professional installation.

  • Input voltage: 4 to 38V
  • Output voltage: 1.25 to 36V – adjustable
  • Output current: 5A / 8A max. with active cooling
  • Dimensions: 60 × 37 × 27 mm
Do you have a question or comment about this product?
Ask a question

Technical parameters

Power

The input voltage [V]4 .. 38V DC
Output Power [W]250
Maximum output current [A]8
Output Voltage [V]1.25 .. 36V DC
Efficiency [%]92

Physical characteristics

ConstructionPCB-mounted
FansWithout fan
Weight [g]39
Height [mm]27
Width [mm]37
Depth [mm]60

General

Converter typeDC/DC
