Conexpro step-up voltage converter, input 8-50V, output 12-60V, 12A, 400W

Conexpro step-up voltage converter, input 8-50V, output 12-60V, 12A, 400W
Conexpro step-up voltage converter, input 8-50V, output 12-60V, 12A, 400WConexpro step-up voltage converter, input 8-50V, output 12-60V, 12A, 400WConexpro step-up voltage converter, input 8-50V, output 12-60V, 12A, 400W
The powerful non-isolated step-up converter allows you to increase the voltage from 8.5 to 50V to adjustable 12–60V (the output voltage will be equal to or greater than the input voltage). It provides a continuous output current of up to 7A with the possibility of a peak load of 12A with active cooling. With efficiency up to 95%, it minimizes ener ... More information
ManufacturerConexpro
PNPSUSU-M399B
Where to buyAsk a question

Product description

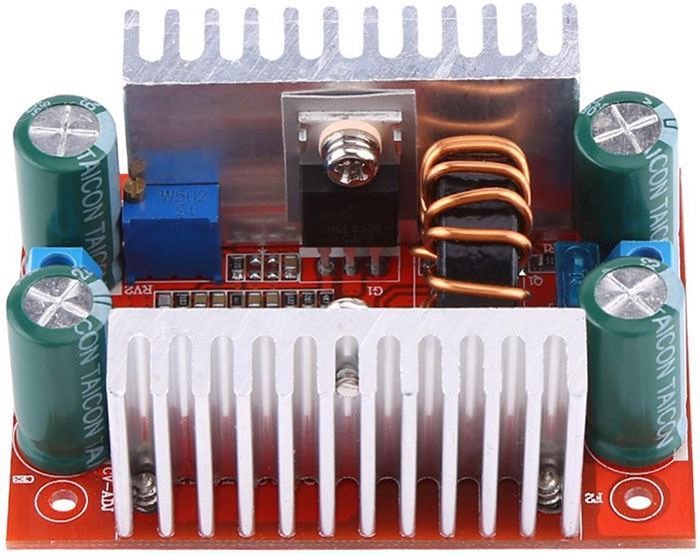

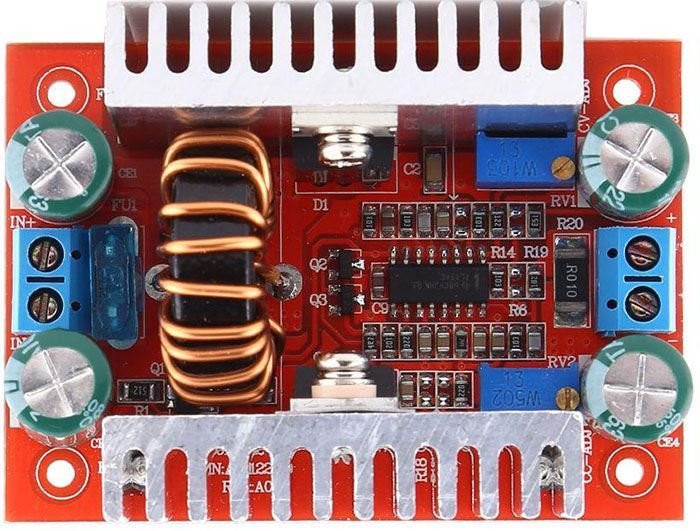

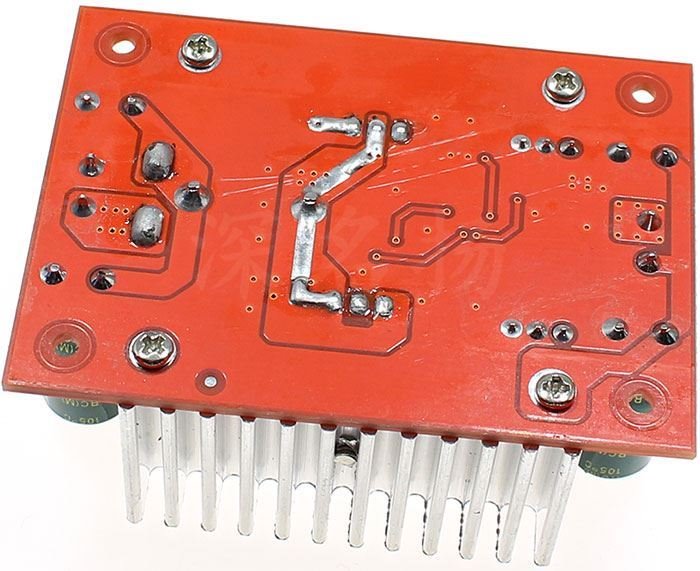

The powerful non-isolated step-up converter allows you to increase the voltage from 8.5 to 50V to adjustable 12–60V (the output voltage will be equal to or greater than the input voltage). It provides a continuous output current of up to 7A with the possibility of a peak load of 12A with active cooling. With efficiency up to 95%, it minimizes energy loss and ensures efficient operation. Compact dimensions of 67 × 47 × 27 mm, including passive cooling, allow easy integration into various DIY applications. The device requires professional installation.

  • Input voltage: 8.5 to 50 V
  • Output voltage: 12 to 60 V – adjustable
  • Output current: 7A / 12A max. with active cooling
  • Dimensions: 37 × 47 × 27 mm
Do you have a question or comment about this product?
Ask a question

Technical parameters

Power

The input voltage [V]8.5 .. 50V DC
Output Power [W]400
Maximum output current [A]12
Output Voltage [V]12 .. 60V DC
Efficiency [%]95

Physical characteristics

ConstructionPCB-mounted
FansWithout fan
Weight [g]60
Height [mm]27
Depth [mm]47
Width [mm]66

General

Converter typeDC/DC
