A high-performance non-isolated step-up converter allows increasing the voltage from 8.5 to 16V to an adjustable 10–50V (the output voltage will be the same or higher than the input voltage). It provides a continuous output current of up to 8A with a recommended load of up to 6A. With an efficiency of up to 96%, it minimizes energy losses and ensu ... More information
ManufacturerConexpro
PNPSUSU-M400
Where to buyAsk a question

Product description

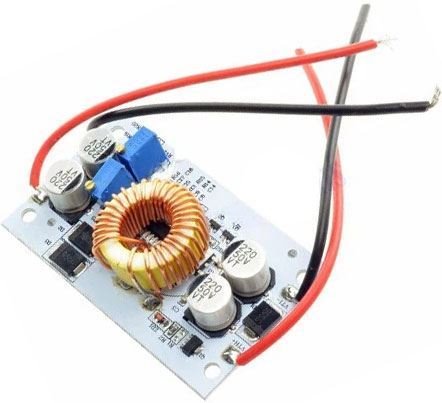

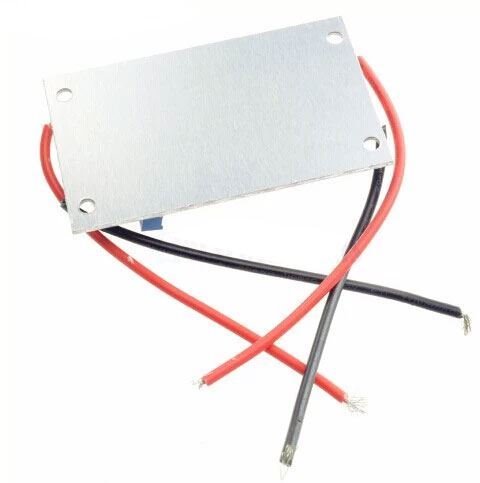

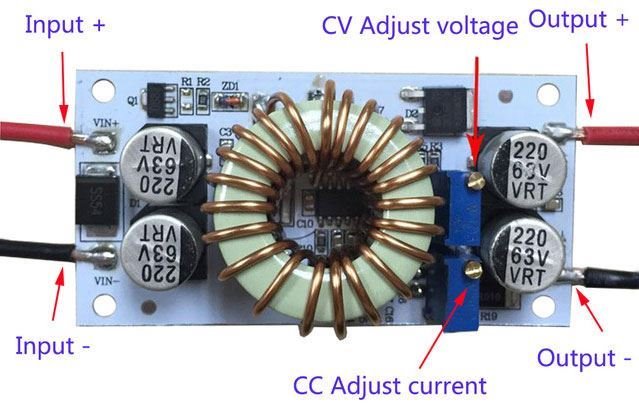

A high-performance non-isolated step-up converter allows increasing the voltage from 8.5 to 16V to an adjustable 10–50V (the output voltage will be the same or higher than the input voltage). It provides a continuous output current of up to 8A with a recommended load of up to 6A. With an efficiency of up to 96%, it minimizes energy losses and ensures efficient operation. The compact dimensions of 70 × 36 × 17 mm, including passive cooling, allow easy integration into various DIY applications. The device requires professional installation.

  • Input voltage: 8.5 to 16V
  • Output voltage: 10 to 50V – adjustable
  • Output current: 8A / recommended max. 6A
  • Dimensions: 70 × 36 × 17 mm
  • Cables length: 11 cm
Do you have a question or comment about this product?
Ask a question

Technical parameters

Power

The input voltage [V]8.5 .. 16V DC
Output Power [W]250
Maximum output current [A]8
Output Voltage [V]10 .. 50V DC
Efficiency [%]96

Physical characteristics

ConstructionPCB-mounted
FansWithout fan
Weight [g]60
Height [mm]17
Depth [mm]36
Width [mm]70

General

Converter typeDC/DC
