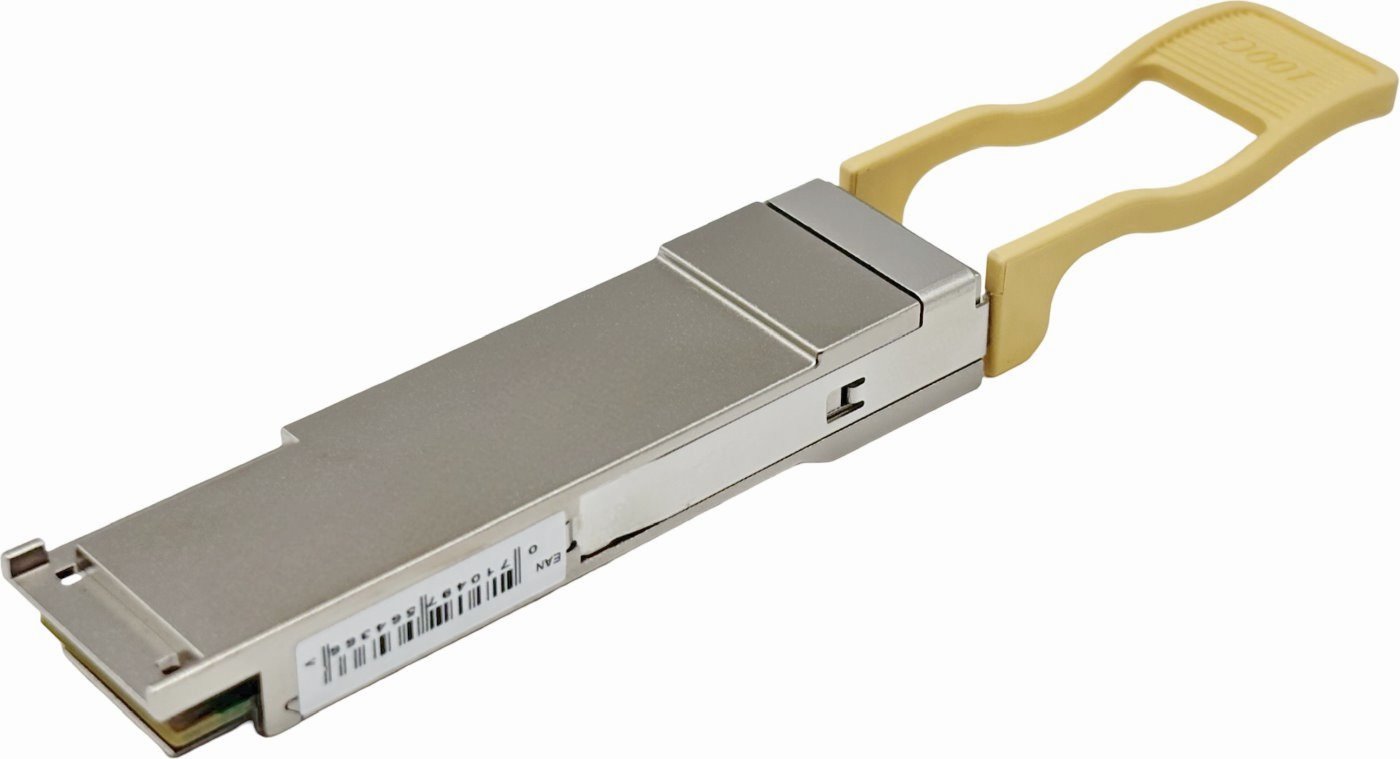

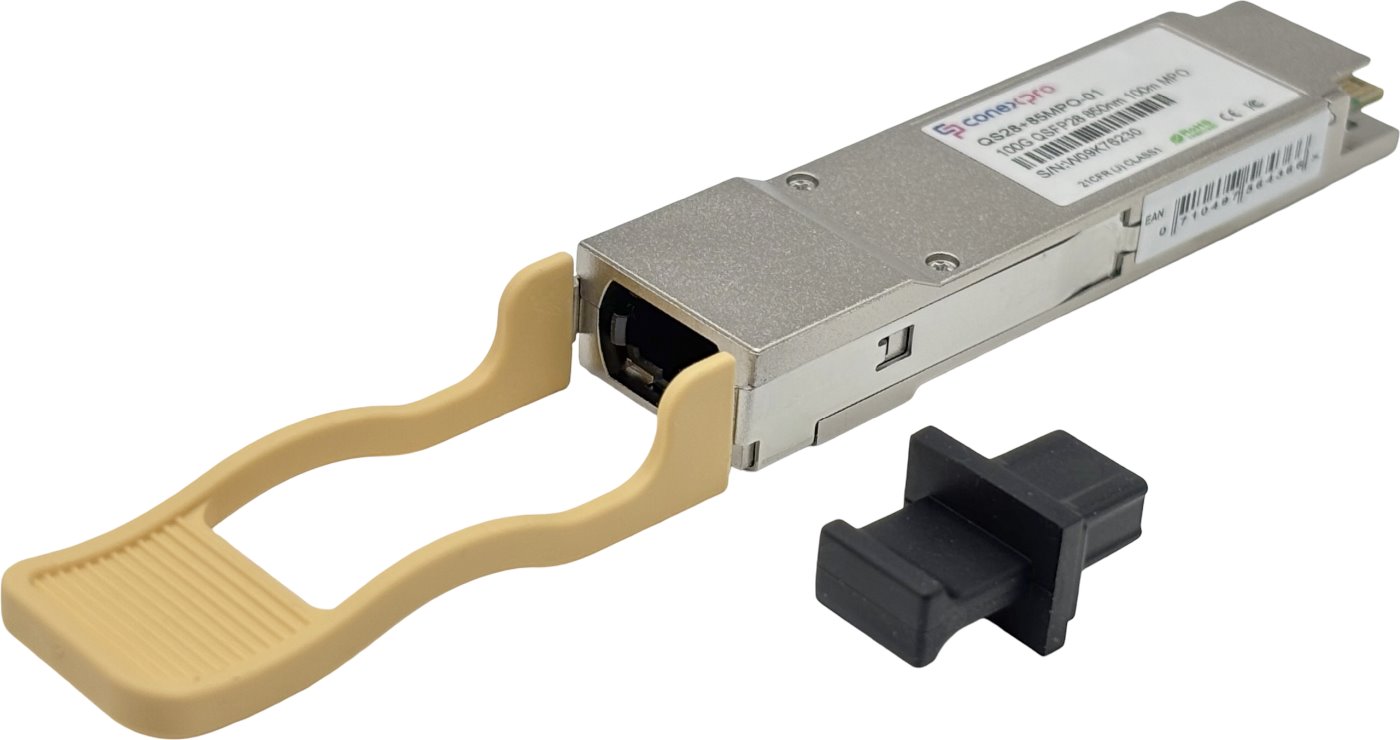

Conexpro 100G QSFP28 optical module, MM, 850nm, 100m, MPO, DDM

Conexpro 100G QSFP28 optical module, MM, 850nm, 100m, MPO, DDM
Conexpro 100G QSFP28 optical module, MM, 850nm, 100m, MPO, DDMConexpro 100G QSFP28 optical module, MM, 850nm, 100m, MPO, DDM
100 Gigabit Multimode QSFP28 module from manufacturer Conexpro designed for backbone connections with wavelength (Tx and Rx) 850 nm, speed of 100 Gbps is equipped with a 12-fiber MPO connector and is intended for connections over distances up to 100 m. This module provides universal compatibility, meaning it is capable of working with almost all a ... More information
ManufacturerConexpro
PNQS28+85MPO-01
EAN0710497564366
Where to buyAsk a question

Product description

100 Gigabit Multimode QSFP28 module from manufacturer Conexpro designed for backbone connections with wavelength (Tx and Rx) 850 nm, speed of 100 Gbps is equipped with a 12-fiber MPO connector and is intended for connections over distances up to 100 m. This module provides universal compatibility, meaning it is capable of working with almost all available active elements. Of course, it supports optical link diagnostics via the DDM (Digital Diagnostic Monitoring) function.

Key Features

  • Format: QSFP28
  • Transmission speed: 100 Gbps
  • For fiber type: Multimode
  • Connectors: 1x MPO (12 fibers)
  • Range: up to 100 m
  • Wavelength: 850 nm (Tx and RX)
Do you have a question or comment about this product?
Ask a question

Technical parameters

Optics

FormatQSFP28
For cable typeMulti Mode
Transmission speed100 Gbps
Wavelength - Tx/Rx [nm]850
Distance [km]0,1
Transfer type12-fiber
Polishing typeUPC

Connectors and interfaces

Optical ConnectorsMPO

Physical characteristics

Operating temperature [°C]0 up to 70

General

SFP CompatibilityUniversal

Software

DDMI - diagnosticsYes
