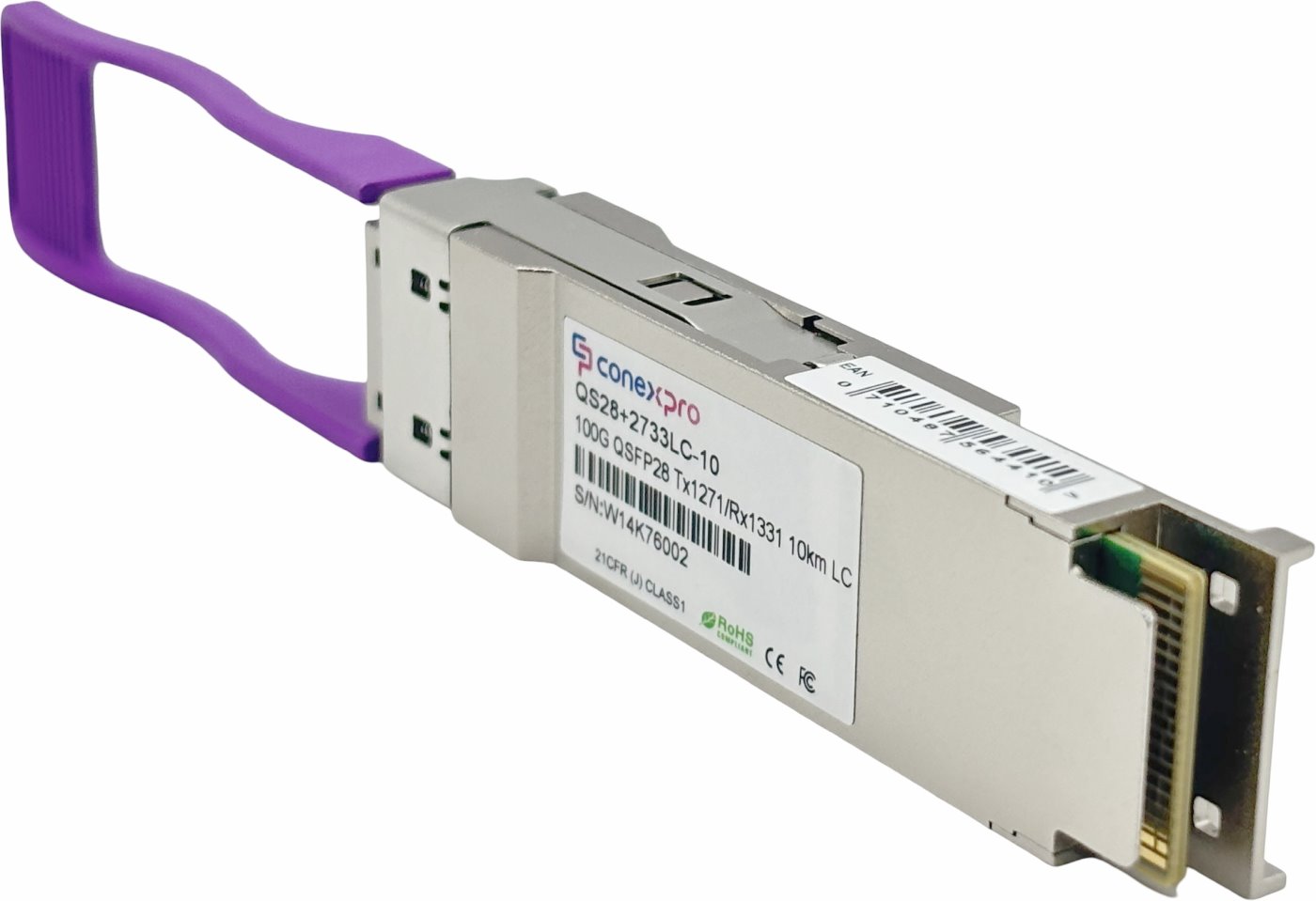

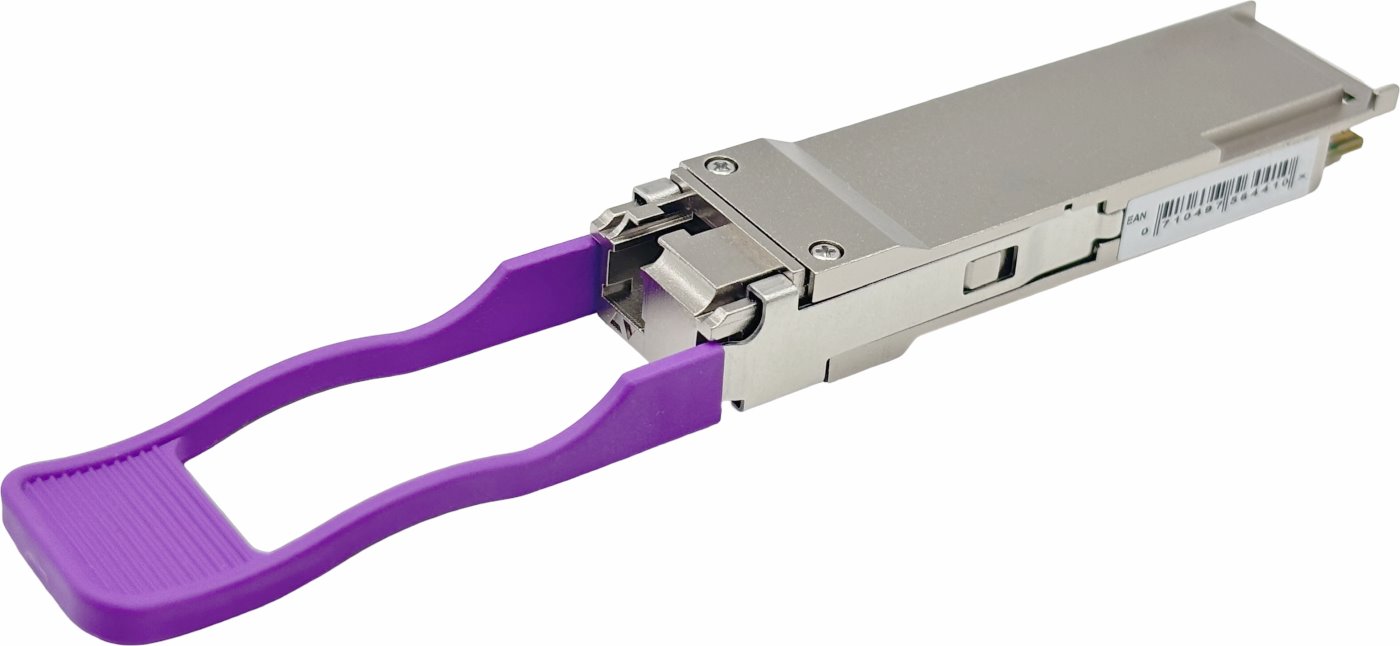

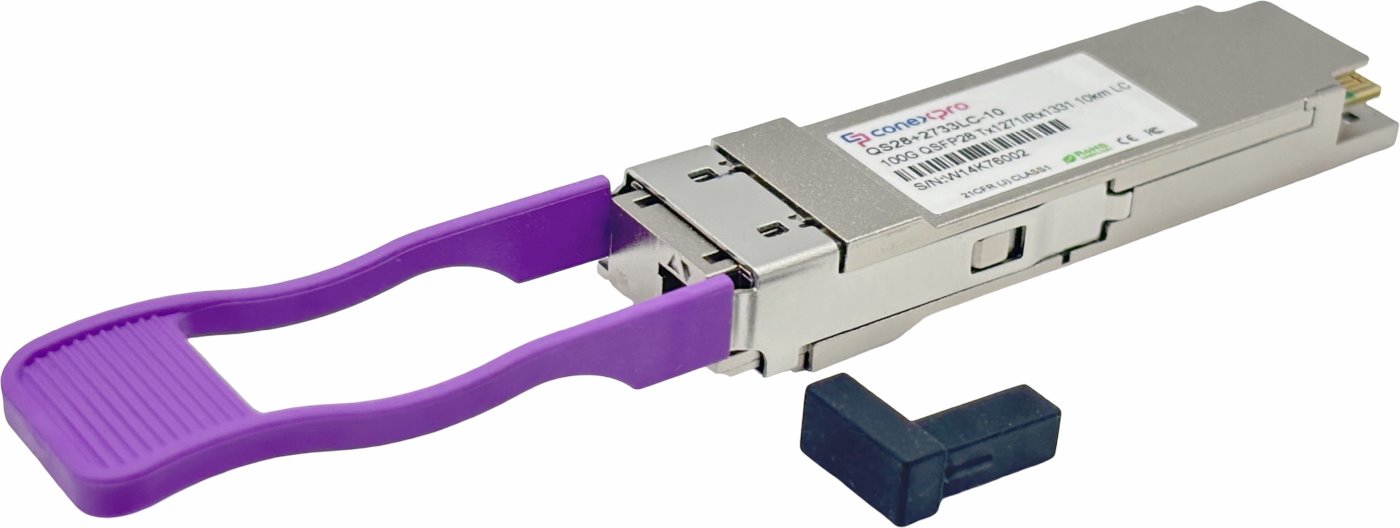

Conexpro 100G QSFP28 optical module, WDM/BiDi, SM, Tx1271/Rx1331nm, 10km, 1x LC, DDM

Conexpro 100G QSFP28 optical module, WDM/BiDi, SM, Tx1271/Rx1331nm, 10km, 1x LC, DDM
Conexpro 100G QSFP28 optical module, WDM/BiDi, SM, Tx1271/Rx1331nm, 10km, 1x LC, DDMConexpro 100G QSFP28 optical module, WDM/BiDi, SM, Tx1271/Rx1331nm, 10km, 1x LC, DDMConexpro 100G QSFP28 optical module, WDM/BiDi, SM, Tx1271/Rx1331nm, 10km, 1x LC, DDM
100-Gigabit WDM/Bidi Singlemode QSFP28 module from manufacturer Conexpro with wavelengths (Tx/Rx) 1271/1331 nm, speed of 100 Gbps, equipped with one LC connector with UPC polish and designed for connection over a distance of 10 km. This module provides universal compatibility, meaning it can work with almost all available active elements. Of cours ... More information
ManufacturerConexpro
PNQS28+2733LC-10
EAN0710497564410
Where to buyAsk a question

Product description

100-Gigabit WDM/Bidi Singlemode QSFP28 module from manufacturer Conexpro with wavelengths (Tx/Rx) 1271/1331 nm, speed of 100 Gbps, equipped with one LC connector with UPC polish and designed for connection over a distance of 10 km. This module provides universal compatibility, meaning it can work with almost all available active elements. Of course, it supports optical link diagnostics using the DDM (Digital Diagnostic Monitoring) feature.

For proper functionality of the optical link, it is necessary to have a QSFP28 module with opposite wavelengths (Tx = 1331 nm, Rx = 1271 nm) on the opposite side of the optical path.

Key Features

  • Format: QSFP28
  • Transfer speed: 100 Gbps
  • For fiber type: Single Mode
  • Connectors: 1x LC
  • Range: up to 10 km
  • Wavelength: 1271 nm (Tx) / 1331 nm (Rx)
Do you have a question or comment about this product?
Ask a question

Technical parameters

Optics

FormatQSFP28
For cable typeSingle Mode
Transmission speed100 Gbps
Wavelength - Tx/Rx [nm]1271 / 1331
Distance [km]10
Transfer typeWDM
Polishing typeUPC

Connectors and interfaces

Optical Connectors(1) LC

Physical characteristics

Operating temperature [°C]0 up to 70

General

SFP CompatibilityUniversal

Software

DDMI - diagnosticsYes
