Conexpro GNT-53003, Gigabit PoE injector, 18W

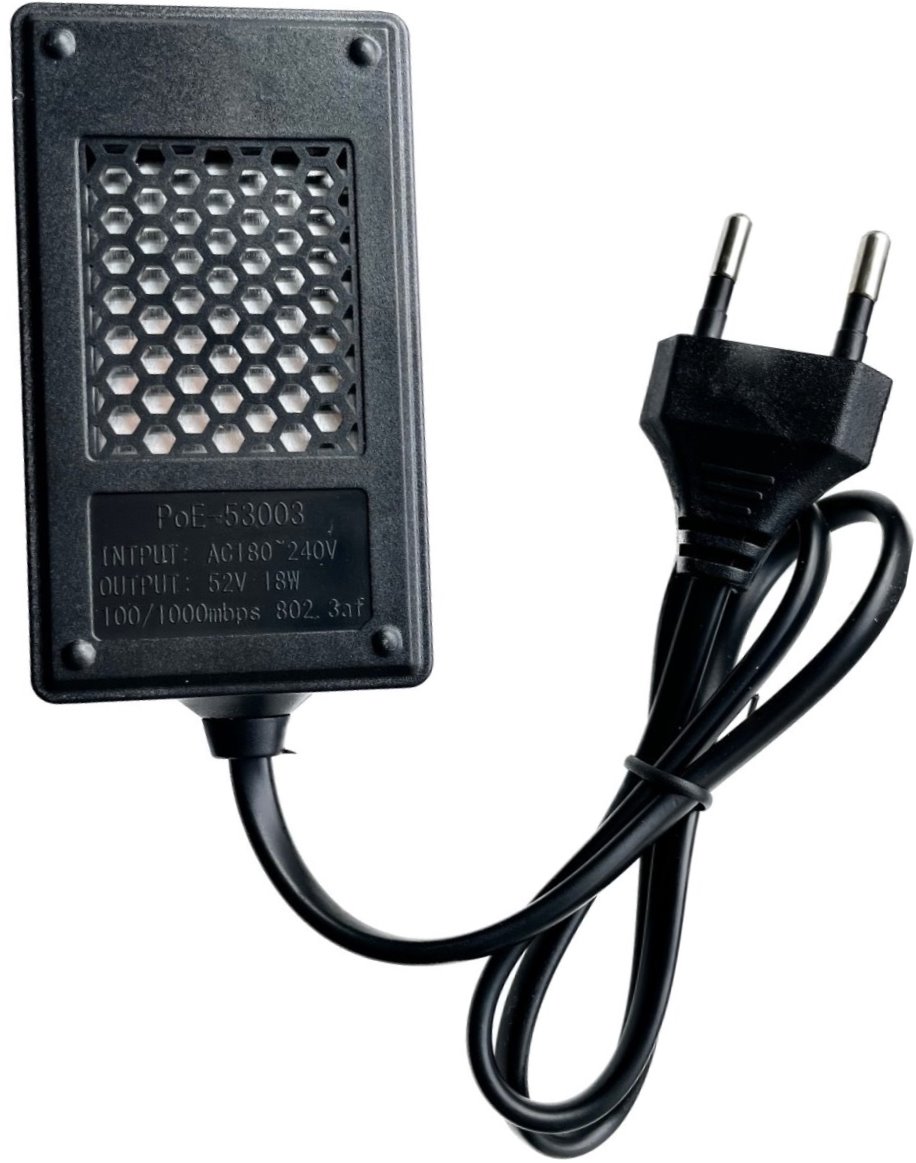

Gigabit PoE injector with the ability to power network elements such as cameras, Wi-Fi AP, VoIP and other standards supporting 802.af/at with maximum power 18W. The black plastic chassis injector has one input and one output port with up to 1Gbps speed. The source already has an integrated 230V AC power 2-pin cable from the factory. ... More information

ManufacturerConexpro

PNGNT-53003

EAN0710497560368

Where to buy Ask a question

Product description Download1 Technical parameters

Product description

Gigabit PoE injector with the ability to power network elements such as cameras, Wi-Fi AP, VoIP and other standards supporting 802.af/at with maximum power 18W. The black plastic chassis injector has one input and one output port with up to 1Gbps speed. The source already has an integrated 230V AC power 2-pin cable from the factory.

Do you have a question or comment about this product?

Ask a question

Download

Datasheet

Technical parameters

Connectors and interfaces

Ethernet speed [Mb/s]10/100/1000

Power

Pin powering1,2 (-), 3,6 (+)

The input voltage [V]230V AC

Output Power [W]18

PoE-Out standards802.3af, 802.3at

PoE Out ports1

Output Voltage [V]52

Output Current [A]0,34

Physical characteristics

Operating temperature [°C]-30 up to 55

Height [mm]28

Width [mm]43

Depth [mm]77
