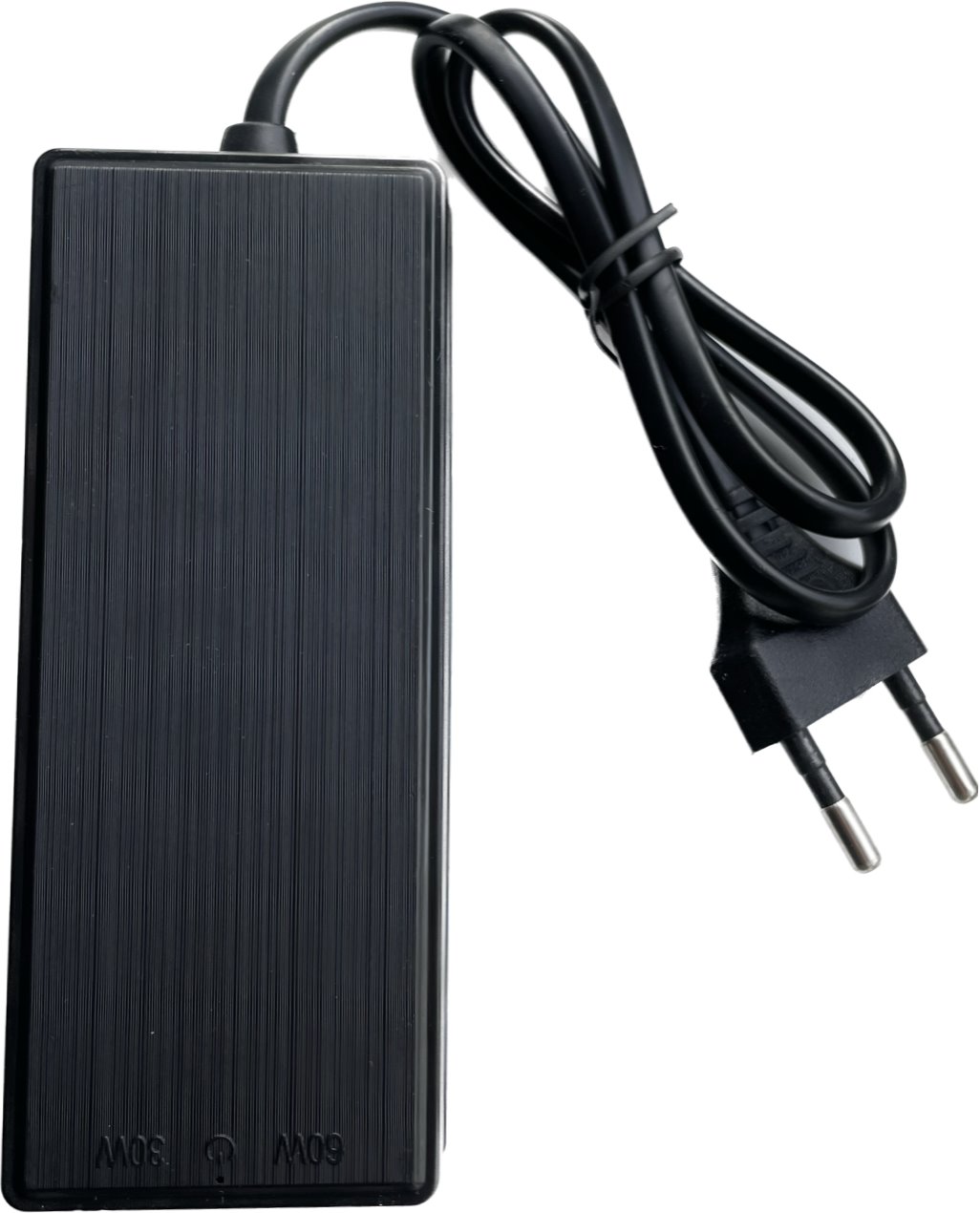

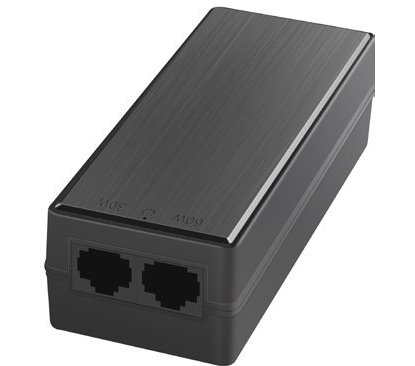

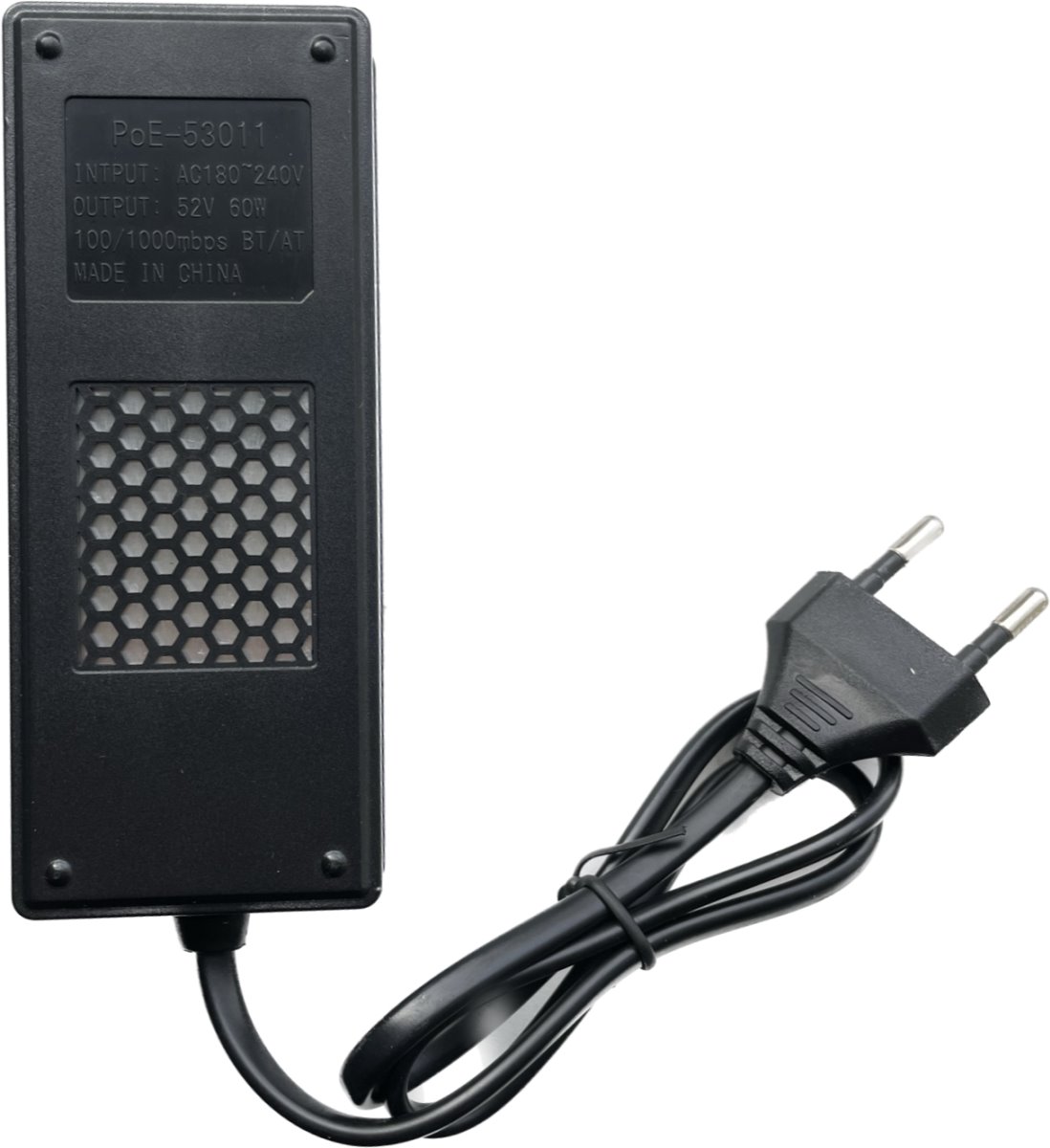

Conexpro GNT-53011, Gigabit PoE injector, 60W

Conexpro GNT-53011, Gigabit PoE injector, 60W
Gigabit PoE injector with the ability to power up to 2 network elements at the same time such as cameras, Wi-Fi AP, VoIP and other standards supporting 802.3af/at/bt with maximum power of 60W in the first port, 30W and support of 802.3af/at standards in the second port or both at the same time with a limitation of the total consumption of 60W. Bot ... More information
ManufacturerConexpro
PNGNT-53011
EAN0710497560122

Product description

Gigabit PoE injector with the ability to power up to 2 network elements at the same time such as cameras, Wi-Fi AP, VoIP and other standards supporting 802.3af/at/bt with maximum power of 60W in the first port, 30W and support of 802.3af/at standards in the second port or both at the same time with a limitation of the total consumption of 60W. Both Ethernet ports have line speed up to 1Gbps. The source already has an integrated 230V AC power 2-pin cable from the factory.

Do you have a question or comment about this product?

Download

Technical parameters

Connectors and interfaces

Ethernet speed [Mb/s]10/100/1000

Power

Pin powering1,2 (+), 3,6 (-)
The input voltage [V]230V AC
Output Power [W]60
PoE-Out standards802.3af, 802.3at, 802.3bt
PoE Out ports2
Output Voltage [V]52
Output Current [A]1,14

Physical characteristics

Operating temperature [°C]-30 up to 55
Height [mm]32
Width [mm]45
Depth [mm]112
