Conexpro GNT-6FP51G6, Outdoor PoE switch, 5x LAN, 4x PoE

Conexpro GNT-6FP51G6, Outdoor PoE switch, 5x LAN, 4x PoE

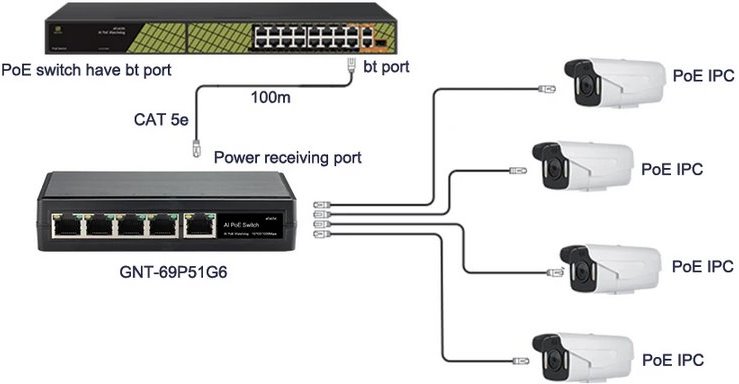

Gigabit PoE switch with outdoor box, powered only via PoE, without management and with 5x Gigabit ports, the device is intended for places without power supply and is suitable for power up to 4 devices (camera/Wi-Fi AP). The Switch offers silent fanless operation, 5x 10/100/1000 Mbps of which 4 LAN ports support PoE function (802.3af/at, 30W/port, ... More information
ManufacturerConexpro
PNGNT-6FP51G6
EAN0710497560276

Product description

Gigabit PoE switch with outdoor box, powered only via PoE, without management and with 5x Gigabit ports, the device is intended for places without power supply and is suitable for power up to 4 devices (camera/Wi-Fi AP). The Switch offers silent fanless operation, 5x 10/100/1000 Mbps of which 4 LAN ports support PoE function (802.3af/at, 30W/port, port No. 4 supports even 802.3af/at/bt - 60W/port) with a total PoE budget of 60W (depends on input power), low internal consumption and power only via PoE (802.3at/bt).

Conexpro GNT-6FP51G6

Key Features

  • (5) 10/100/1000 Mbps LAN
  • Input power only via 802.3at/bt PoE

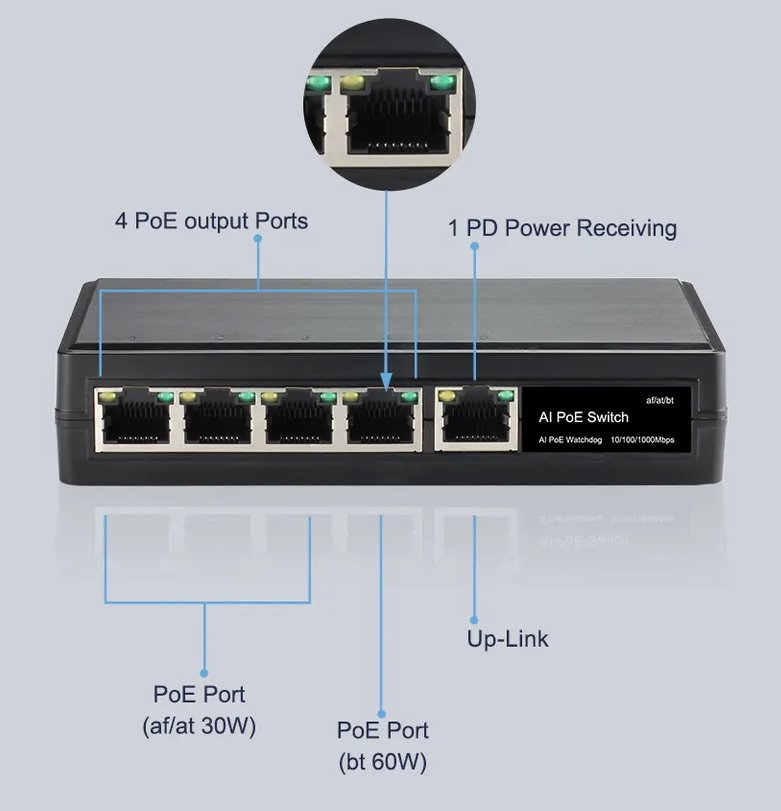

  • (3) 802.3af/at PoE (30W/port) + (1) 802.3af/at/bt PoE (60W/port)
  • PoE budget 60W
  • Decent plastic chassis
  • Silent operation without fans
  • PoE watchdog
  • Dimensions of the outdoor box 228 x 168 x 68mm

Package contents

  • Device

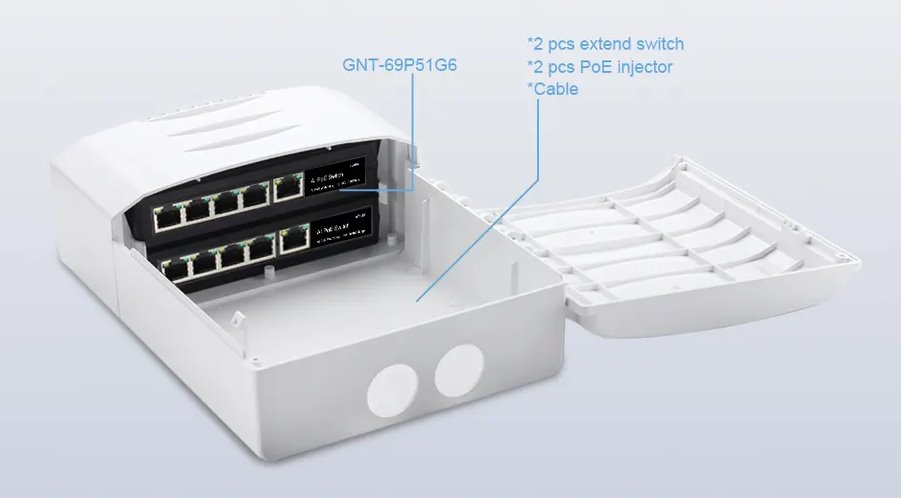

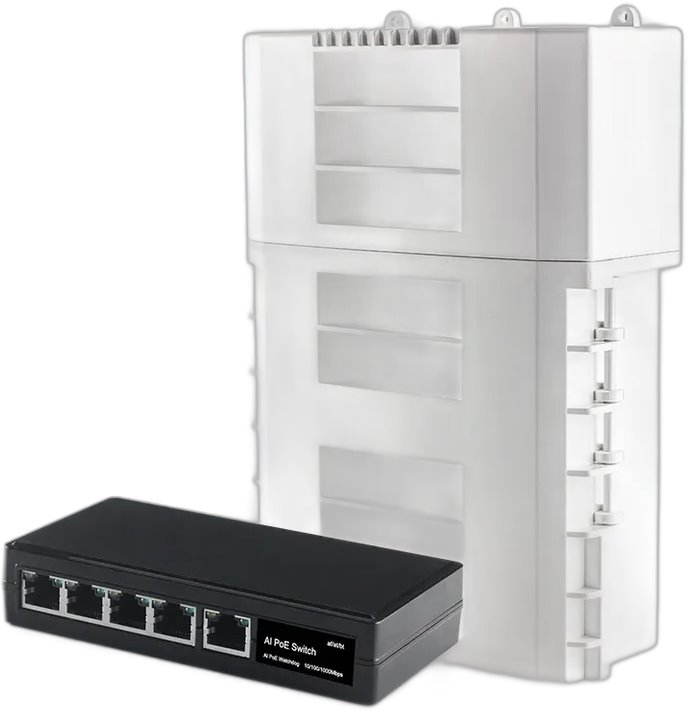

  • Outdoor box
Do you have a question or comment about this product?

Download

Technical parameters

Connectors and interfaces

LAN speed(5) 10/100/1000Mbps

Power

Power typePoE
PoE typePoE-Out + PoE-In
PoE-Out standards802.3af, 802.3at, 802.3bt
PoE Out ports4
PoE budget [W]60
Max. power consumption [W]60
Power over Ethernet802.3at, 802.3bt

Physical characteristics

DesignOn the wall
PurposeOutdoor
FansWithout fan
Chassis designPlastic
Operating temperature [°C]-30 up to 60
Depth [mm]68
Width [mm]168
Height [mm]228

General

Switchning capacity [Gbps]10
MAC address table8000
