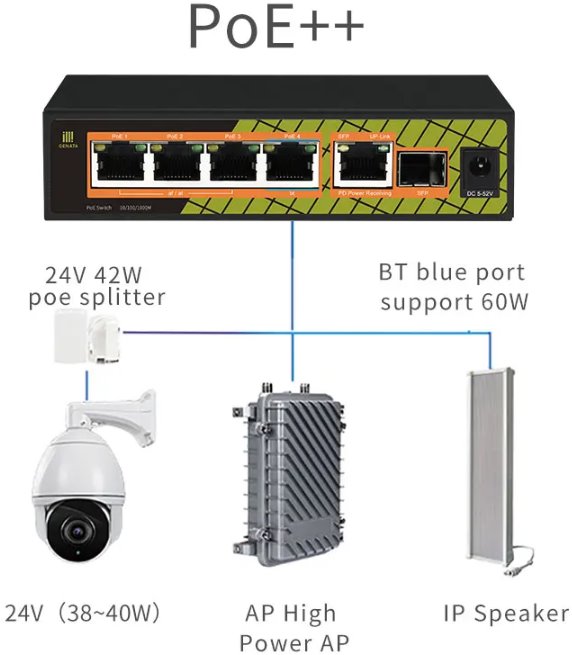

Gigabit PoE switch in a metal chassis, without management with 5x Gigabit ports is an ideal PoE switch for less exposed locations, for example in households or companies at the edge of the network for power 4 devices (camera/Wi-Fi AP). The Switch offers silent fanless operation, 5x 10/100/1000 Mbps + 1x Gigabit SFP uplink, of which 4 LAN ports support the PoE function (802.3af/at, 30W/port, port No. 4 even supports 802.3af/at/bt - 60W/port) with a total PoE budget of 60W. The advantage of this switch is the possibility of power supply via PoE-IN on LAN1 or DC connector using a source that not included. In the case of a power supply lower than 48V DC, only the switch itself will be powered. For the functionality of the PoE-out ports, a source with a voltage of 48 to 52V DC is needed.
Key Features

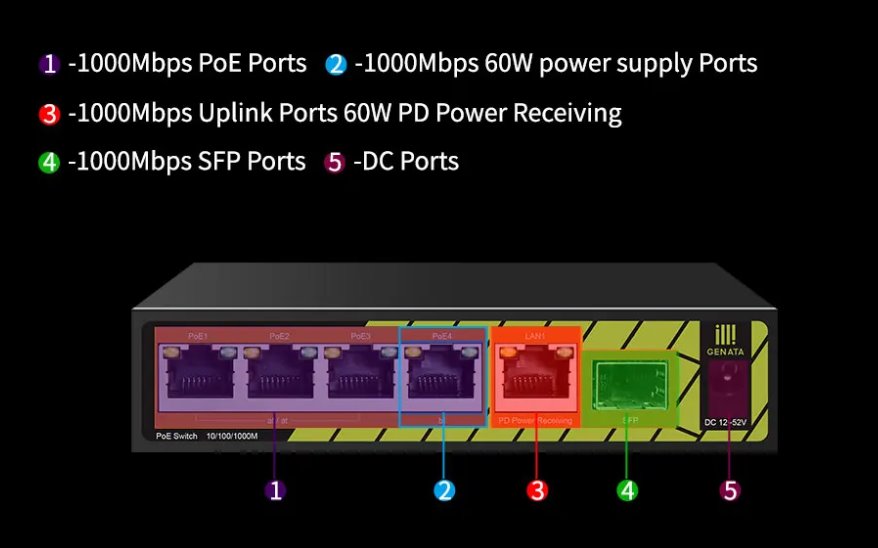

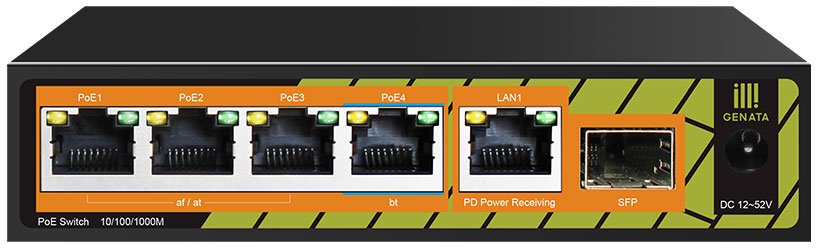

- (5) 10/100/1000 Mbps LAN + (1) Gigabit SFP

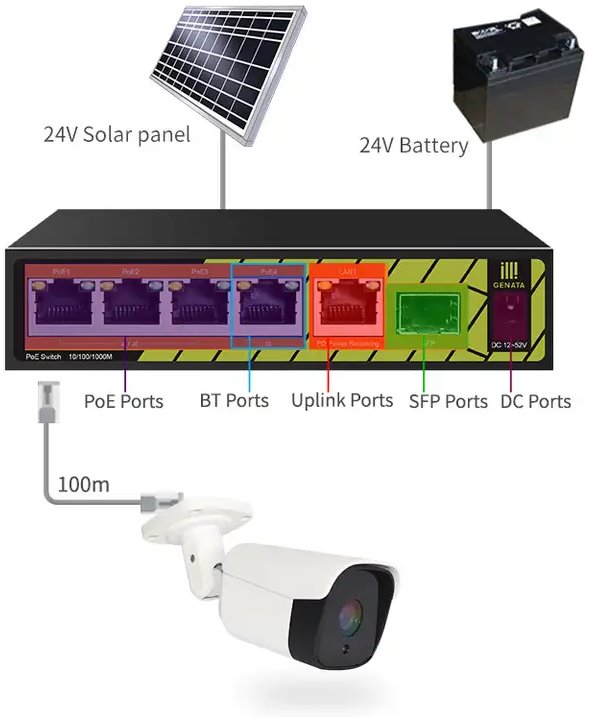

- Power supply via PoE (802.3af/at/bt) or external adapter 12V ~ 52V DC (functional PoE-out with 48 to 52V DC source)
- (3) 802.3af/at PoE (30W/port) + (1) 802.3af/at/bt PoE (60W/port)
- PoE budget 60W
- Robust metal chassis
- Silent operation without fans
- PoE watchdog
- Dimensions 130 x 65 x 31mm
Package contents
