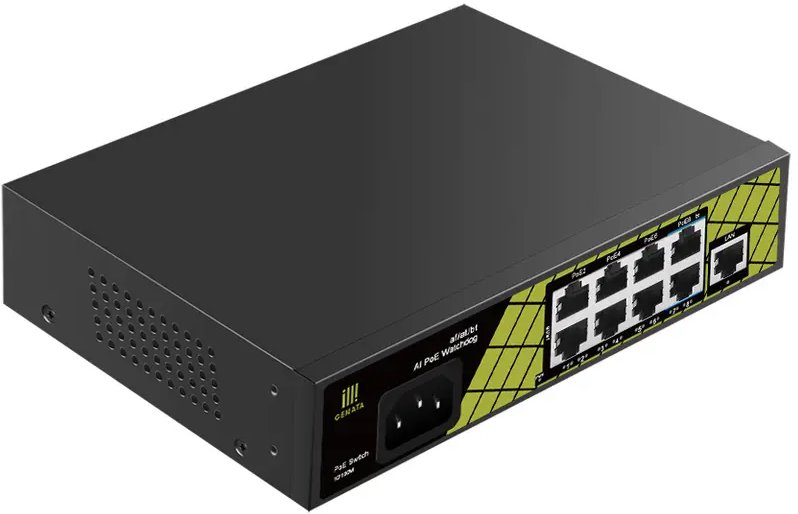

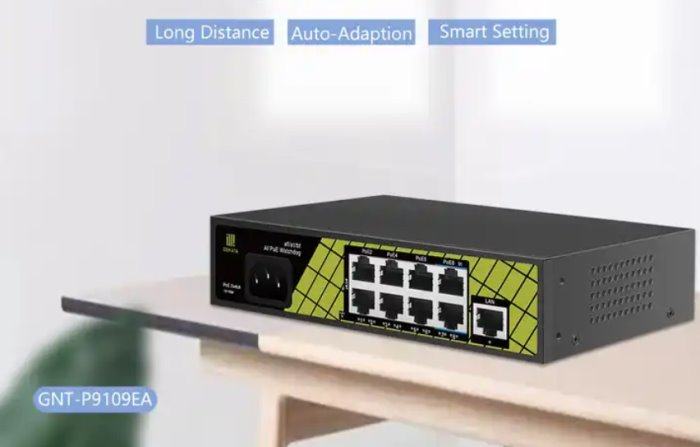

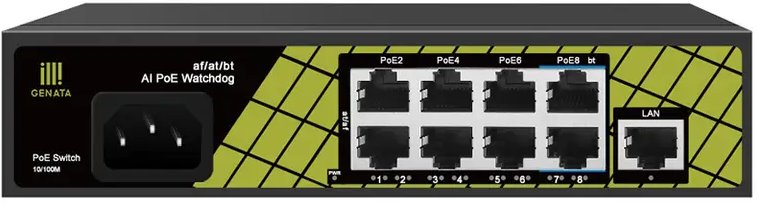

Conexpro GNT-P9109EA, PoE switch, 9x LAN, 8x PoE

Fast ethernet metal PoE switch without management with one uplink port is the ideal PoE switch for households and family houses to power up to 8 devices (camera/Wi-Fi AP) with low consumption. The Switch offers silent fanless operation, 9x 10/100 Mbps LAN of which 8 Ethernet ports support PoE function (802.3af/at, 30W/port, ports 7 and 8 also supp ... More information

ManufacturerConexpro

PNGNT-P9109EA

EAN0710497560177

Where to buy Ask a question

Product description Download2 Technical parameters

Product description

Fast ethernet metal PoE switch without management with one uplink port is the ideal PoE switch for households and family houses to power up to 8 devices (camera/Wi-Fi AP) with low consumption. The Switch offers silent fanless operation, 9x 10/100 Mbps LAN of which 8 Ethernet ports support PoE function (802.3af/at, 30W/port, ports 7 and 8 also support 802.3af/at/bt - 60W/port) with a total PoE budget of 120W, low internal consumption and power supply via a 230V AC connector thanks to the built-in power supply. The Switch can power devices up to a distance of 250m while reducing the line speed to 10 Mbps.

Key Features

(9) 10/100 Mbps LAN
230V AC power supply
(6) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
PoE budget 120W

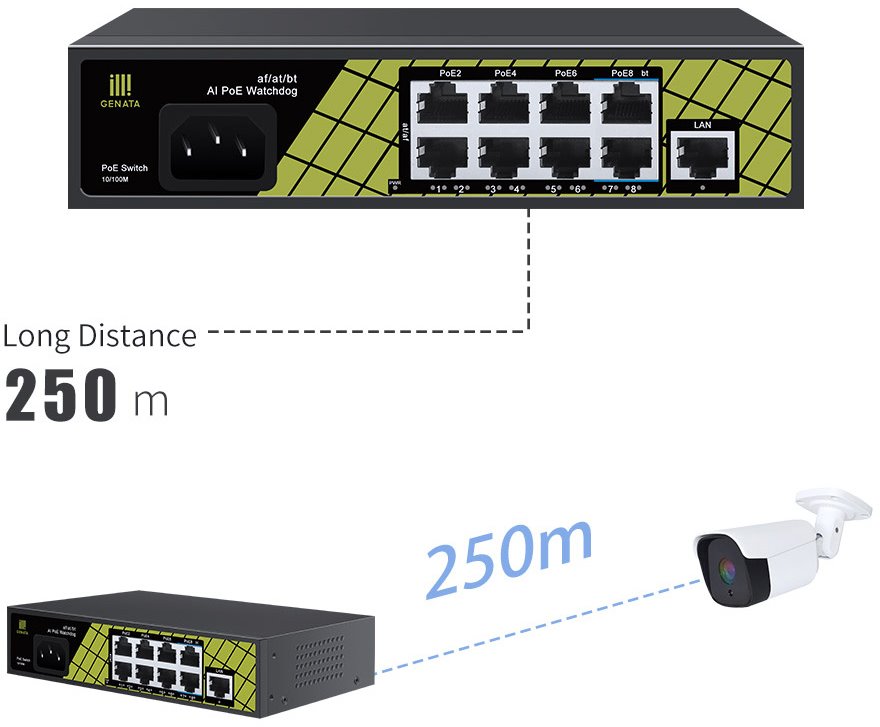

Long range support - reach up to 250m
Robust metal chassis
Silent operation without fans
PoE watchdog
Dimensions 187 x 139 x 43mm

Package contents

Device
Power cord

Do you have a question or comment about this product?

Ask a question

Download

Datasheet QSG

Technical parameters

Connectors and interfaces

LAN speed(9) 10/100Mbps

Power

Power typeMains power (230V)

PoE typePoE-Out (only)

PoE-Out standards802.3af, 802.3at, 802.3bt

PoE Out ports8

PoE budget [W]120

Long range PoE - up to 250mYes

Max. power consumption [W]120

Power via connector/terminal230V AC

Physical characteristics

DesignOn the wall, Desktop

PurposeIndoor

FansWithout fan

Chassis designMetal

Operating temperature [°C]-30 up to 60

Height [mm]43

Depth [mm]139

Width [mm]187

General

Switchning capacity [Gbps]1,8

MAC address table2000
