Conexpro GNT-69P51G6, PoE switch, 5x LAN, 4x PoE

Conexpro GNT-69P51G6, PoE switch, 5x LAN, 4x PoE
Conexpro GNT-69P51G6, PoE switch, 5x LAN, 4x PoEConexpro GNT-69P51G6, PoE switch, 5x LAN, 4x PoEConexpro GNT-69P51G6, PoE switch, 5x LAN, 4x PoEConexpro GNT-69P51G6, PoE switch, 5x LAN, 4x PoE
Gigabit PoE switch in a plastic chassis powered only via PoE, without management with 5x Gigabit ports the device is intended for places without power supply and is suitable for power up to 4 devices (camera/Wi-Fi AP). The Switch offers silent fanless operation, 5x 10/100/1000 Mbps of which 4 LAN ports support PoE function (802.3af/at, 30W/port, p ... More information
ManufacturerConexpro
PNGNT-69P51G6
EAN0710497560269
Where to buyAsk a question

Product description

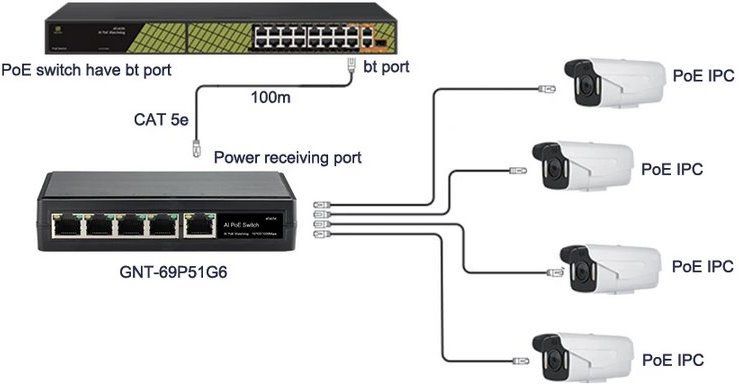

Gigabit PoE switch in a plastic chassis powered only via PoE, without management with 5x Gigabit ports the device is intended for places without power supply and is suitable for power up to 4 devices (camera/Wi-Fi AP). The Switch offers silent fanless operation, 5x 10/100/1000 Mbps of which 4 LAN ports support PoE function (802.3af/at, 30W/port, port No. 4 supports even 802.3af/at/bt - 60W/port) with a total PoE budget of 60W (depends on input power), low internal consumption and power only via PoE (802.3at/bt).

Key Features

  • (5) 10/100/1000 Mbps LAN
  • Input power only via 802.3at/bt PoE

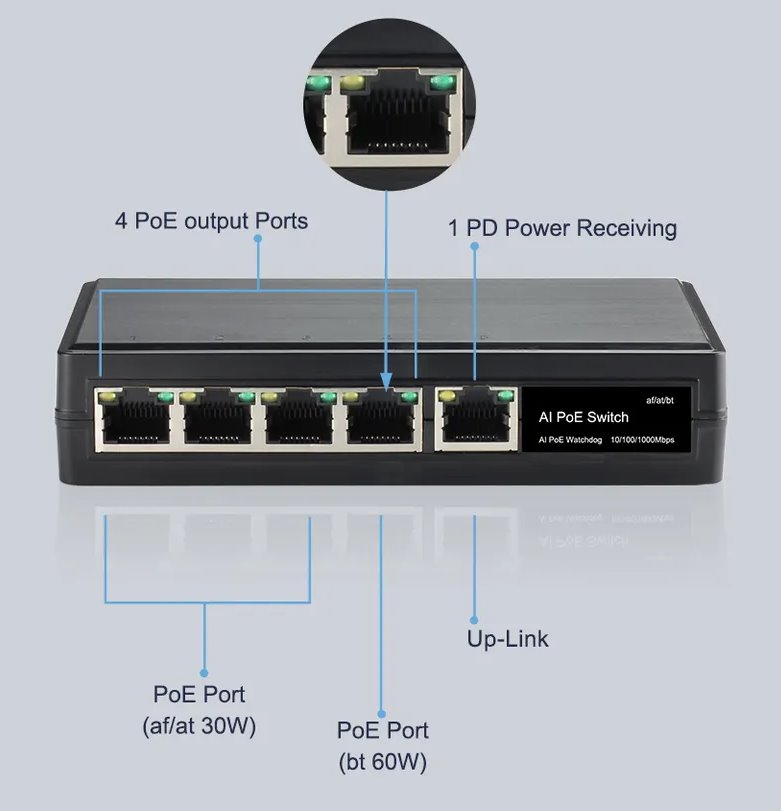

  • (3) 802.3af/at PoE (30W/port) + (1) 802.3af/at/bt PoE (60W/port)
  • PoE budget 60W
  • Decent plastic chassis
  • Silent operation without fans
  • PoE watchdog

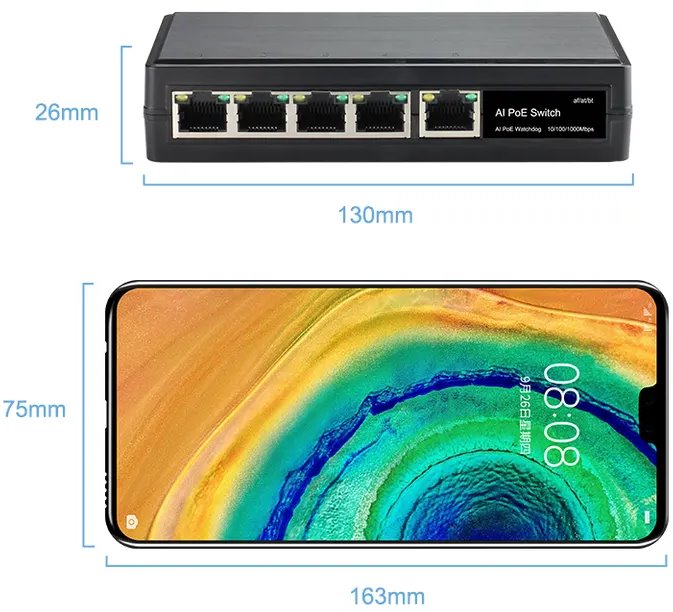

  • Dimensions 130 x 67 x 26mm

Package contents

  • Device
Do you have a question or comment about this product?
Ask a question

Download

Technical parameters

Connectors and interfaces

LAN speed(5) 10/100/1000Mbps

Power

Power typePoE
PoE typePoE-Out + PoE-In
PoE-Out standards802.3af, 802.3at, 802.3bt
PoE Out ports4
PoE budget [W]60
Max. power consumption [W]60
Power over Ethernet802.3at, 802.3bt

Physical characteristics

DesignDesktop
PurposeIndoor
FansWithout fan
Chassis designPlastic
Operating temperature [°C]-10 up to 55
Height [mm]26
Depth [mm]67
Width [mm]130

General

Switchning capacity [Gbps]10
MAC address table8000
