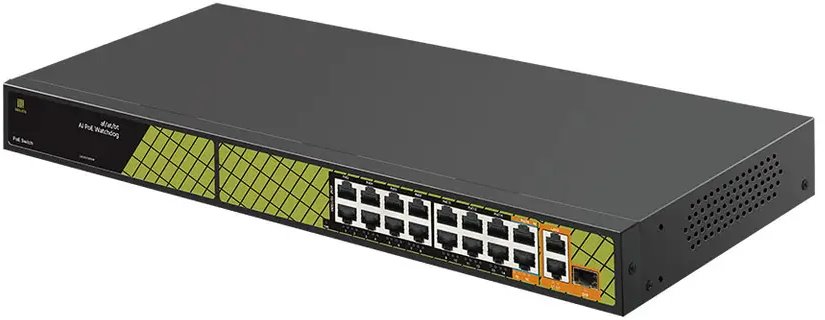

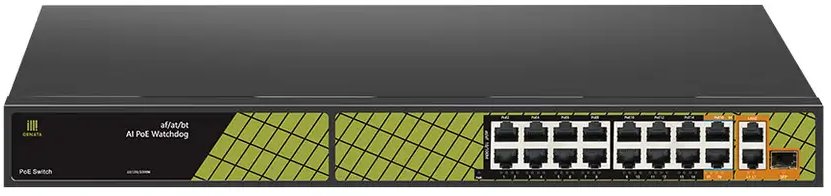

Conexpro GNT-P4813V6, PoE switch, 18x LAN, 16x PoE, 1x SFP

Fast Ethernet rackmount PoE switch without management with Gigabit uplink ports and one combo SFP is the ideal PoE switch to small businesses and larger family homes and is designed to power up to 16 devices (cameras/Wi-Fi AP) with low consumption. The switch offers reliable operation thanks to integrated cooling, 14x 10/100 Mbps + 4x Gigabit upli ... More information

ManufacturerConexpro

PNGNT-P4813V6

EAN0710497560191

Where to buy Ask a question

Product description Download2 Technical parameters

Product description

Fast Ethernet rackmount PoE switch without management with Gigabit uplink ports and one combo SFP is the ideal PoE switch to small businesses and larger family homes and is designed to power up to 16 devices (cameras/Wi-Fi AP) with low consumption. The switch offers reliable operation thanks to integrated cooling, 14x 10/100 Mbps + 4x Gigabit uplink LAN + 1x Gigabit SFP combo, of which 16 Ethernet ports support the PoE function (802.3af/at , 30W/port, ports 15 and 16 even support 802.3af/at/bt - 60W/port) with a total PoE budget of 300W, low internal consumption and power supply via 230V AC connector thanks to the built-in source.

Key Features

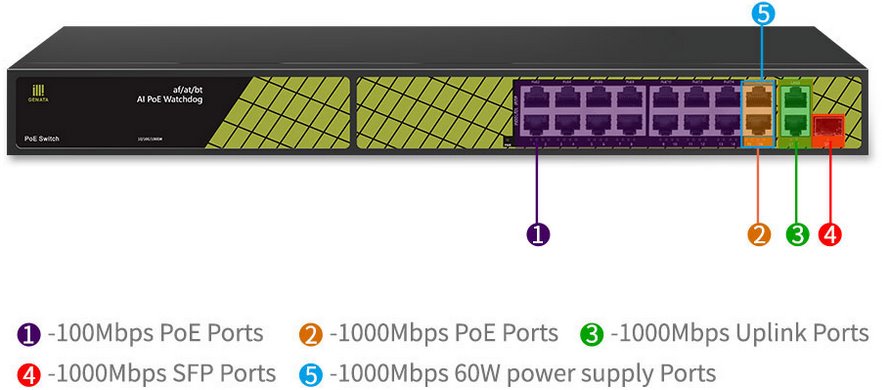

(14) 10/100 Mbps + (4) 10/100/1000 Mbps LAN + (1) combo SFP
230V AC power supply
(14) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
PoE budget 300W
Rack mounting, 1U height

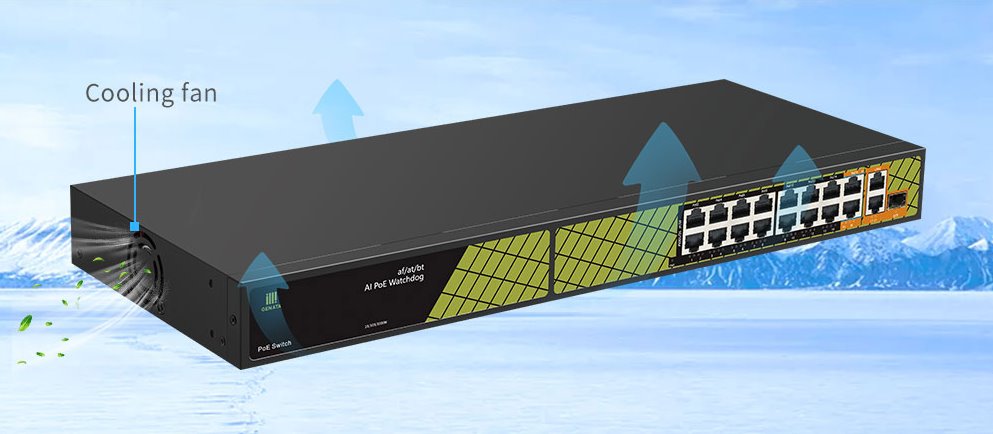

Active cooling - fan from the side of the chassis
PoE watchdog
Dimensions 430 x 180 x 45mm

Package contents

Device
Rack mounts
Power cord

Do you have a question or comment about this product?

Ask a question

Download

Datasheet QSG

Technical parameters

Connectors and interfaces

LAN speed(14) 10/100Mbps + (4) 10/100/1000Mbps

Optical interfaces(1) 1000Mbps Combo

Power

Power typeMains power (230V)

PoE typePoE-Out (only)

PoE-Out standards802.3af, 802.3at, 802.3bt

PoE Out ports16

PoE budget [W]300

Max. power consumption [W]400

Power via connector/terminal230V AC

Physical characteristics

DesignRackmount

PurposeIndoor

Fans(1) 40 x 40 mm

Chassis designMetal

Operating temperature [°C]-10 up to 55

Height [mm]45

Depth [mm]180

Width [mm]430

General

Switchning capacity [Gbps]10,8

MAC address table8000
