Conexpro GNT-P9206EA, PoE switch, 6x LAN, 4x PoE

Conexpro GNT-P9206EA, PoE switch, 6x LAN, 4x PoE
Conexpro GNT-P9206EA, PoE switch, 6x LAN, 4x PoEConexpro GNT-P9206EA, PoE switch, 6x LAN, 4x PoEConexpro GNT-P9206EA, PoE switch, 6x LAN, 4x PoEConexpro GNT-P9206EA, PoE switch, 6x LAN, 4x PoEConexpro GNT-P9206EA, PoE switch, 6x LAN, 4x PoE

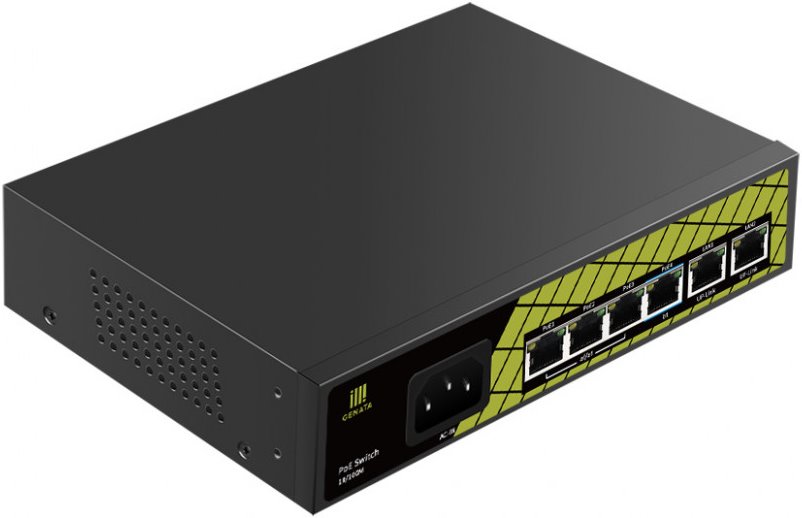

Fast ethernet metal PoE switch without management with two uplink ports is the ideal PoE switch for households and family houses to power up to 4 devices (camera/Wi-Fi AP) with low consumption. Switch offers quiet fanless operation, 6x 10/100 Mbps LAN of which 4 Ethernet ports support PoE function (802.3af/at, 30W/port, port no. 4 also supports 80 ... More information
ManufacturerConexpro
PNGNT-P9206EA
EAN0710497560108
Where to buyAsk a question

Product description

Fast ethernet metal PoE switch without management with two uplink ports is the ideal PoE switch for households and family houses to power up to 4 devices (camera/Wi-Fi AP) with low consumption. Switch offers quiet fanless operation, 6x 10/100 Mbps LAN of which 4 Ethernet ports support PoE function (802.3af/at, 30W/port, port no. 4 also supports 802.3af/at/bt - 60W/port) with a total PoE budget of 60W, low internal consumption and power supply via a 230V AC connector thanks to the built-in power supply. The Switch can power devices up to a distance of 250m while reducing the line speed to 10 Mbps.

Key Features

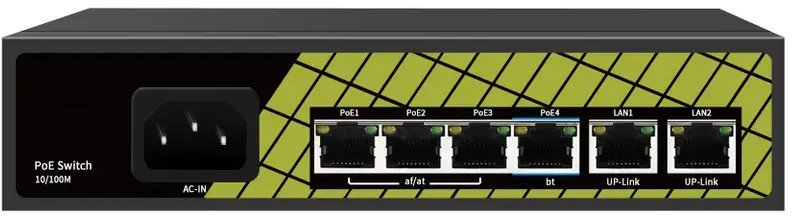

  • (6) 10/100 Mbps LAN
  • 230V AC power supply
  • (3) 802.3af/at PoE (30W/port) + (1) 802.3af/at/bt PoE (60W/port)
  • PoE budget 60W

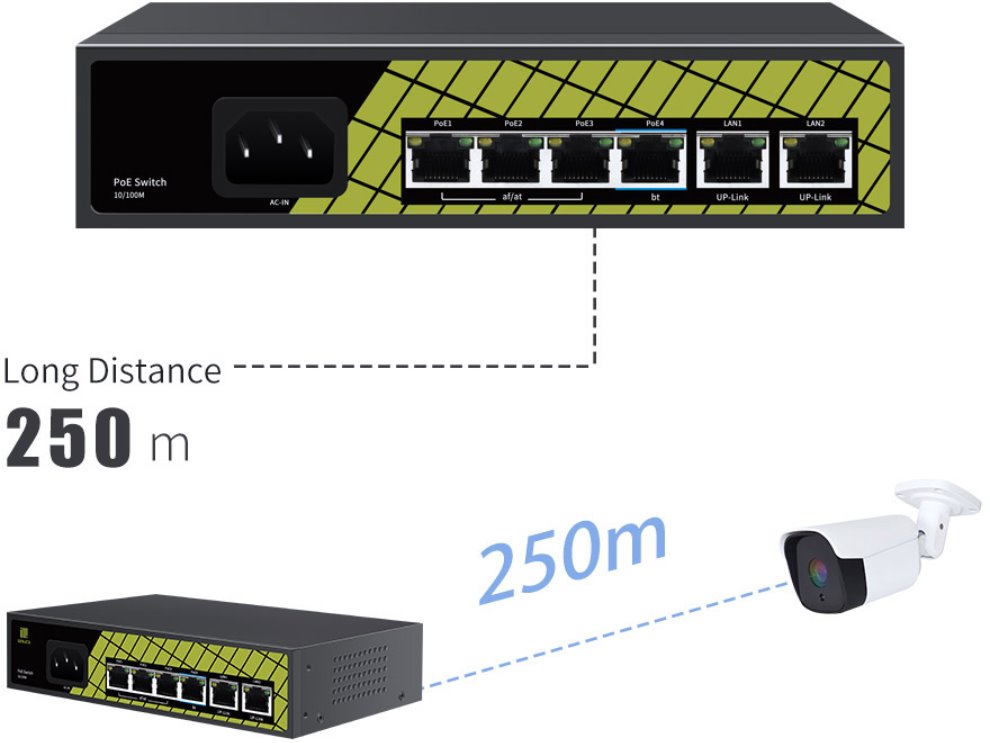

  • Long range support - reach up to 250m
  • Robust metal chassis
  • Silent operation without fans
  • PoE watchdog
  • Dimensions 187 x 139 x 43mm

Package contents

  • Device
  • Power cord
Do you have a question or comment about this product?
Ask a question

Download

Technical parameters

Connectors and interfaces

LAN speed(6) 10/100Mbps

Power

Power typeMains power (230V)
PoE typePoE-Out (only)
PoE-Out standards802.3af, 802.3at, 802.3bt
PoE Out ports4
PoE budget [W]60
Long range PoE - up to 250mYes
Max. power consumption [W]65
Power via connector/terminal230V AC

Physical characteristics

DesignOn the wall, Desktop
PurposeIndoor
FansWithout fan
Chassis designMetal
Operating temperature [°C]-30 up to 60
Height [mm]43
Depth [mm]139
Width [mm]187

General

Switchning capacity [Gbps]1,2
MAC address table2000
