Conexpro GNT-IG1008GP-DC, Industrial PoE switch for DIN rail, 8x LAN, 8x PoE

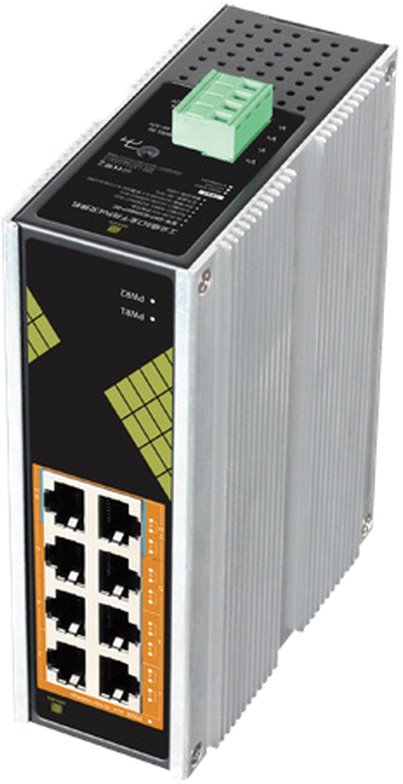

Gigabit PoE switch in metal industrial design with installation on a DIN rail, without management with 8x Gigabit LAN ports is a device for powering cameras, VoIP, Wi-Fi and is intended for the harshest conditions such as production halls, attics and outdoor switchboards. The Switch offers quiet fanless operation, 8x 10/100/1000 Mbps of which all ... More information

ManufacturerConexpro

PNGNT-IG1008GP-DC

EAN0710497560344

Where to buy Ask a question

Product description Download2 Technical parameters

Product description

Gigabit PoE switch in metal industrial design with installation on a DIN rail, without management with 8x Gigabit LAN ports is a device for powering cameras, VoIP, Wi-Fi and is intended for the harshest conditions such as production halls, attics and outdoor switchboards. The Switch offers quiet fanless operation, 8x 10/100/1000 Mbps of which all 8 ports support the PoE function (802.3af/at, 30W/port, port no. 7 and 8 even supports 802.3af/at/bt - 60W/port) with a total PoE budget of 130W and power supply via 2 independent DC inputs with redundancy with a voltage of 48 to 52V DC.

Key Features

(8) 10/100/1000 Mbps LAN
Power supply via 2 DC inputs 48 to 52V, redundancy

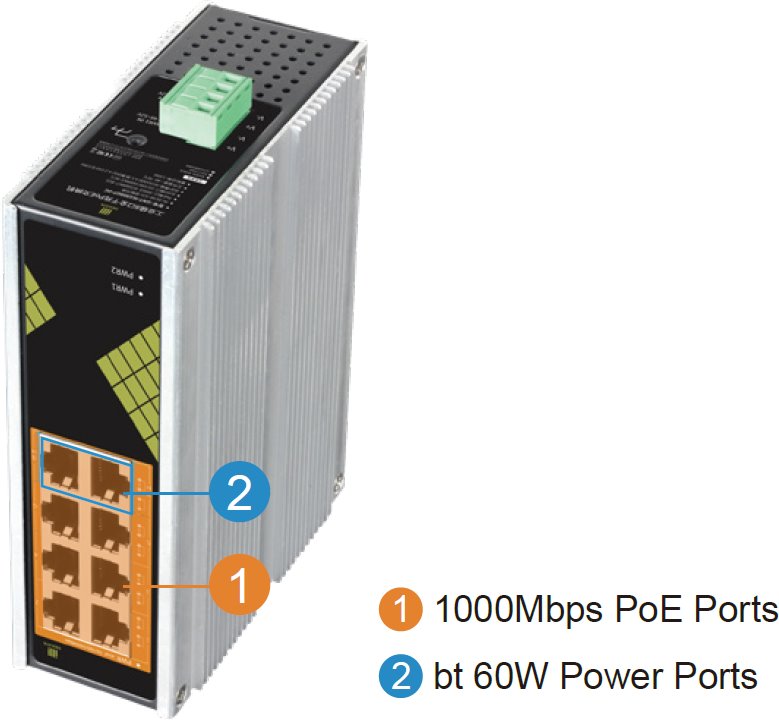

(6) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
PoE budget 130W
Robust industrial metal chassis

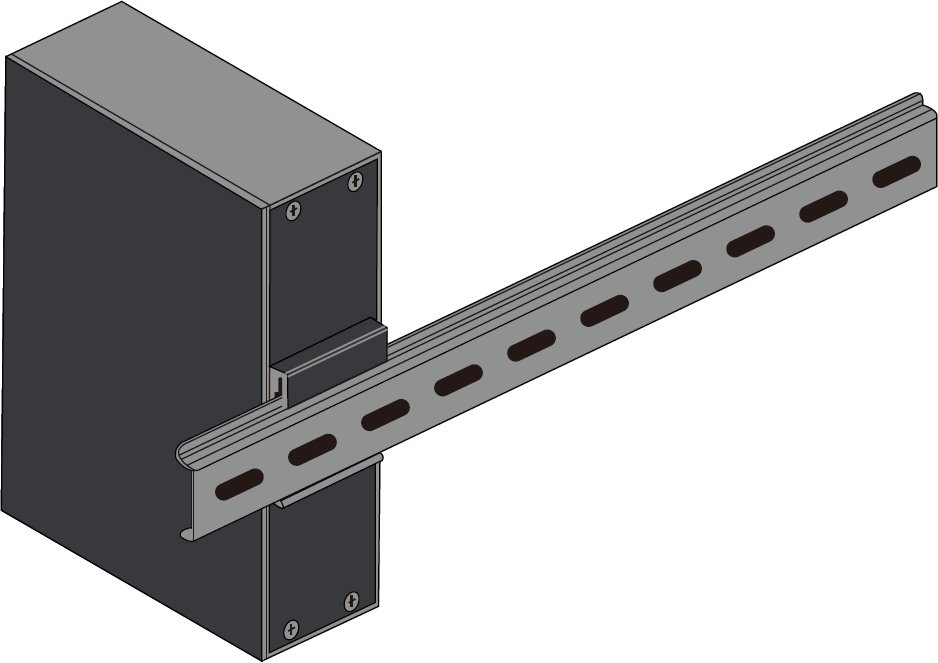

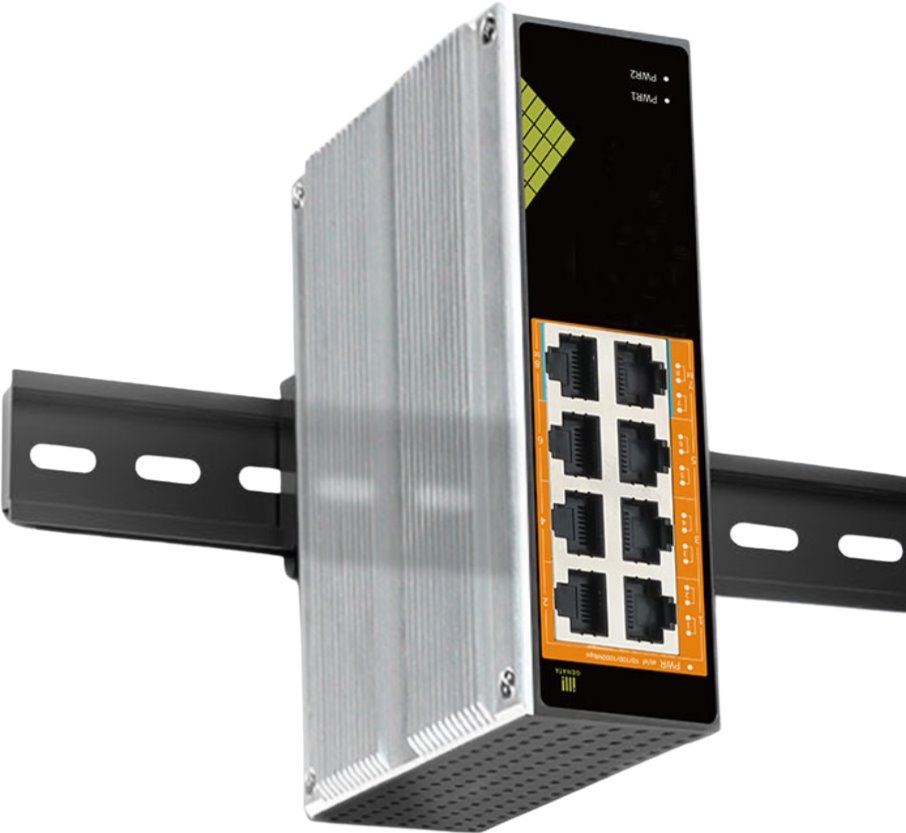

DIN rail mounting
Silent operation without fans
Operating temperature -40 to 70°C
Dimensions 51 x 145 x 110mm

Package contents

Device

Do you have a question or comment about this product?

Ask a question

Download

Datasheet QSG

Technical parameters

Connectors and interfaces

LAN speed(8) 10/100/1000Mbps

Power

Power typeDC terminal

PoE typePoE-Out (only)

PoE-Out standards802.3af, 802.3at, 802.3bt

Redundant power supplyYes

PoE Out ports8

PoE budget [W]130

Max. power consumption [W]130

Power via connector/terminal48 .. 52V DC

Physical characteristics

Protection classIP40

DesignDIN rail, Industry

PurposeIndoor

FansWithout fan

Chassis designMetal

Operating temperature [°C]-40 up to 70

Width [mm]51

Depth [mm]110

Height [mm]145

General

Packet forwarding rate [Mpps]11,9

Switchning capacity [Gbps]16

MAC address table8000
