Gigabit PoE switch in a metal chassis, without management with 8x Gigabit ports is the ideal PoE switch for households and family houses to power up to 8 devices (Camera/Wi-Fi AP). The Switch offers quiet fanless operation, 8x 10/100/1000 Mbps of which all 8 ports support the PoE function (802.3af/at, 30W/port, port no. 7 and 8 even supports 802.3 ... More information
ManufacturerConexpro
PNGNT-P1008G6
EAN0710497560214
Where to buyAsk a question

Product description

Gigabit PoE switch in a metal chassis, without management with 8x Gigabit ports is the ideal PoE switch for households and family houses to power up to 8 devices (Camera/Wi-Fi AP). The Switch offers quiet fanless operation, 8x 10/100/1000 Mbps of which all 8 ports support the PoE function (802.3af/at, 30W/port, port no. 7 and 8 even supports 802.3af/at/bt - 60W/port) with a total PoE budget of 120W, low internal consumption and power supply via a 230V AC connector thanks to the built-in power supply.

Key Features

  • (8) 10/100/1000 Mbps LAN
  • 230V AC power supply

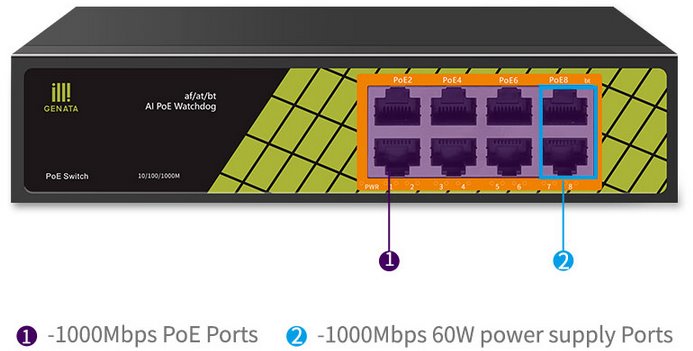

  • (6) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
  • PoE budget 120W
  • Robust metal chassis
  • Silent operation without fans
  • PoE watchdog
  • Dimensions 187 x 139 x 43mm

Package contents

  • Device
  • Power cord
Do you have a question or comment about this product?
Ask a question

Download

Technical parameters

Connectors and interfaces

LAN speed(8) 10/100/1000Mbps

Power

Power typeMains power (230V)
PoE typePoE-Out (only)
PoE-Out standards802.3af, 802.3at, 802.3bt
PoE Out ports8
PoE budget [W]120
Max. power consumption [W]120
Power via connector/terminal230V AC

Physical characteristics

DesignOn the wall, Desktop
PurposeIndoor
FansWithout fan
Chassis designMetal
Operating temperature [°C]-10 up to 55
Height [mm]43
Depth [mm]139
Width [mm]187

General

Switchning capacity [Gbps]16
MAC address table8000
