Conexpro GNT-IG1218F8-AC, Industrial PoE switch for DIN rail, 16x LAN, 8x PoE, 2x SFP

Conexpro GNT-IG1218F8-AC, Industrial PoE switch for DIN rail, 16x LAN, 8x PoE, 2x SFP
Conexpro GNT-IG1218F8-AC, Industrial PoE switch for DIN rail, 16x LAN, 8x PoE, 2x SFPConexpro GNT-IG1218F8-AC, Industrial PoE switch for DIN rail, 16x LAN, 8x PoE, 2x SFPConexpro GNT-IG1218F8-AC, Industrial PoE switch for DIN rail, 16x LAN, 8x PoE, 2x SFPConexpro GNT-IG1218F8-AC, Industrial PoE switch for DIN rail, 16x LAN, 8x PoE, 2x SFPConexpro GNT-IG1218F8-AC, Industrial PoE switch for DIN rail, 16x LAN, 8x PoE, 2x SFP
Gigabit PoE switch in metal industrial design with installation on a DIN rail, without management with 16x Gigabit LAN ports and two optical SFP ports, the device is intended for the harshest conditions such as production halls, attics, outdoor switchboards and is suitable for powering up to 8 devices (cameras/Wi-Fi AP). The Switch offers silent f ... More information
ManufacturerConexpro
PNGNT-IG1218F8-AC
EAN0710497560320
Where to buyAsk a question

Product description

Gigabit PoE switch in metal industrial design with installation on a DIN rail, without management with 16x Gigabit LAN ports and two optical SFP ports, the device is intended for the harshest conditions such as production halls, attics, outdoor switchboards and is suitable for powering up to 8 devices (cameras/Wi-Fi AP). The Switch offers silent fanless operation, 16x 10/100/1000 Mbps LAN + 2x Gigabit SFP uplink, of which 8 LAN ports support the PoE function (802.3af/at, 30W/port, ports no. 7 and 8 even support 802.3af/at/bt - 60W/port) with a total PoE budget of 130W and redundant power supply via 230V AC terminal block or DC terminal block (48 up to 52V DC).

Key Features

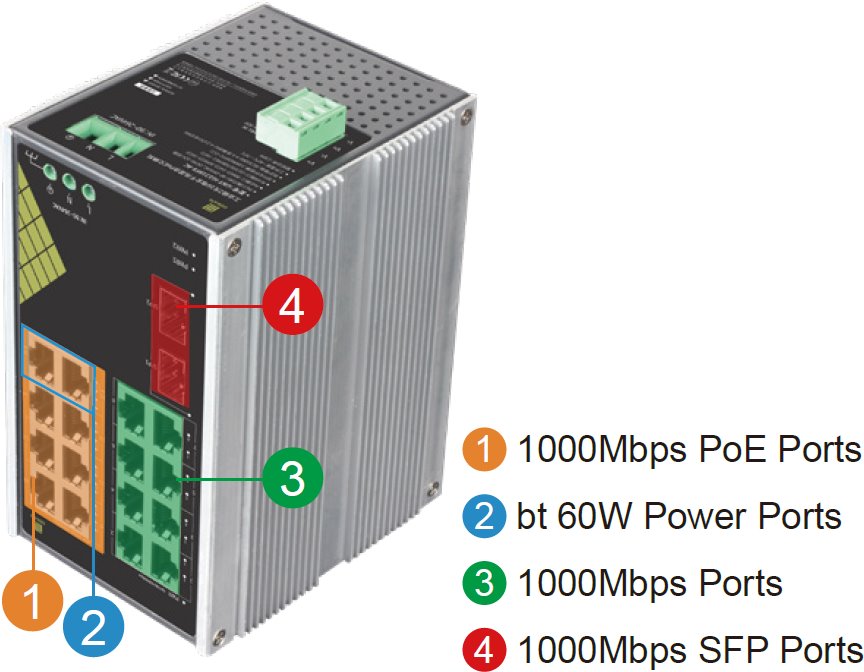

  • (16) 10/100/1000 Mbps LAN + (2) Gigabit SFP
  • 230V AC power supply or 48 to 52V DC
  • (6) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
  • PoE budget 130W
  • Robust industrial metal chassis

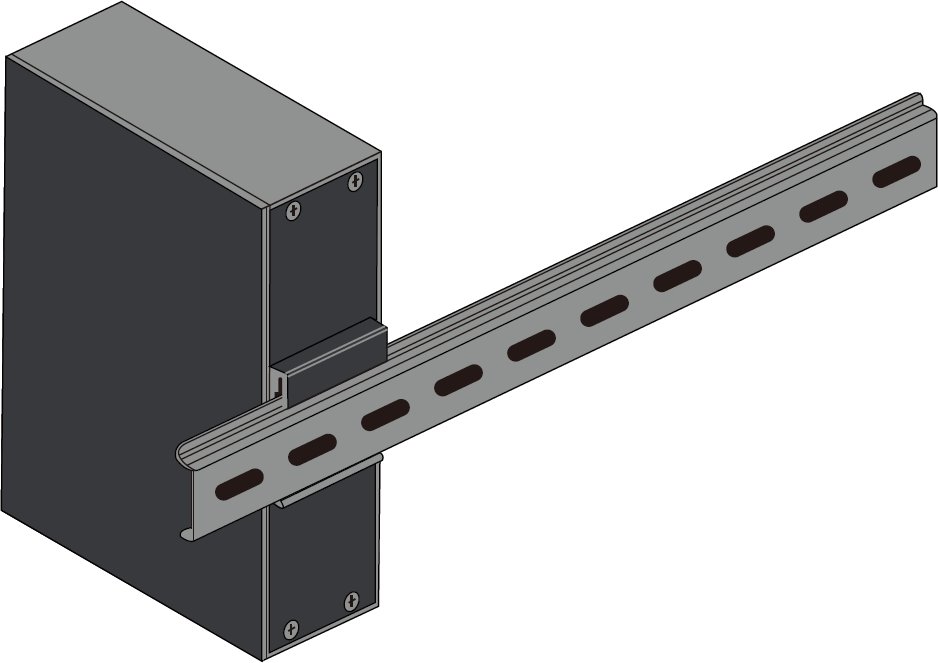

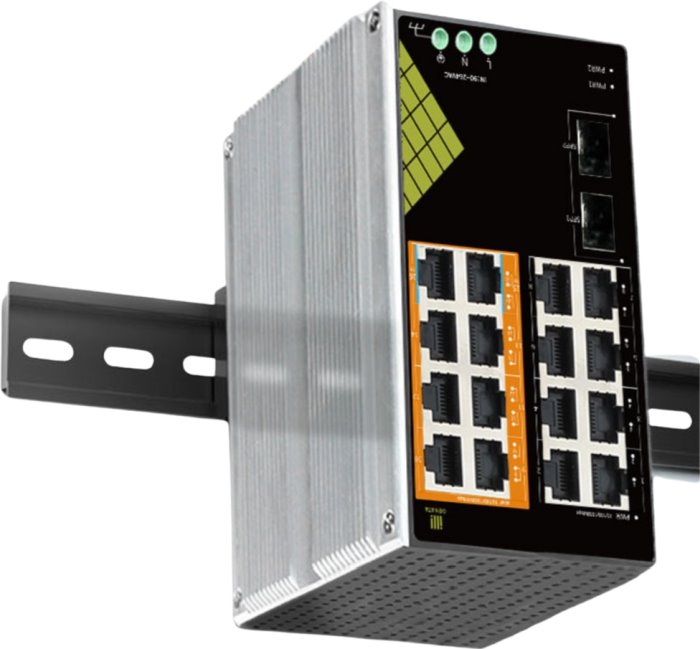

  • DIN rail mounting
  • Silent operation without fans
  • Operating temperature -40 to 70°C

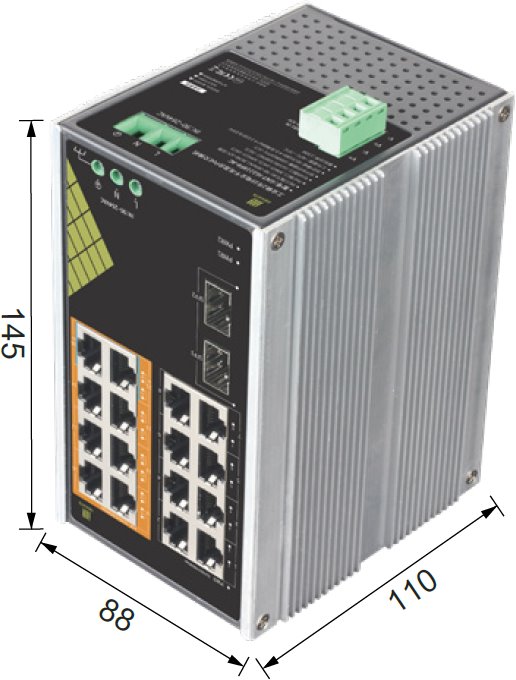

  • Dimensions 84 x 145 x 110mm

Package contents

  • Device
Do you have a question or comment about this product?
Ask a question

Download

Technical parameters

Connectors and interfaces

LAN speed(16) 10/100/1000Mbps
Optical interfaces(2) 1000Mbps

Power

Power typeAC terminal, DC terminal
PoE typePoE-Out (only)
PoE-Out standards802.3af, 802.3at, 802.3bt
Redundant power supplyYes
PoE Out ports8
PoE budget [W]130
Max. power consumption [W]130
Power via connector/terminal48 .. 52V DC, 230V AC

Physical characteristics

Protection classIP40
DesignDIN rail, Industry
PurposeIndoor
Fans(1) 40 x 40 mm
Chassis designMetal
Operating temperature [°C]-40 up to 70
Width [mm]84
Depth [mm]110
Height [mm]145

General

Packet forwarding rate [Mpps]26,78
Switchning capacity [Gbps]36
MAC address table8000
