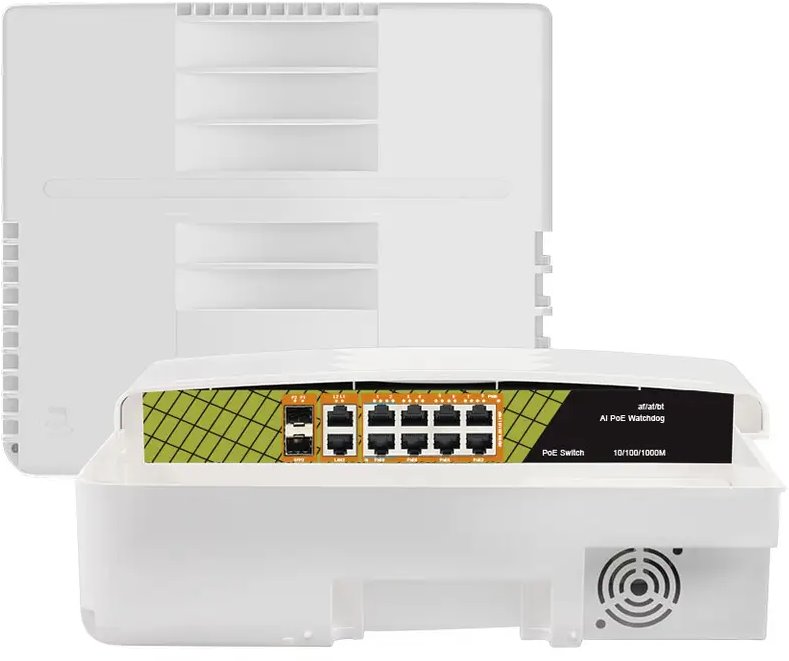

Conexpro GNT-P1012G6-F, Outdoor PoE switch, 10x LAN, 8x PoE, 2x SFP

Gigabit PoE switch hidden together with the source in an outdoor chassis, IP65 protection, without management with 10x Gigabit ports is an ideal PoE switch for outdoor installations and power up to 8 devices (camera/Wi-Fi AP). The switch offers quiet fanless operation, 10x 10/100/1000 Mbps + 2x Gigabit SFP uplink, of which all 8 ports support the ... More information

ManufacturerConexpro

PNGNT-P1012G6-F

EAN0710497560306

Where to buy Ask a question

Product description Download2 Technical parameters

Product description

Gigabit PoE switch hidden together with the source in an outdoor chassis, IP65 protection, without management with 10x Gigabit ports is an ideal PoE switch for outdoor installations and power up to 8 devices (camera/Wi-Fi AP). The switch offers quiet fanless operation, 10x 10/100/1000 Mbps + 2x Gigabit SFP uplink, of which all 8 ports support the PoE function (802.3af/at, 30W/port, port no. 1 and 2 even supports 802.3af/at/bt - 60W/port) with a total PoE budget of 120W and power supply via a 230V AC connector thanks to the built-in power supply. The entire outdoor chassis can be attached to a wall or to a mast with metal tightening straps.

Key Features

(10) 10/100/1000 Mbps LAN + (2) Gigabit SFP
230V AC power supply
(6) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
PoE budget 120W
Plastic chassis with IP65
Silent operation without fans
PoE watchdog
Dimensions 310 x 260 x 100 mm
Possibility of installation on the wall and mast

Package contents

Device with resource

Do you have a question or comment about this product?

Ask a question

Download

Datasheet QSG

Technical parameters

Connectors and interfaces

LAN speed(10) 10/100/1000Mbps

Optical interfaces(2) 1000Mbps

Power

Power typeMains power (230V)

PoE typePoE-Out (only)

PoE-Out standards802.3af, 802.3at, 802.3bt

PoE Out ports8

PoE budget [W]120

Max. power consumption [W]120

Power via connector/terminal230V AC

Physical characteristics

Protection classIP65

DesignOn the mast, On the wall

PurposeOutdoor

FansWithout fan

Chassis designPlastic

Operating temperature [°C]-30 up to 60

Depth [mm]100

Height [mm]260

Width [mm]310

General

Switchning capacity [Gbps]24

MAC address table8000
