Conexpro GNT-P1006GA, PoE switch, 5x LAN, 4x PoE, 1x SFP

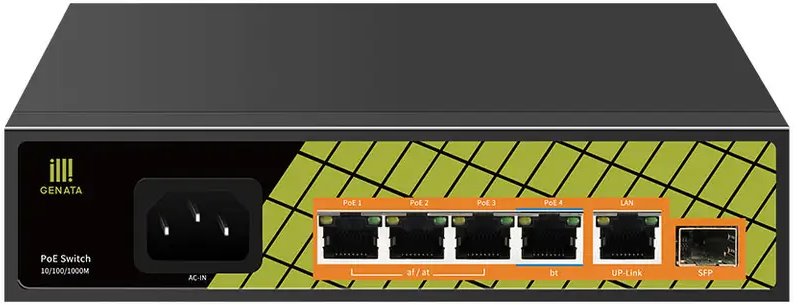

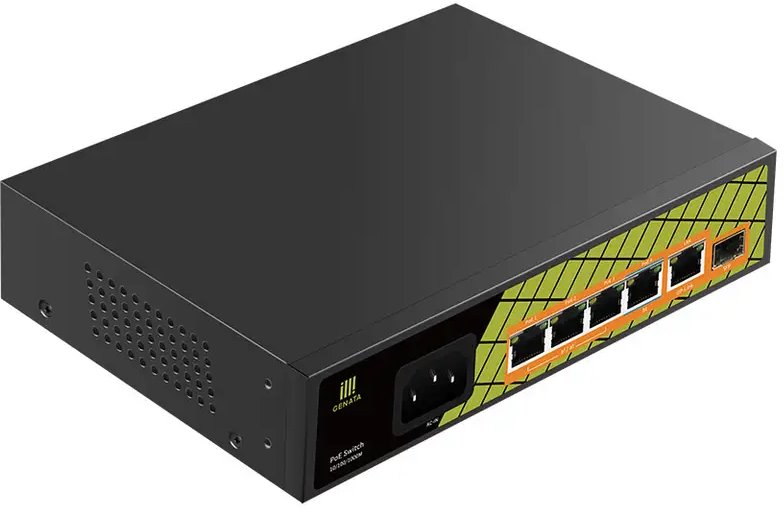

Gigabit PoE switch in a metal chassis, without management with 5x Gigabit ports and one Gigabit SFP, the device is intended for places with an optical connection and is suitable for power up to 4 devices (camera/Wi-Fi AP). The Switch offers silent fanless operation, 5x 10/100/1000 Mbps + 1x Gigabit SFP uplink, of which 4 LAN ports support the PoE ... More information

ManufacturerConexpro

PNGNT-P1006GA

EAN0710497560207

Where to buy Ask a question

Product description Download2 Technical parameters

Product description

Gigabit PoE switch in a metal chassis, without management with 5x Gigabit ports and one Gigabit SFP, the device is intended for places with an optical connection and is suitable for power up to 4 devices (camera/Wi-Fi AP). The Switch offers silent fanless operation, 5x 10/100/1000 Mbps + 1x Gigabit SFP uplink, of which 4 LAN ports support the PoE function (802.3af/at, 30W/port, port No. 4 even supports 802.3af/at/bt - 60W/port) with a total PoE budget of 65W, low internal consumption and power supply via a 230V AC connector thanks to the built-in power supply.

Key Features

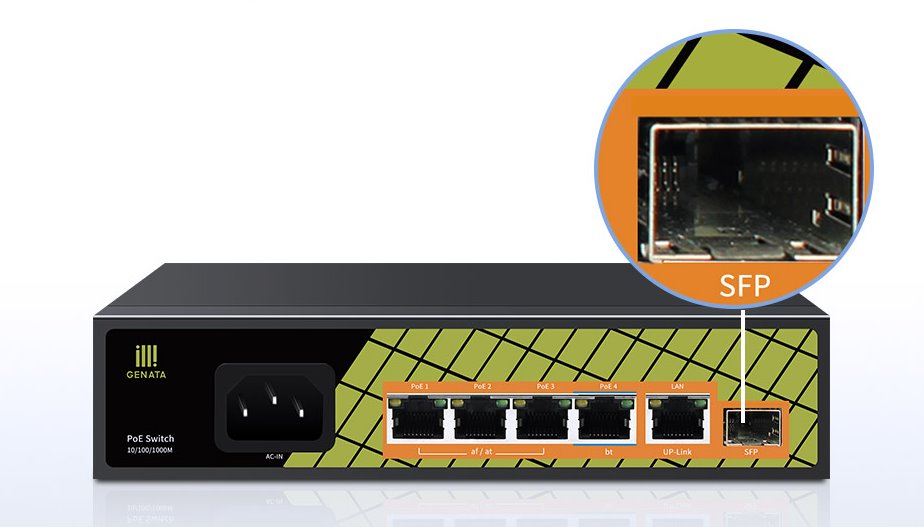

(5) 10/100/1000 Mbps LAN + (1) Gigabit SFP
230V AC power supply
(3) 802.3af/at PoE (30W/port) + (1) 802.3af/at/bt PoE (60W/port)
PoE budget 65W
Robust metal chassis
Silent operation without fans
PoE watchdog
Dimensions 187 x 139 x 43mm

Package contents

Device
Power cord

Do you have a question or comment about this product?

Ask a question

Download

Datasheet QSG

Technical parameters

Connectors and interfaces

LAN speed(5) 10/100/1000Mbps

Power

Power typeMains power (230V)

PoE typePoE-Out (only)

PoE-Out standards802.3af, 802.3at, 802.3bt

PoE Out ports4

PoE budget [W]65

Max. power consumption [W]65

Power via connector/terminal230V AC

Physical characteristics

DesignOn the wall, Desktop

PurposeIndoor

FansWithout fan

Chassis designMetal

Operating temperature [°C]-10 up to 55

Height [mm]43

Depth [mm]139

Width [mm]187

General

Switchning capacity [Gbps]12

MAC address table8000
